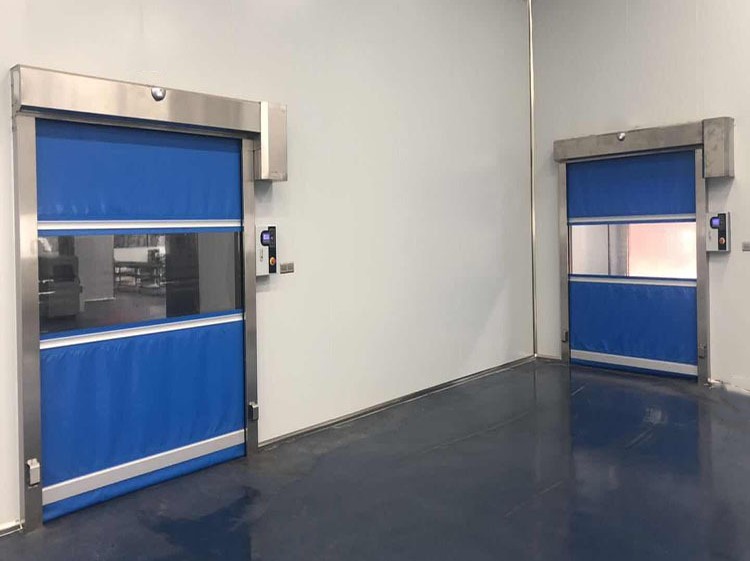

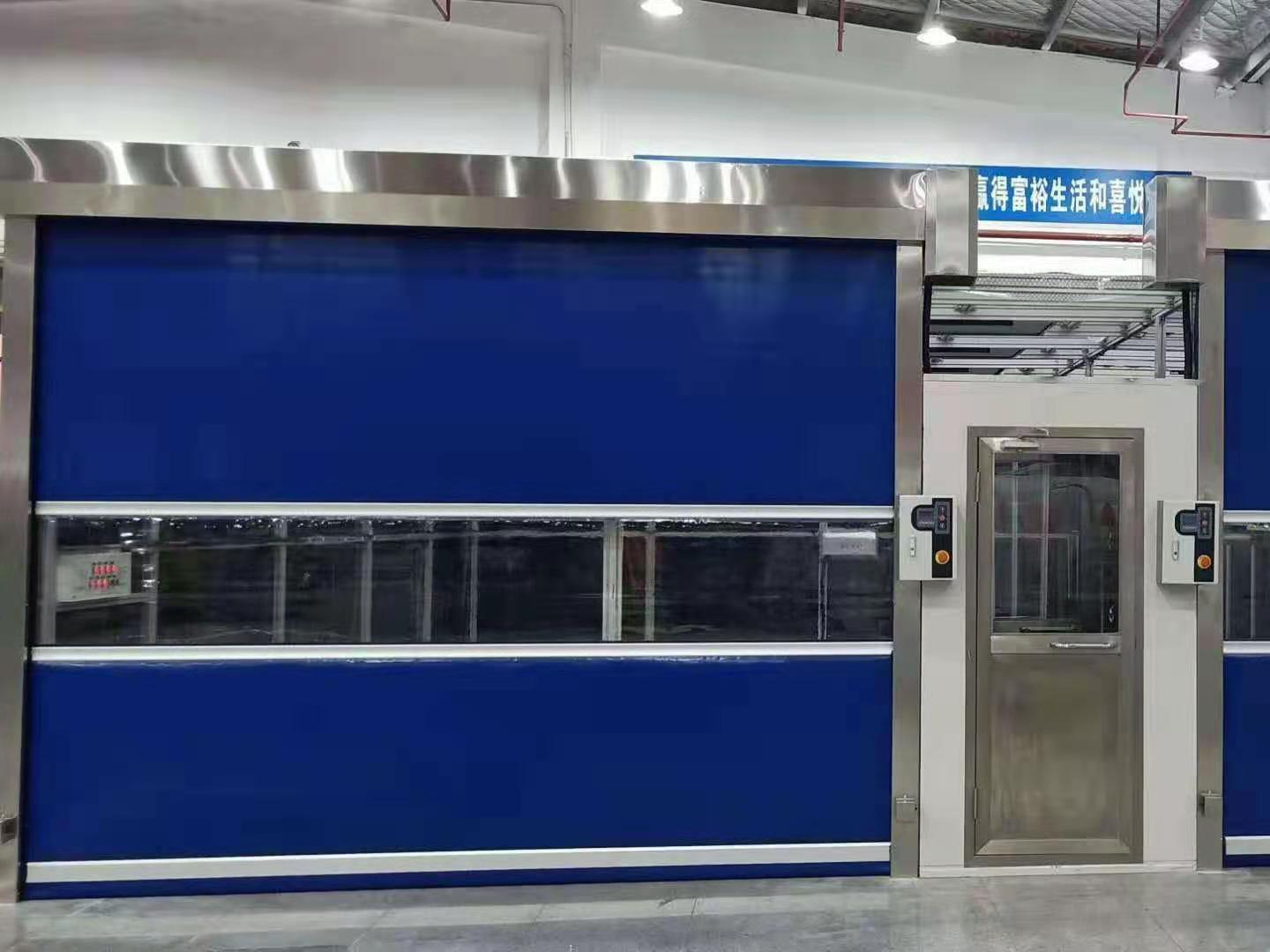

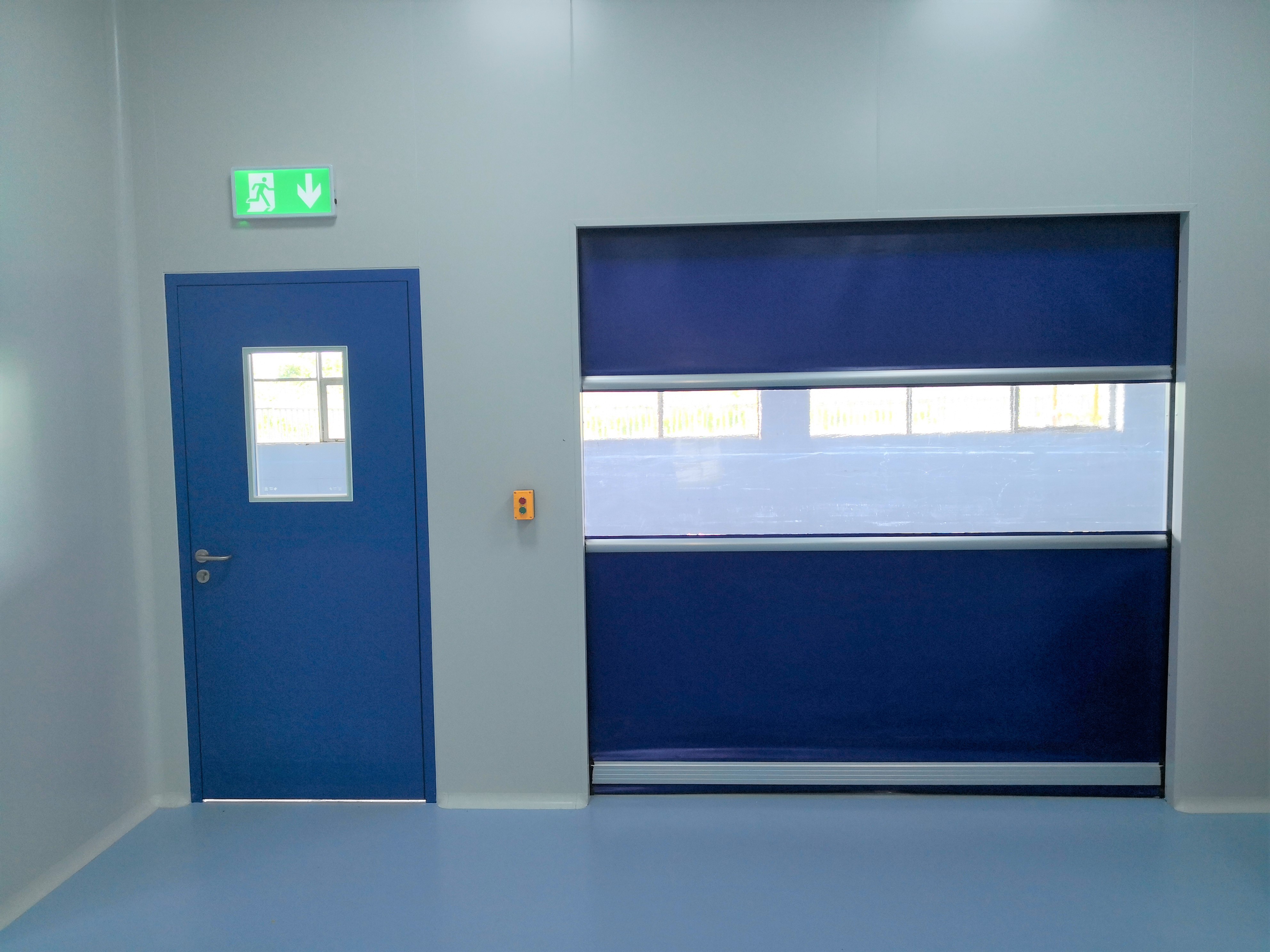

Clean Room High Speed Roller Shutter Door

Short Description:

Roller shutter door is an industrial door that can be quickly lifted and lowered. It is called PVC high speed door because its curtain material is high-strength and environmentally friendly polyester fiber, commonly known as PVC. It has a door head roller box at the top of the roller shutter door. During rapid lifting, the PVC door curtain is rolled into this roller box, occupying no extra space and saving space. In addition, the door can be quickly opened and closed, and the control methods are also diverse. Therefore, the PVC high speed roller shutter door has become a standard configuration for modern enterprises.

Opening Size: customized

Running Speed: 0.5~1.1m/s(Adjustable)

Door Cloth: PVC

Door Frame Material: powder coated steel plate/stainless steel(Optional)

Control Method: photoelectric switch, radar induction, remote control, etc


Product Detail

Product Tags

Product Description

roller shutter door
high speed door

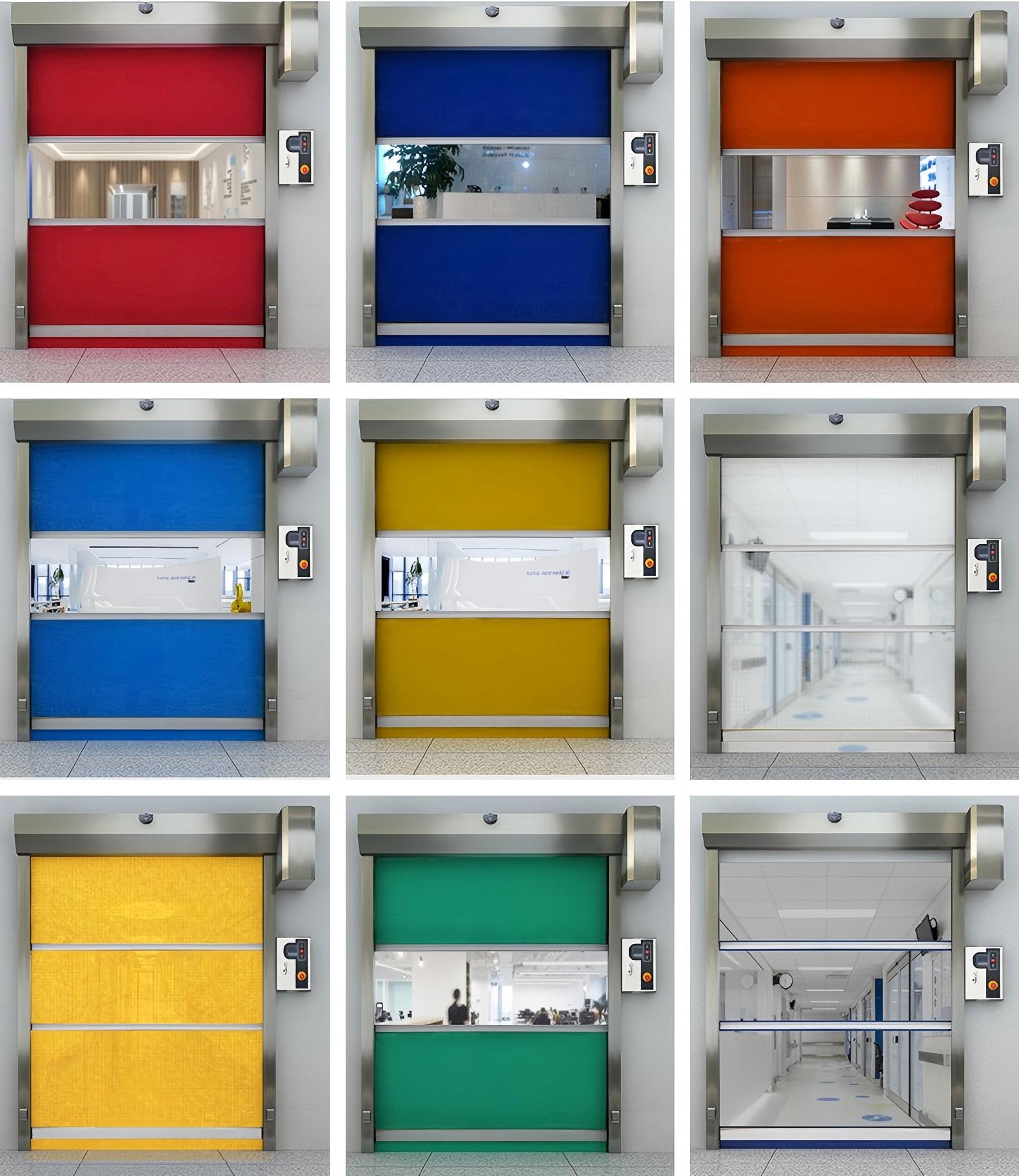

The roller shutter door adopts newly servo control system to achieve various control function such as door opening slowly, stop slowly, door interlock, etc. And add various kinds of opening method for option such as radar induction, earth induction, photoelectric switch, remote control, door access, button, pull rope, etc. Adopt servo motor to achieve running and stop precise position without electromagnetic brake and achieve ideal opening and closing speed. The door PVC cloth can select different color such as red, yellow, blue, green, grey, etc as required. It is optional to be with or without transparent view window. With double side self-cleaning function, it can be dust and oil proof. The door cloth has special characteristic such as flameproof, waterproof and corrosion resistant. Windproof column has U shaped cloth pocket and can be tightly contact with uneven floor. The slideway has infrared safety device at bottom. When door cloth touch people or cargo go through, it will return back to avoid harm on people or cargo.

Technical Data Sheet

Power Distribution Box

Powever control system, IPM intelligent module

Motor

Powever servo motor, running speed 0.5-1.1m/s adjustable

Slideway

120*120mm, 2.0mm powder coated galvanized steel/SUS304(Optional)

PVC Curtain

0.8-1.2mm, optional color, with/without transparent view window optional

Control Method

Photoelectric switch, radar induction, remote control, etc

Power Supply

AC220/110V, single phase, 50/60Hz(Optional)

Remark: all kinds of clean room products can be customized as actual requirement.

Product Features

Heat insulated, windproof, fireproof, insect prevention, dust prevention;
High running speed and high reliability;
Smooth and safe running, without noise;
Preassembled components, easy to install.

Application

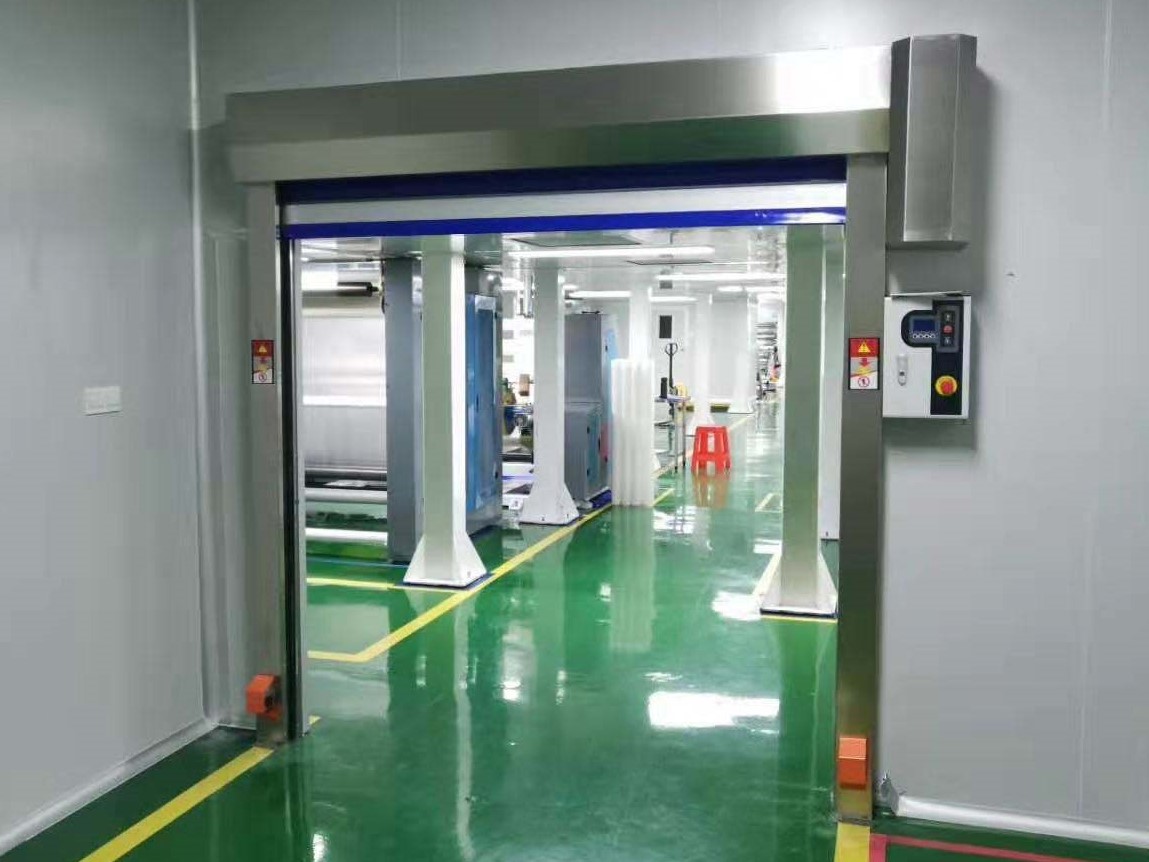

Widely used in pharmaceutical industry, laboratory, electronic industry, food industry, etc.
