CE Certificated Clean Room Centrifugal Fan Blower

Short Description:

All kinds of small centrifugal fan blower are available for all clean equipment such as FFU, air shower, pass box, laminar flow cabinet, laminar flow hood, biosafety cabinet, weighing booth, dust collector, etc and HVAC equipment such as AHU, etc and even some kinds of machinery such as food machinery, environmental machinery, printing machinery, etc. AC fan and EC fan are optional. AC220V, single phase and AC380V, three phase are available.

Type: AC fan/EC fan(Optional)

Air Volume: 600~2500m3/h

Total Pressure: 250~1500Pa

Power: 90~1000W

Rotate Speed: 1000~2800r/min


Product Detail

Product Tags

Product Description

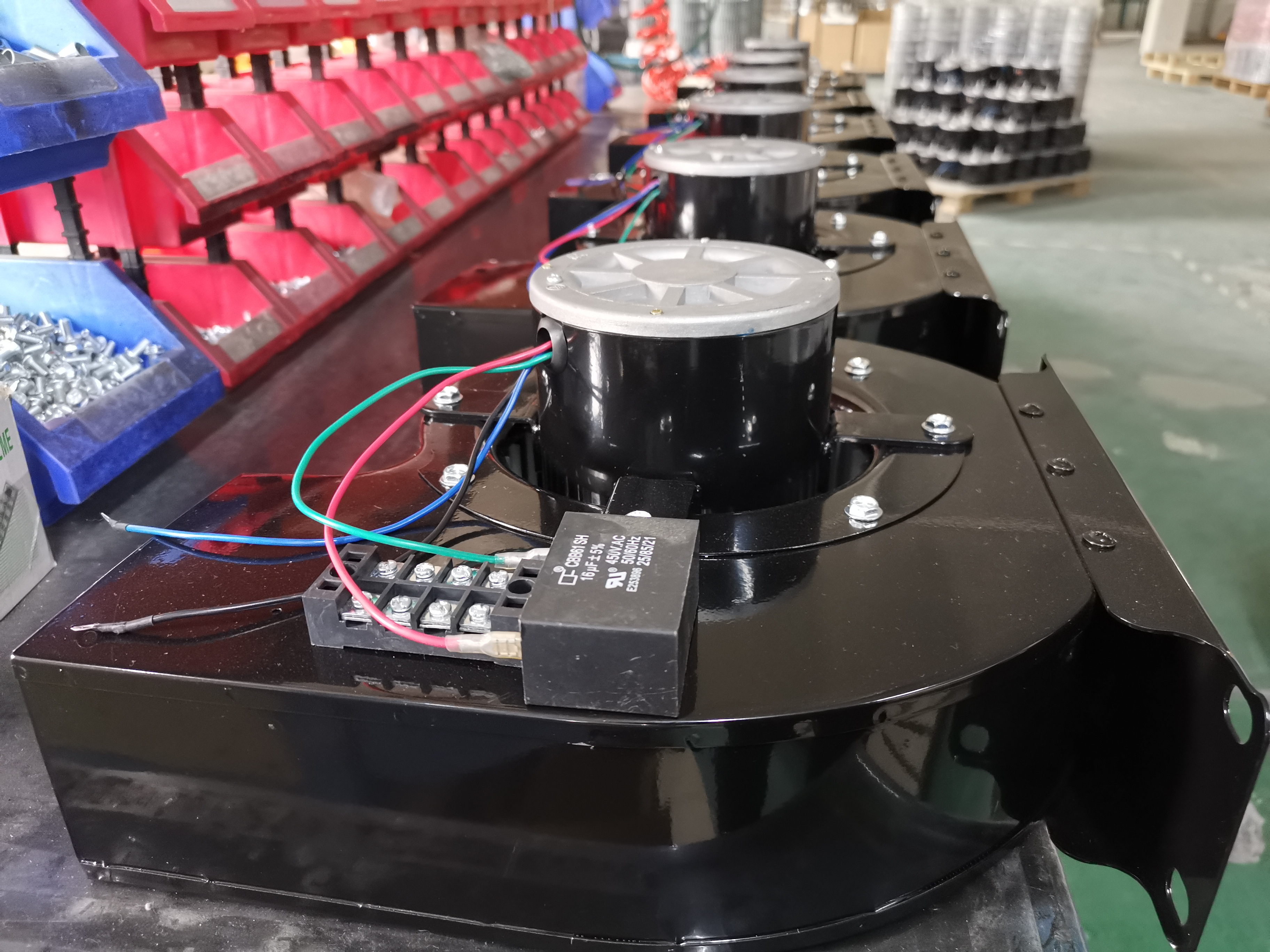

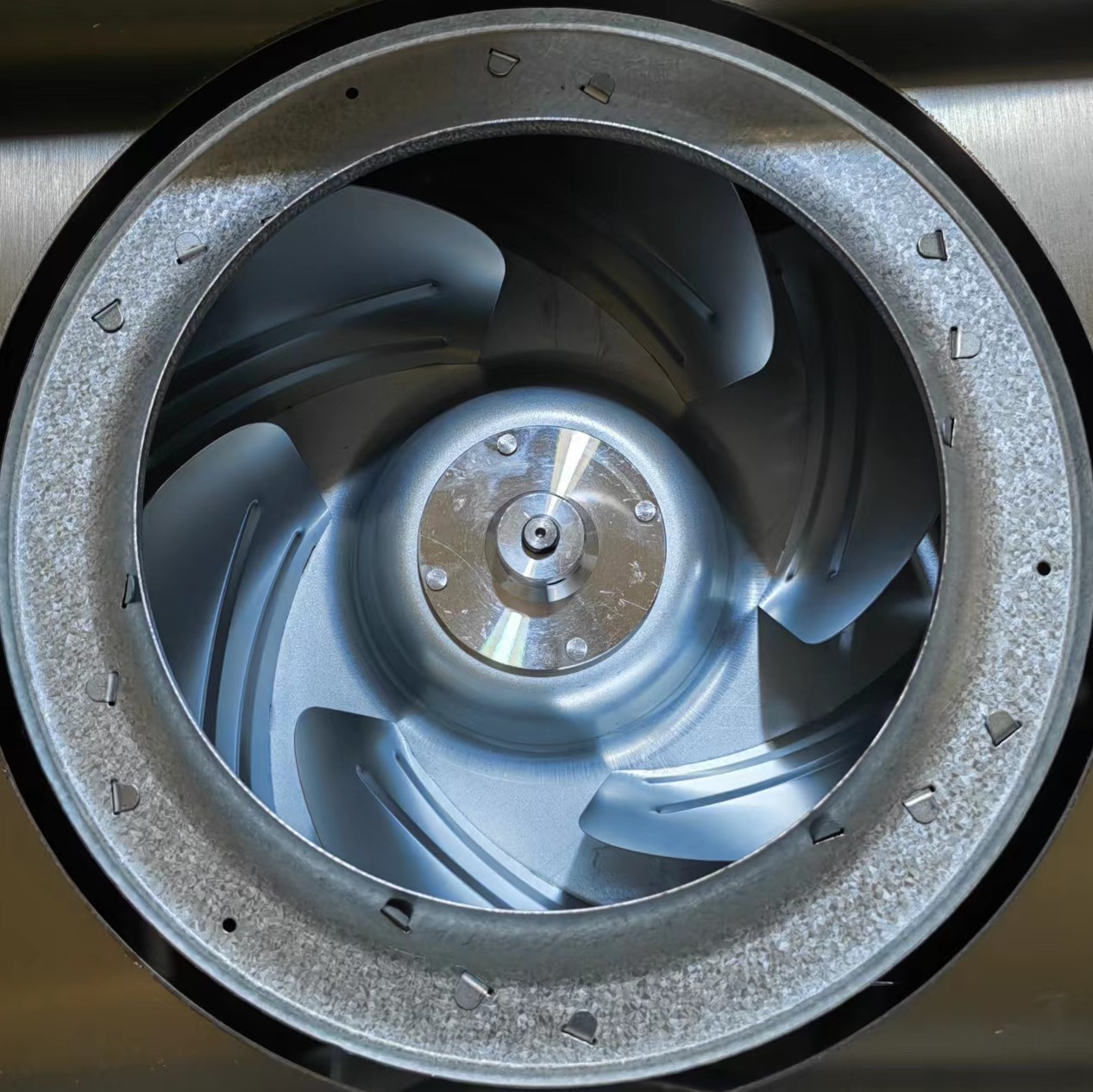

centrifugal fan

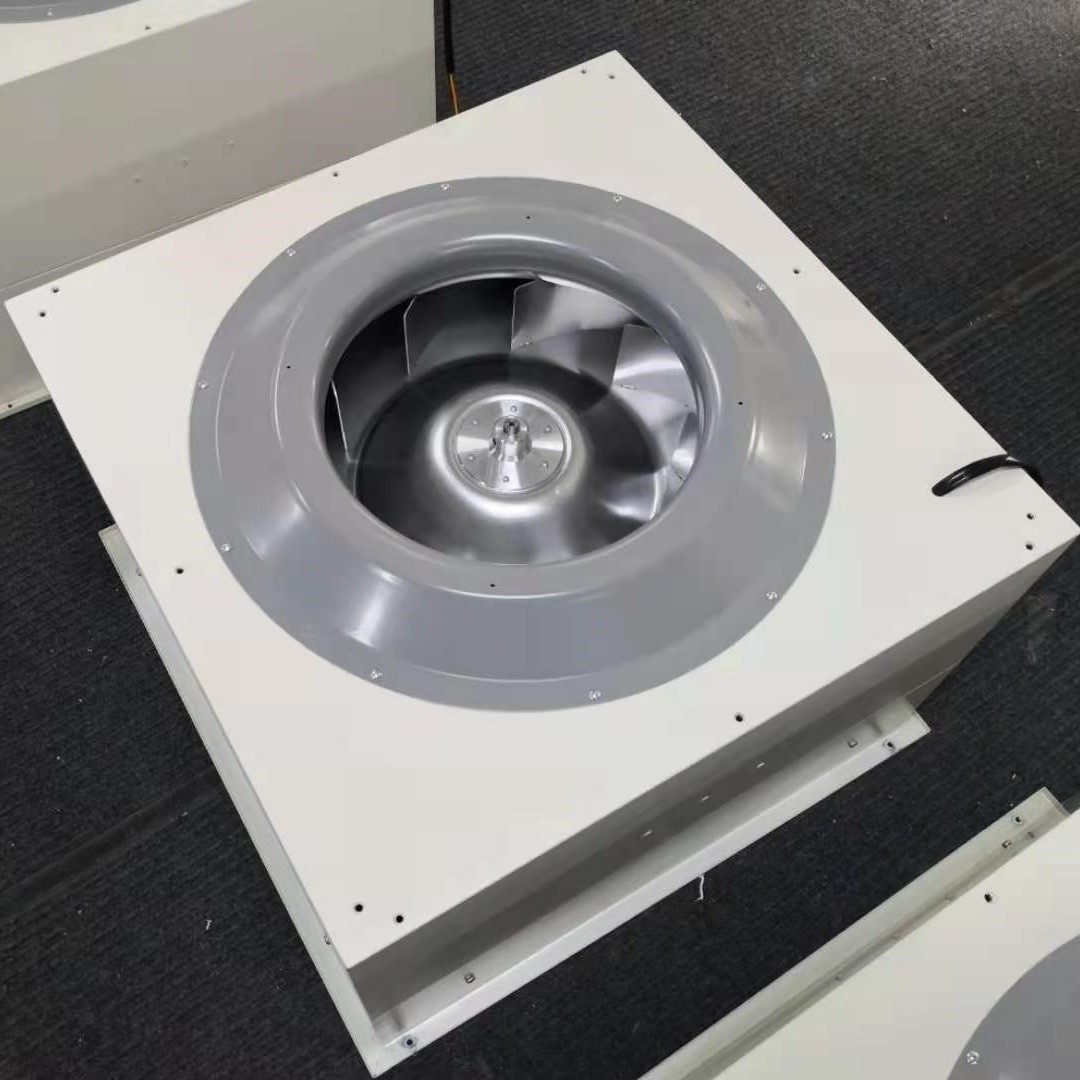

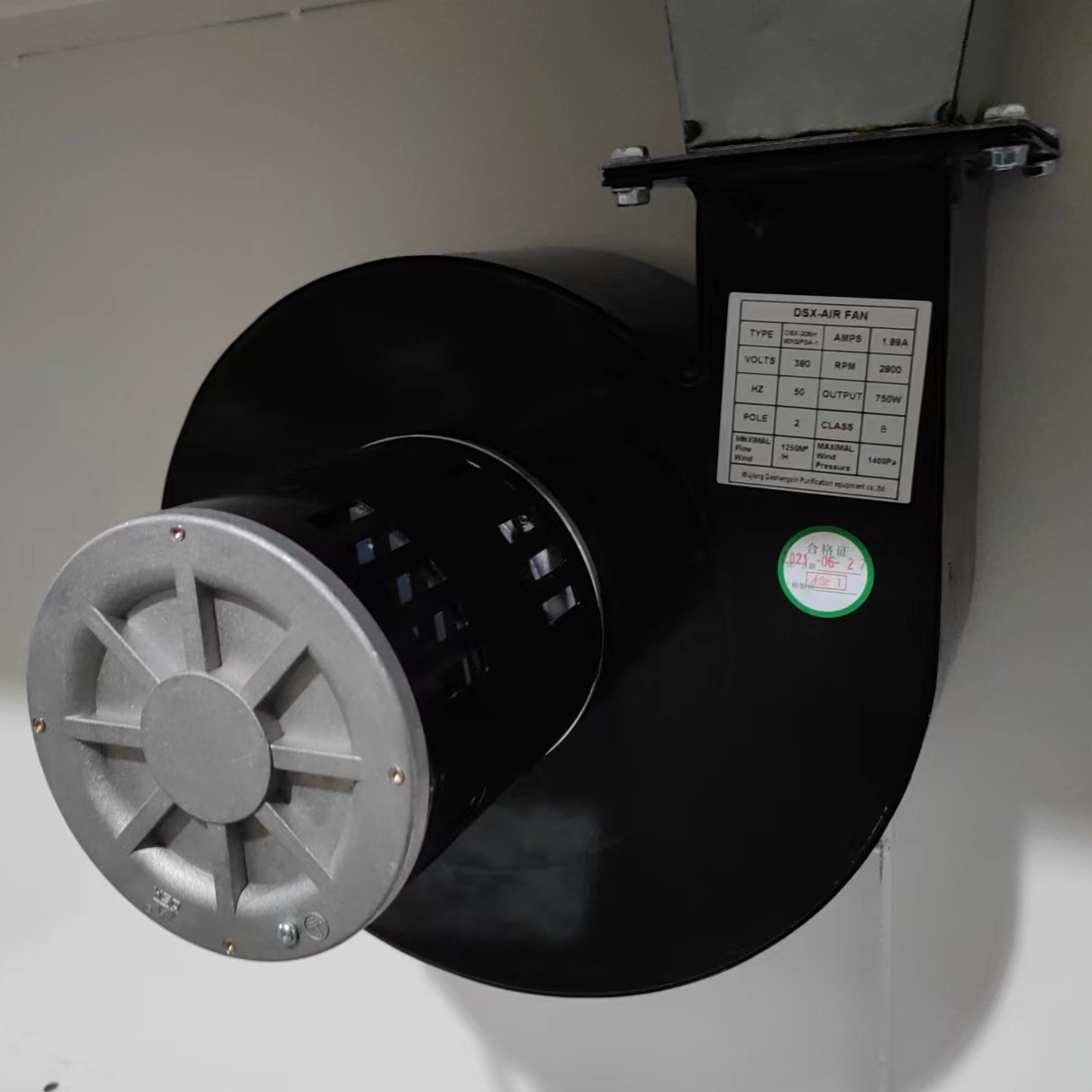

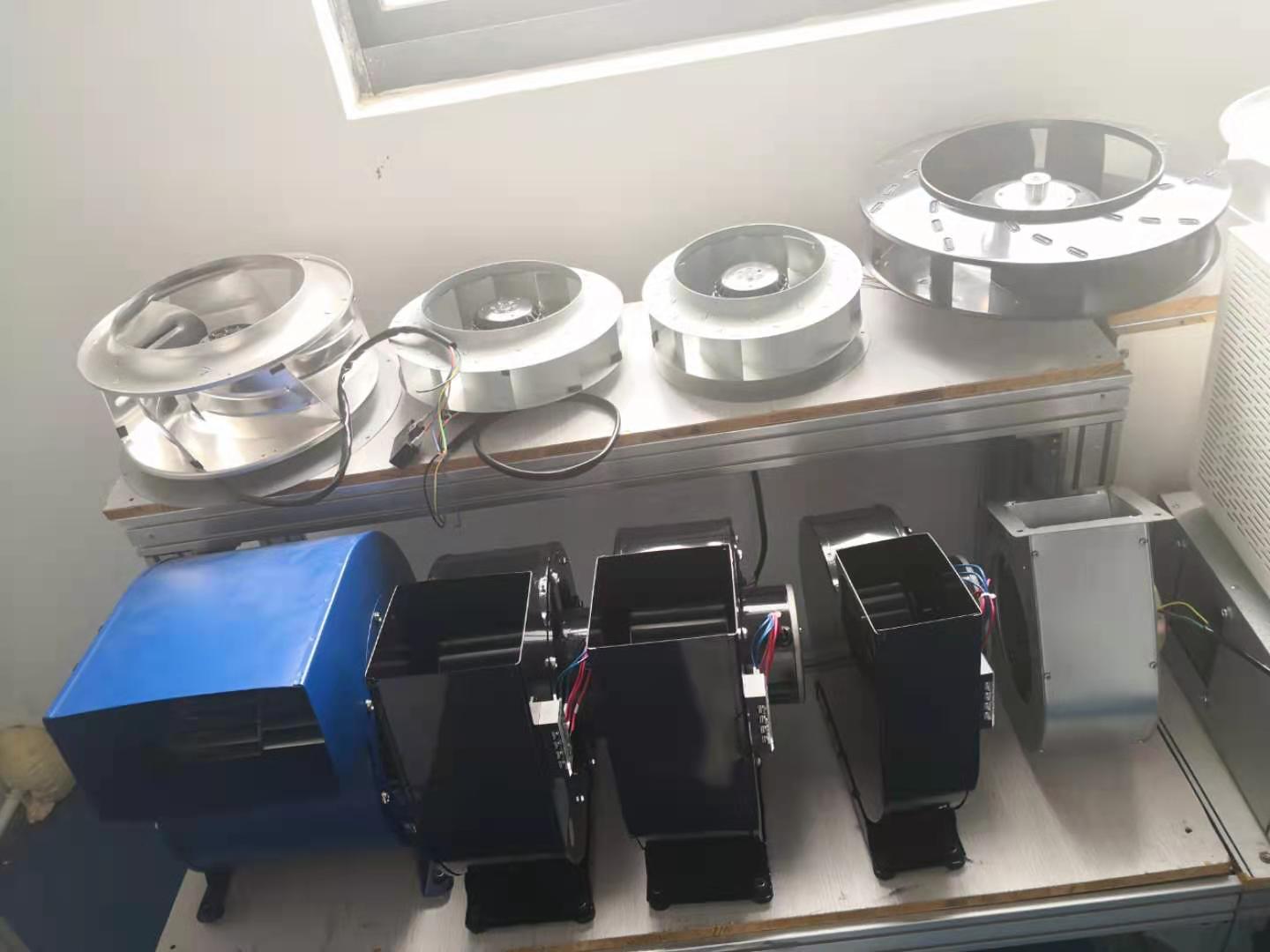

clean room fan

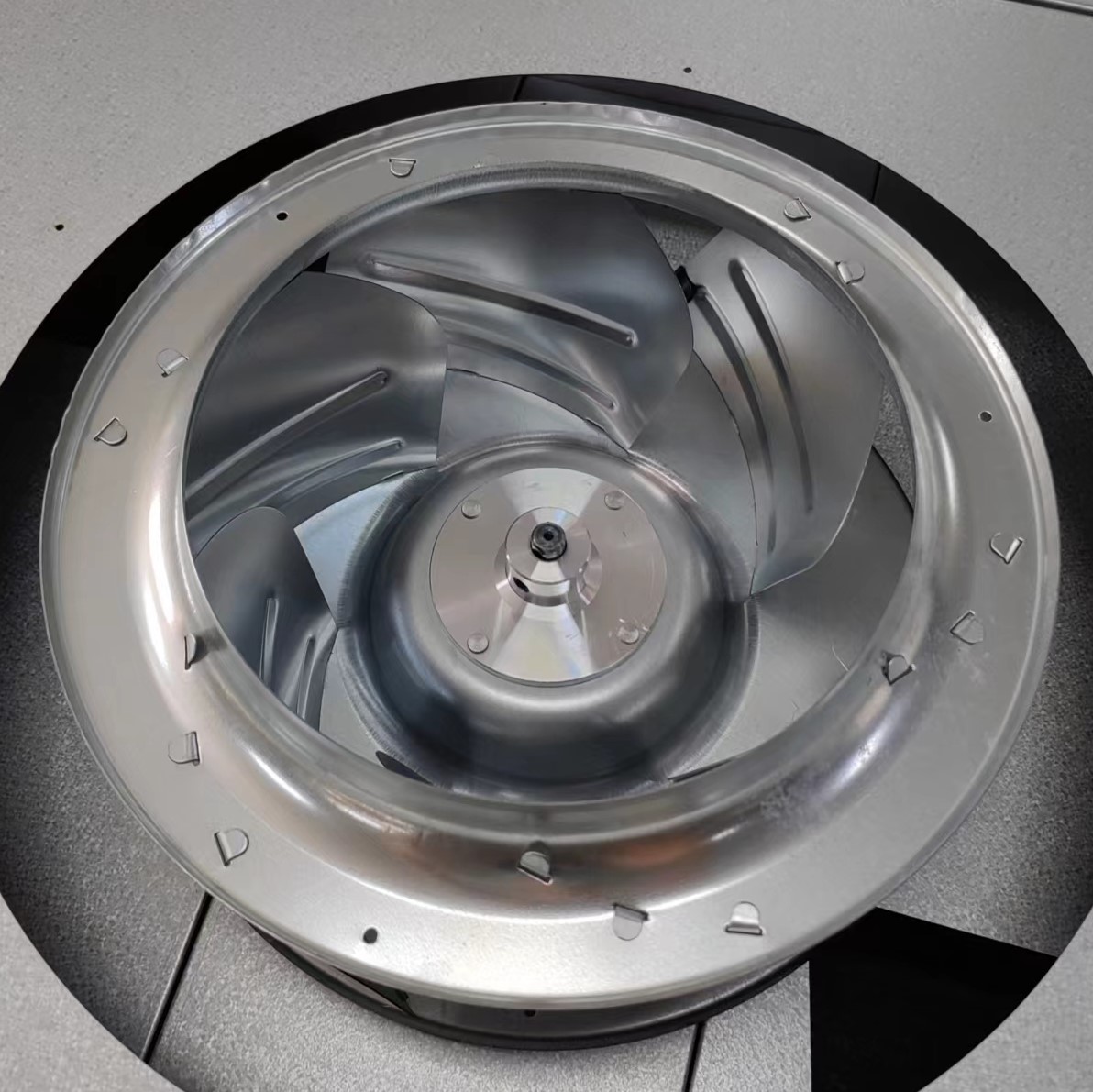

Centrifugal fan has nice appearance and compact structure. It is a kind of variable air flow and constant air pressure device. When rotate speed is constant, air pressure and air flow curve should be a straight line theoretically. Air pressure is largely affected by its inlet air temperature or air density. When it is constant air inflow, the lowest air pressure is related to the highest inlet air temperature(the lowest air density). The backward curves are provided to show the relationship in between air pressure and rotate speed. The overall size and installation size drawings are available. The test report is also provided about its appearance, resistant voltage, insulated resistance, voltage, currency, input power, rotate speed, etc.

Technical Data Sheet

Model

Air Volume

(m3/h)

Total Pressure (Pa)

Power  (W)

Capacitance (uF450V)

Rotate Speed (r/min)

AC/EC Fan

SCT-160

1000

950

370

5

2800

AC Fan

SCT-195

1200

1000

550

16

2800

SCT-200

1500

1200

600

16

2800

SCT-240

2500

1500

750

24

2800

SCT-280

900

250

90

4

1400

SCT-315

1500

260

130

4

1350

SCT-355

1600

320

180

6

1300

SCT-395

1450

330

120

4

1000

SCT-400

1300

320

70

3

1200

SCT-EC195

600

340

110

/

1100

EC Fan

SCT-EC200

1500

1000

600

/

2800

SCT-EC240

2500

1200

1000

/

2600

SCT-EC280

1500

550

160

/

1380

SCT-EC315

1200

600

150

/

1980

SCT-EC400

1800

500

120

/

1300

 Remark: all kinds of clean room products can be customized as actual requirement.

Product Features

Low noise and small vibration;

Big air volume and high air pressure;

High efficiency and long service life;

Various model and support customization.

Application

Widely used in clean room industry, HVAC system, etc.

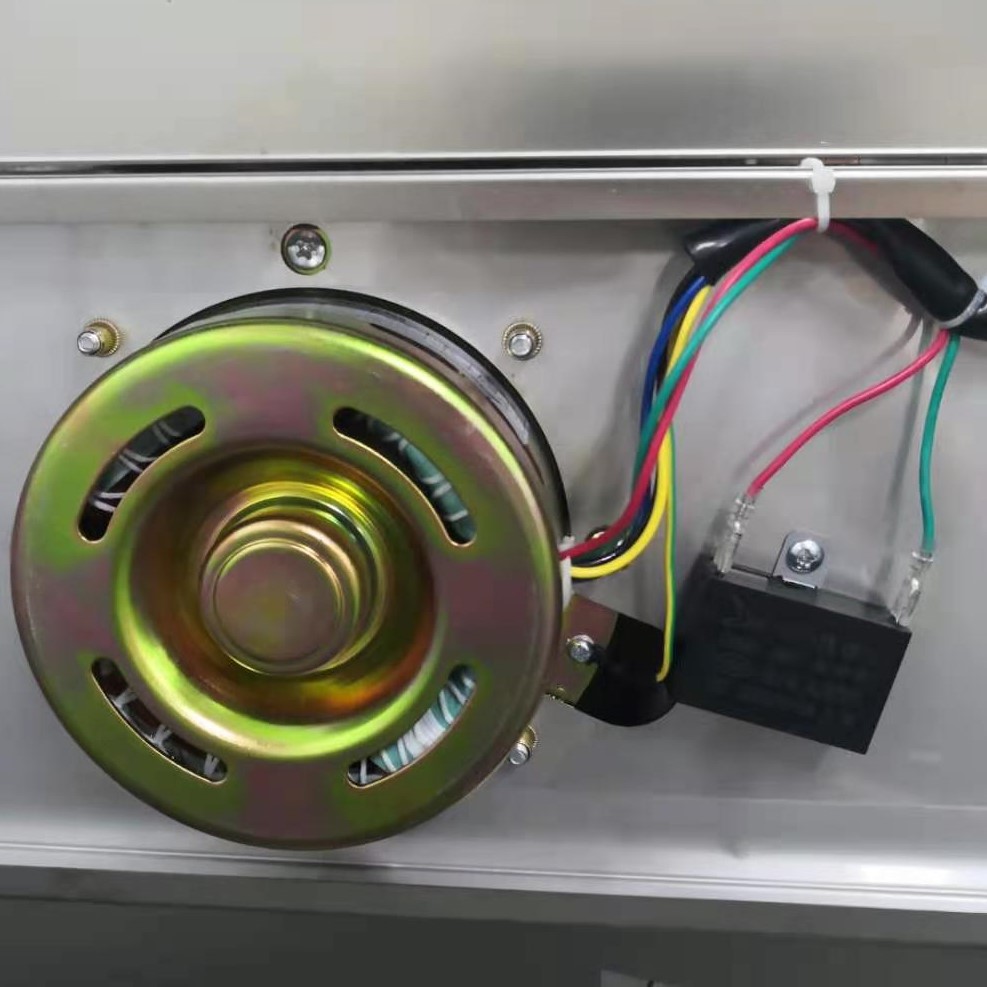

ffu fan

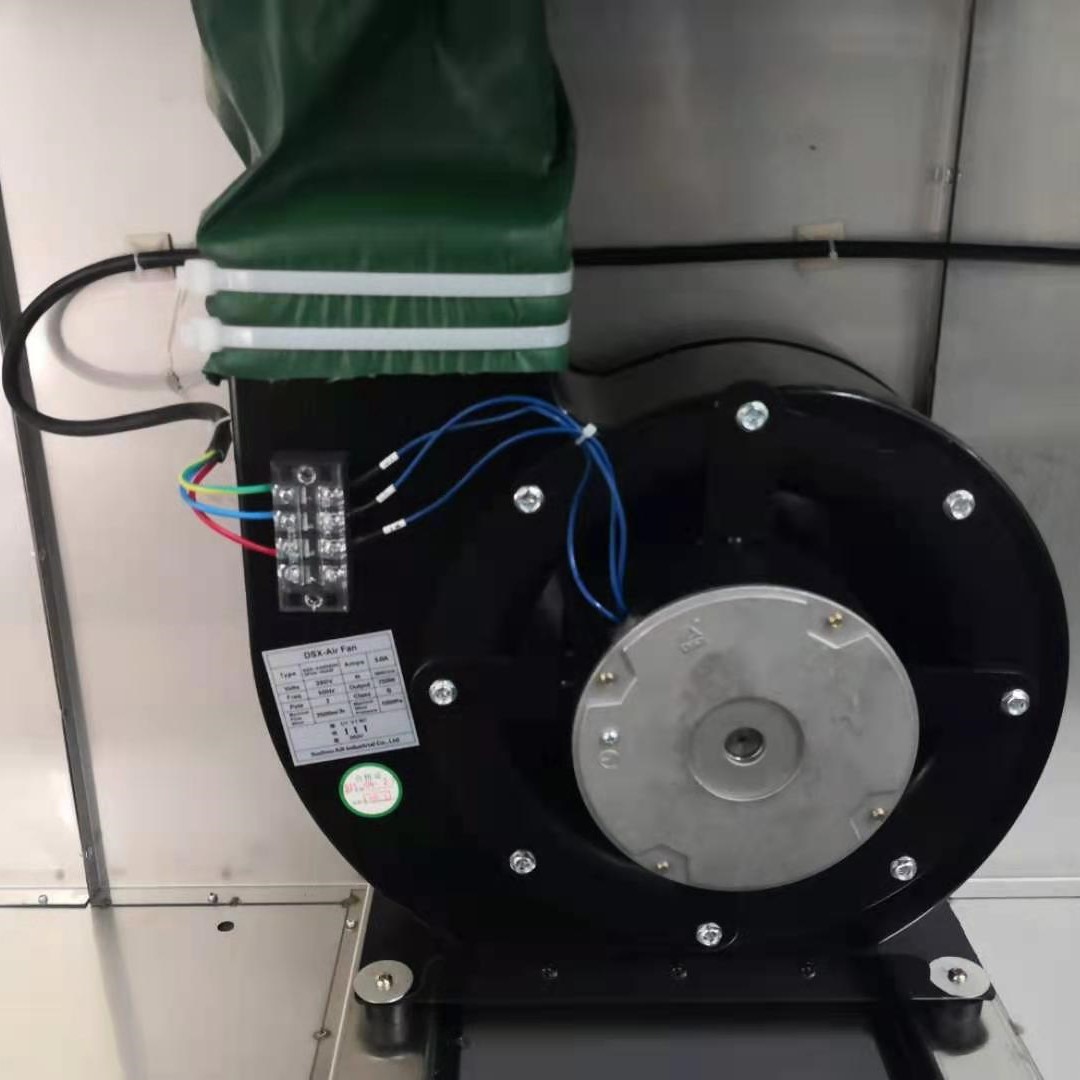

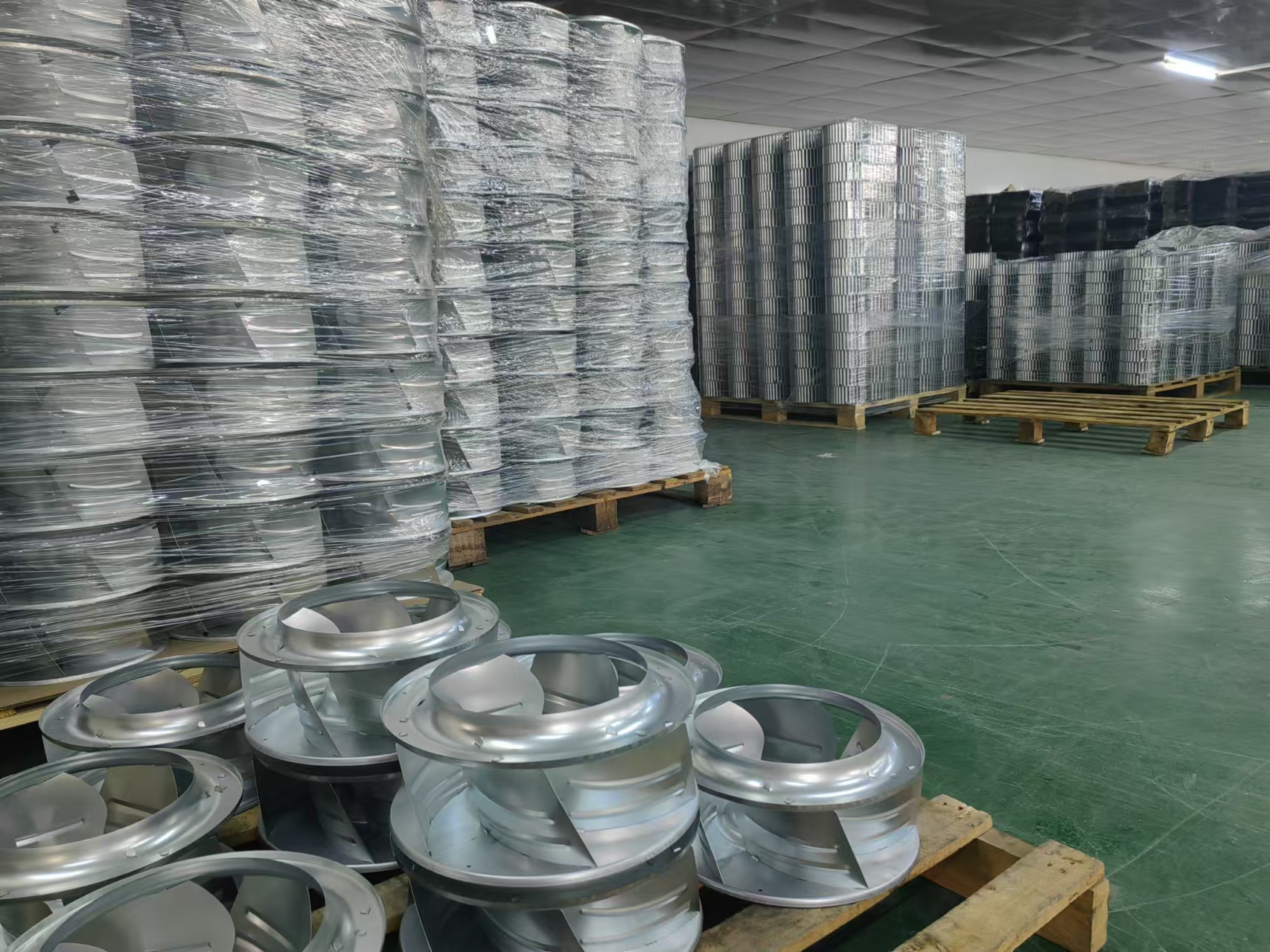

air shower fan
