CE Standard Modular Clean Room LED Panel Light

Short Description:

LED panel light is a kind of the most normal clean room light and it is compromised of high-quality nanothermal spray aluminum profile frame, guide panel, diffuser panel, light driver, etc. Plug-and-pull type connection and optimized power driver design. Very easy installation procedure. Make a small hole 10~20mm through ceiling and connect lighting wires through hole. Then use screws to fix light panel with ceilings and connect lighting wires with light driver. Rectangular and square type are optional as required.

Size: 600*300/600*600*1200*300/1200*600mm(Optional)

Protection Level: IP65

Lamp Body: aluminum profile

Working Temperature: -40~60℃

Working Lifetime: 50000h


Product Detail

Product Tags

Product Description

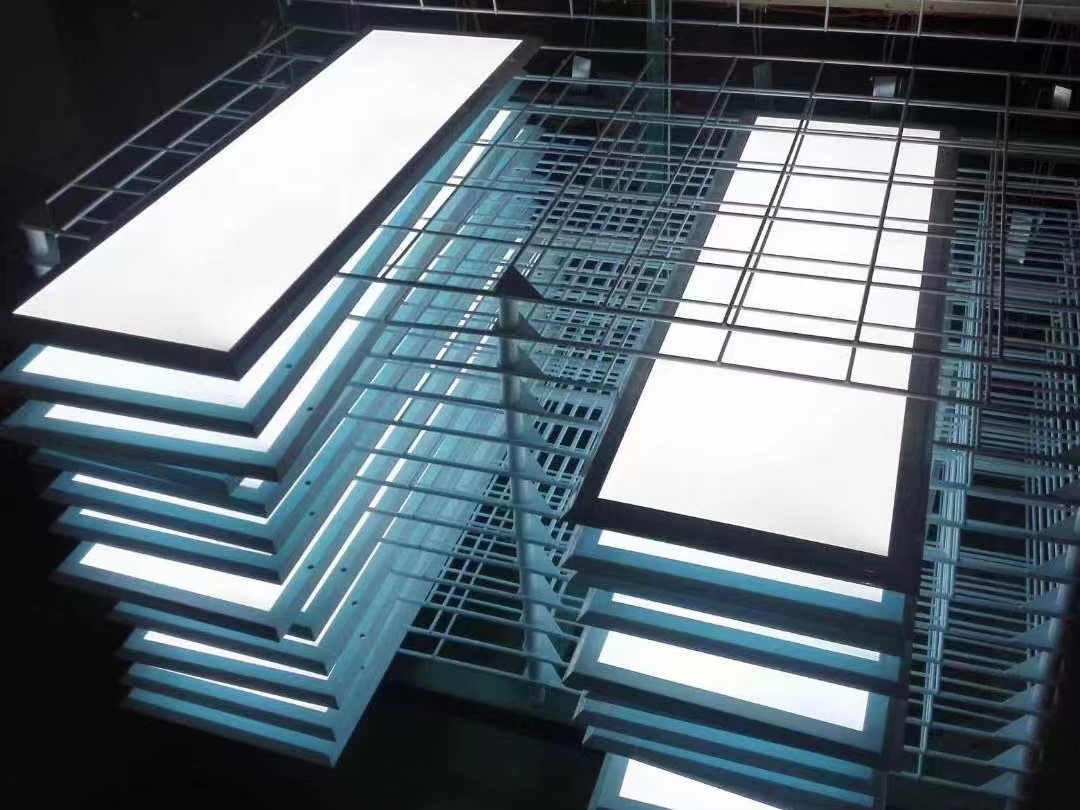

led panel light

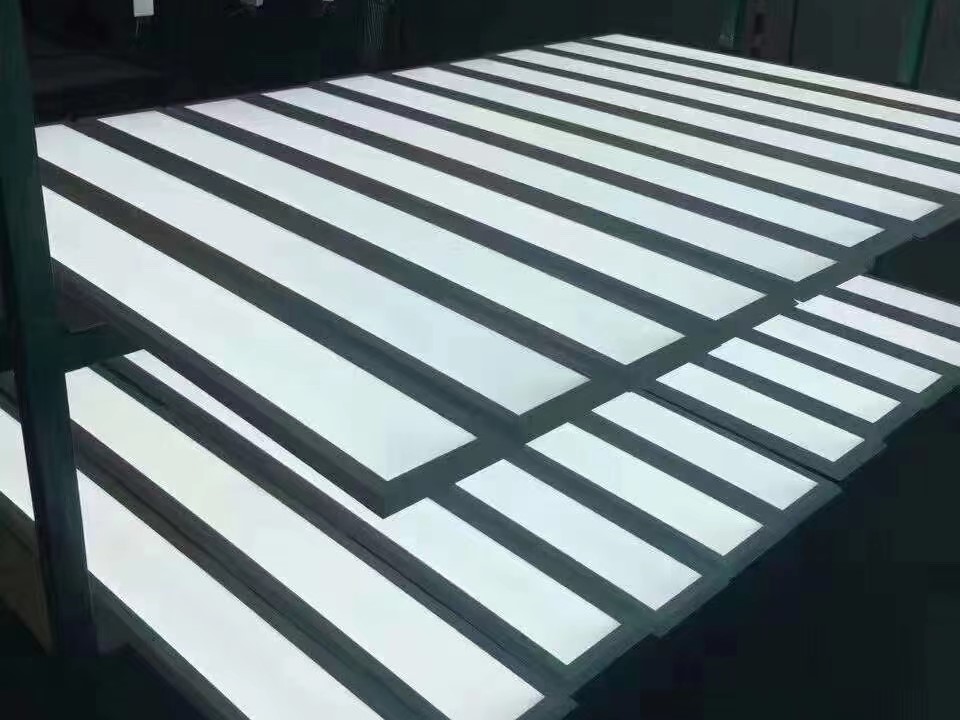

clean room light

LED panel light has very light structure and is very easily installed on ceiling by screws. The lamp body is not easy to scatter,which can prevent insect to enter and keep bright environment. It has excellent characteristic without mercury, infrared ray, ultraviolet ray, electromagnetic interference, heat effect, radiation, stroboflash phenomenon, etc. The bright light is completely emitted from flat surface and wider angle. Specialized circuit design and newly efficient constant current light driver to avoid individual damaged light to affect the whole effect and make sure stable power and safety usage.

Technical Data Sheet

Model

SCT-L2'*1'

SCT-L2'*2'

SCT-L4'*1'

SCT-L4'*2'

Dimension(W*D*H)mm

600*300*9

600*600*9

1200*300*9

1200*600*9

Rated Power(W)

24

48

48

72

Luminous Flux(Lm)

1920

3840

3840

5760

Lamp Body

Aluminum Profile

Working Temperature(℃)

-40~60

Working Lifetime(h)

30000

Power Supply

AC220/110V, Single Phase, 50/60Hz(Optional)

Remark: all kinds of clean room products can be customized as actual requirement.

Product Features

Energey-saving, bright lighting intense;

Durable and safe, long service life;

Lightweight, easy to install;

Dust free, rustroof, corrosion resistant.

Application

Widely used in pharmaceutical industry, laboratory, hospital, electronic industry, etc.

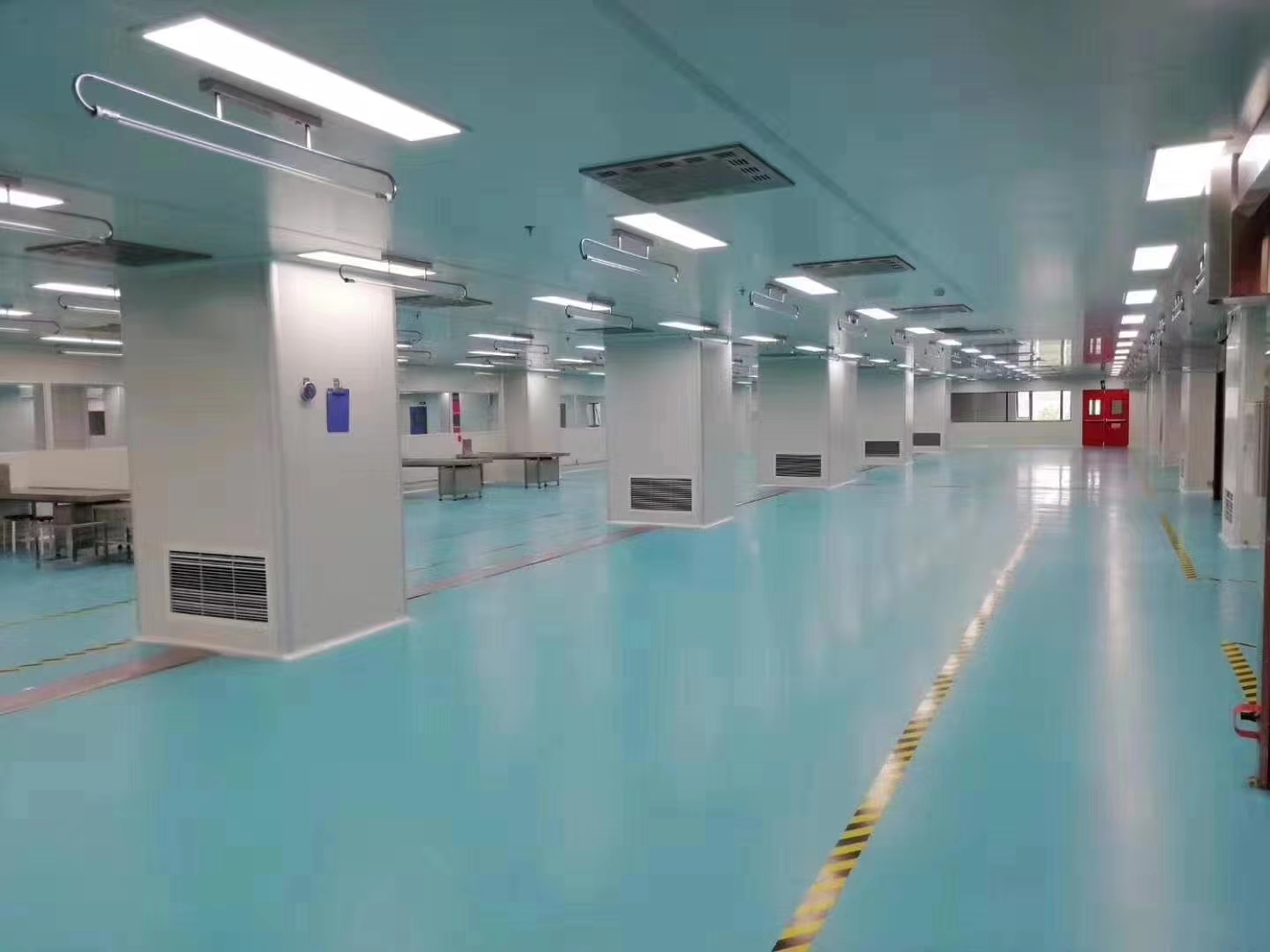

clean room led panel

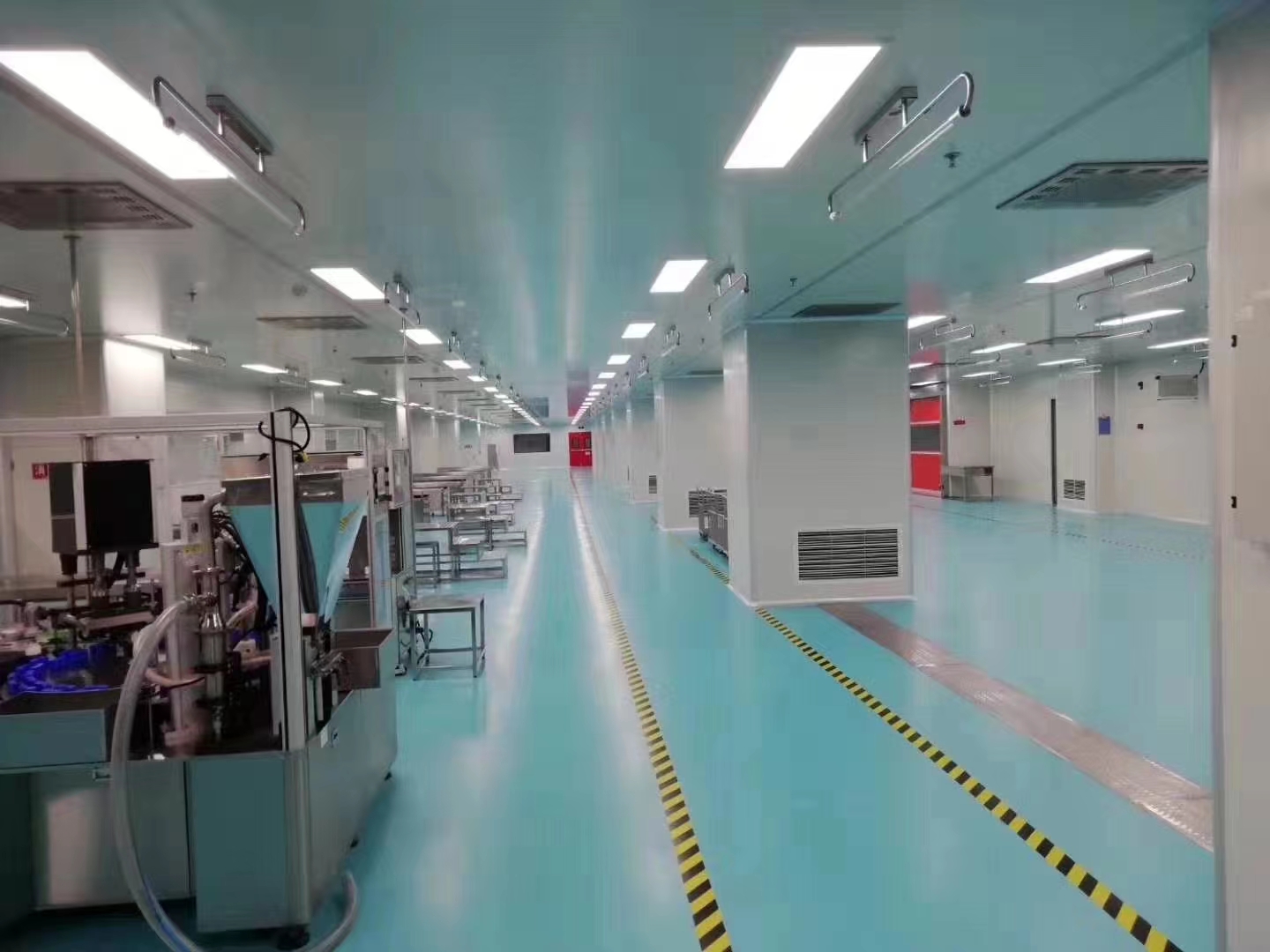

clean room light fixture
