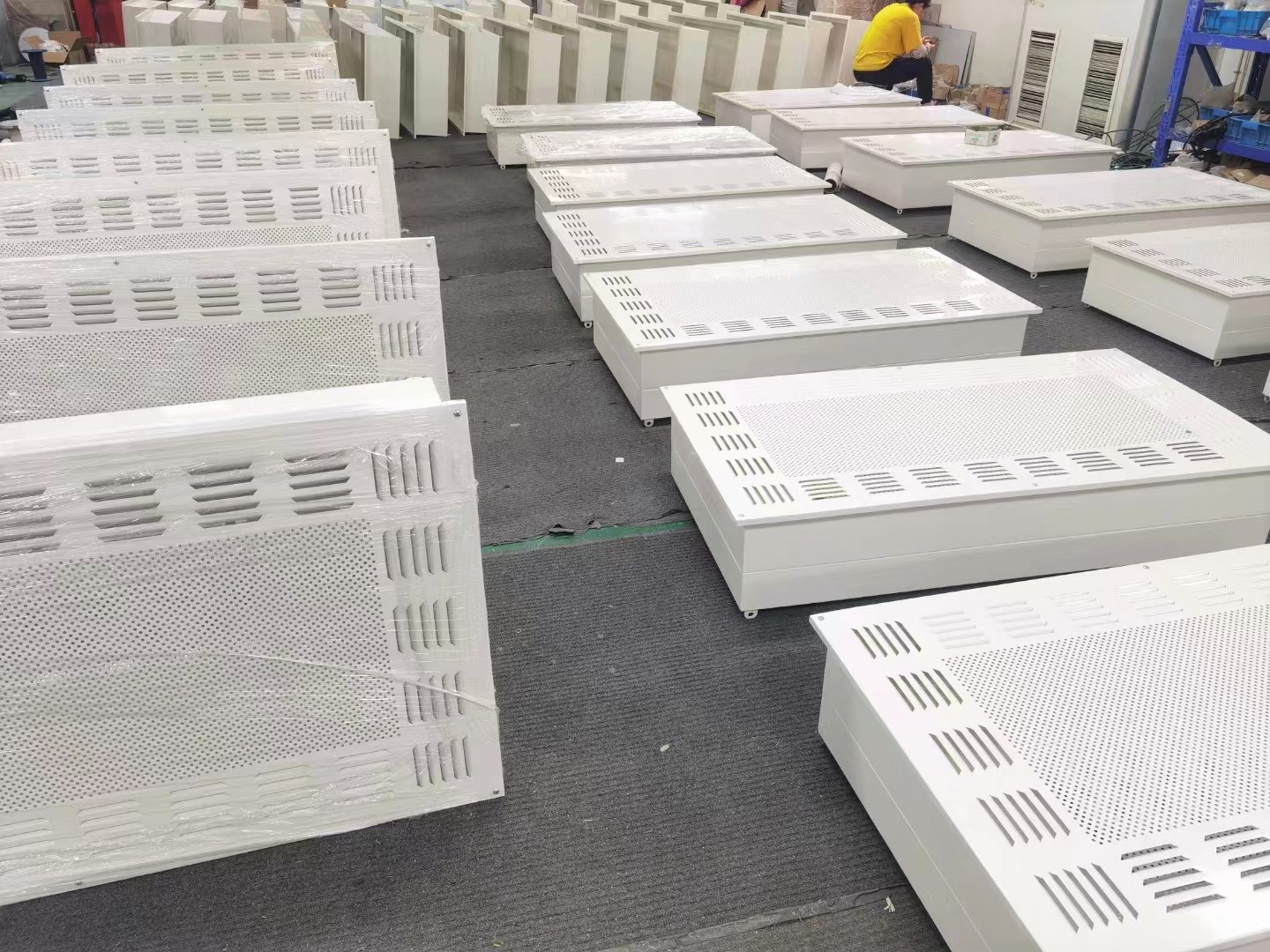

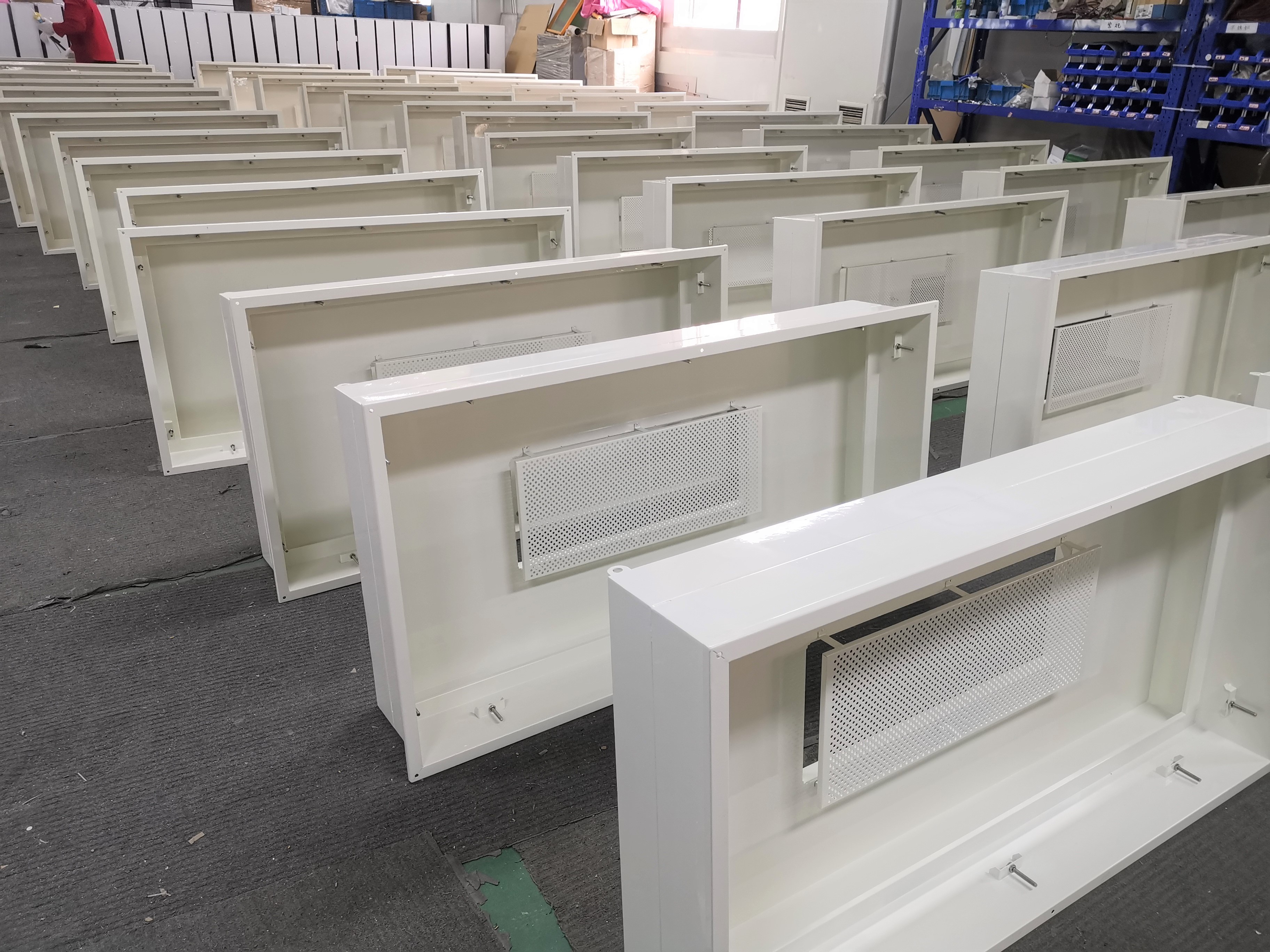

HEPA box is mainly made of hepa filter and electrostatic box to be a integrated body. The electrostatic box is made of powder coated steel plate. The air damper can be installed at the side of air inlet to adjust air flow and static pressure effect. It distributes air very excellently to reduce dead angle in clean area and make sure air purification effect. DOP gel seal hepa box is used to make sure air can obtain ideal static pressure after pass through gel seal heap filter and also make sure hepa filter can be in reasonable use. Gel seal design can increase its airtight and unique characteristic. The gel seal hepa filter can be clipped with U-shaped gel channel to be hermetically sealed.
Model |
External Dimension(mm) |
HEPA Filter Dimension(mm) |
Rated Air Volume(m3/h) |
Air Inlet Size(mm) |
SCT-HB01 |
370*370*450 |
320*320*220 |
500 |
200*200 |
SCT-HB02 |
534*534*450 |
484*484*220 |
1000 |
320*200 |
SCT-HB03 |
660*660*380 |
610*610*150 |
1000 |
320*250 |
SCT-HB04 |
680*680*450 |
630*630*220 |
1500 |
320*250 |
SCT-HB05 |
965*660*380 |
915*610*150 |
1500 |
500*250 |
SCT-HB06 |
1310*680*450 |
1260*630*220 |
3000 |
600*250 |
Remark: all kinds of clean room products can be customized as actual requirement.
Lightweight and compact structure, easy to install;
Reliable quality and strong ventilation performance;
DOP whole seal design available;
Match with hepa filter, easy to replace.

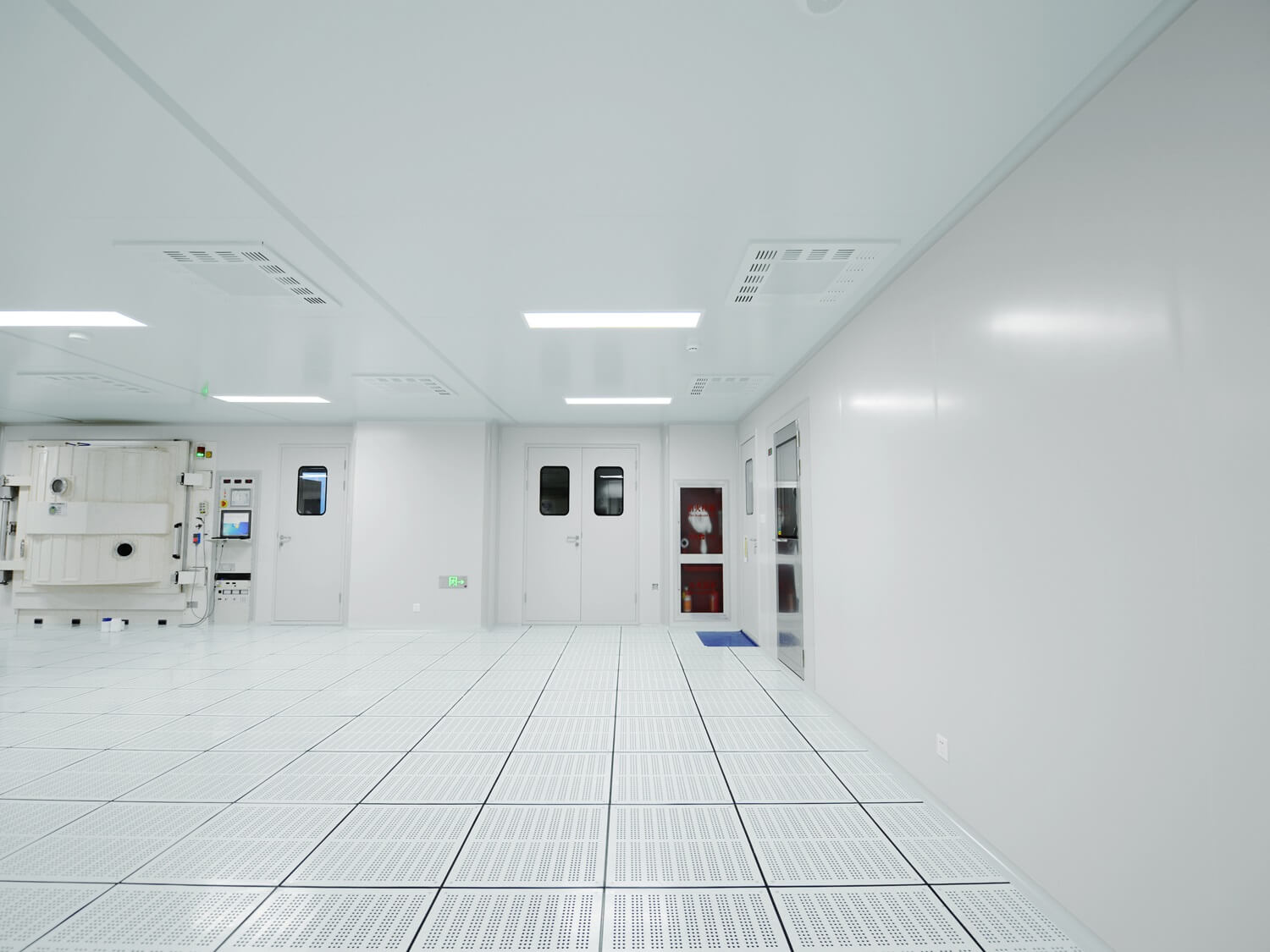

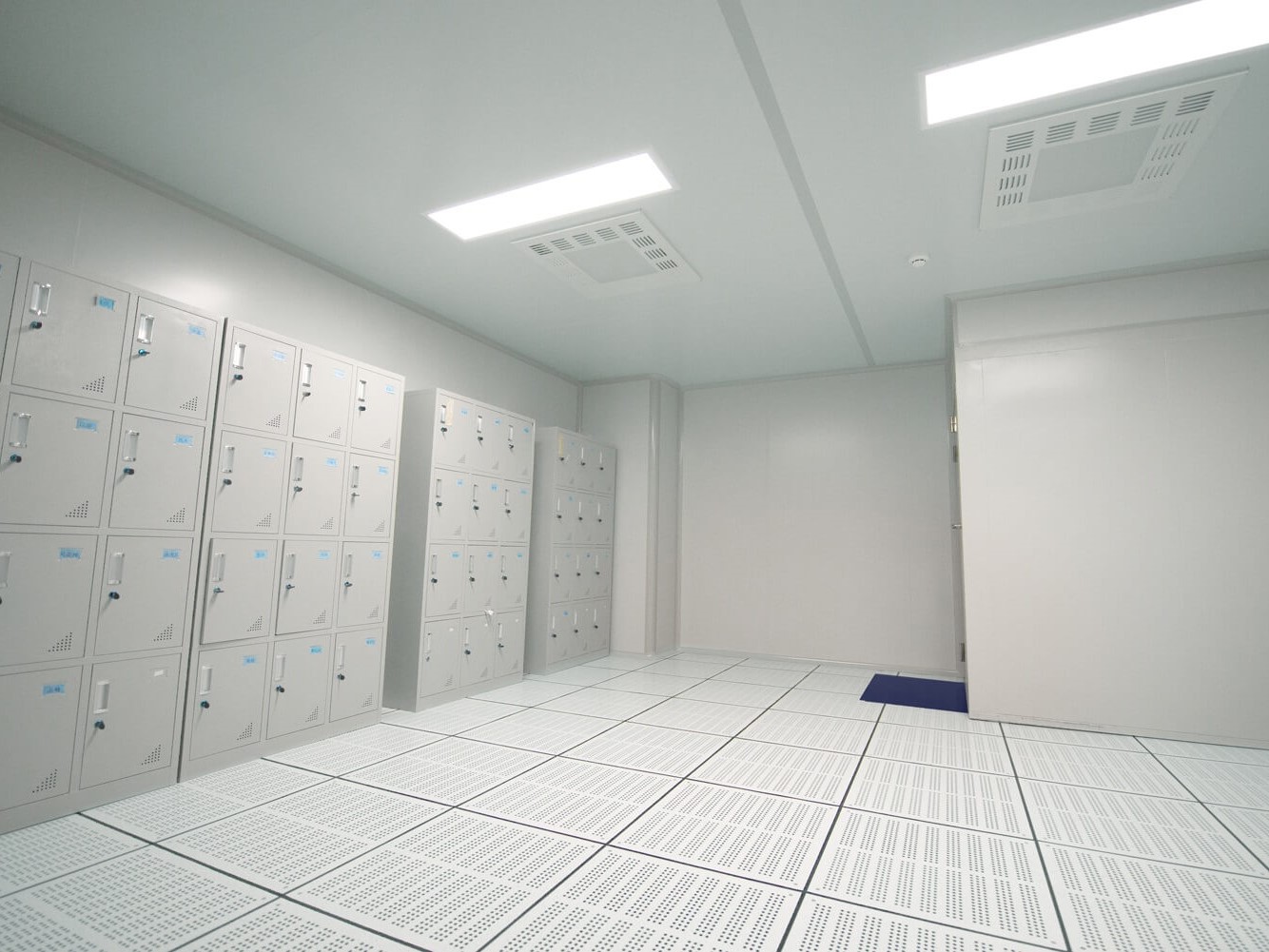

Widely used in pharmaceutical industry, laboratory, electronic industry, chemical industry, etc.
