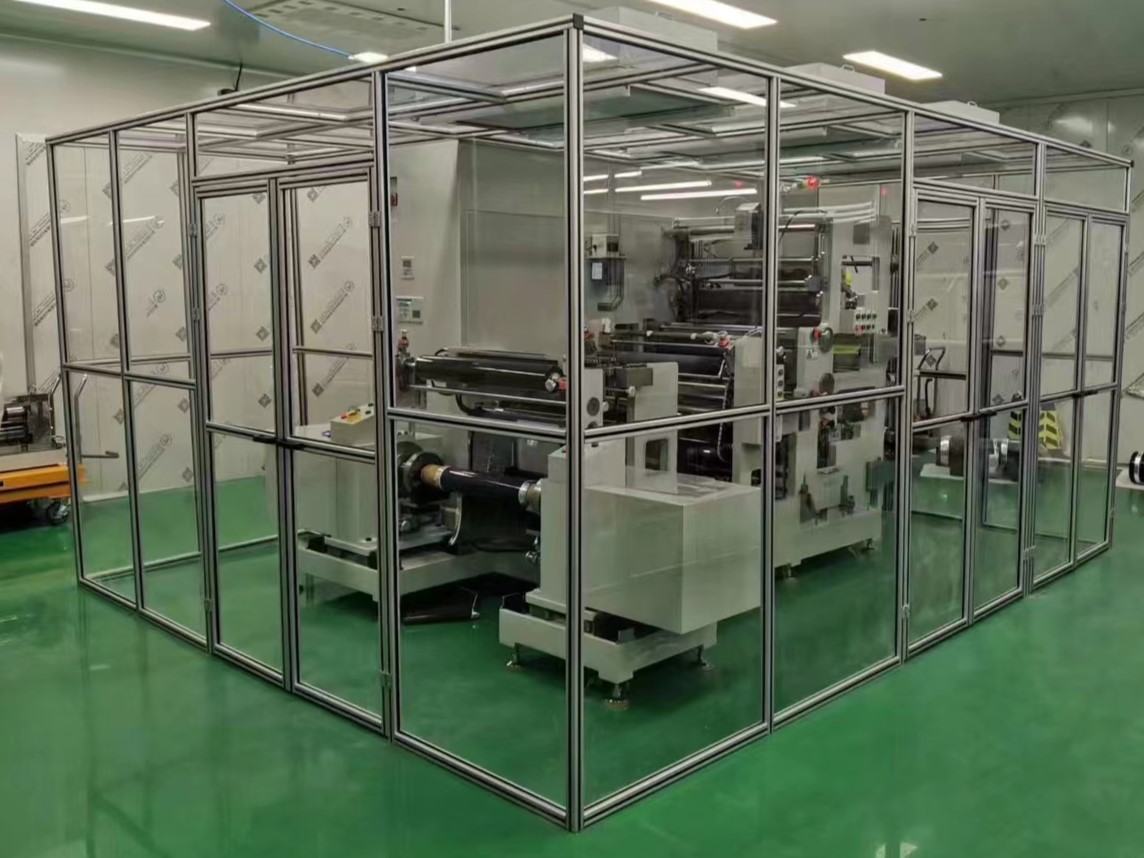

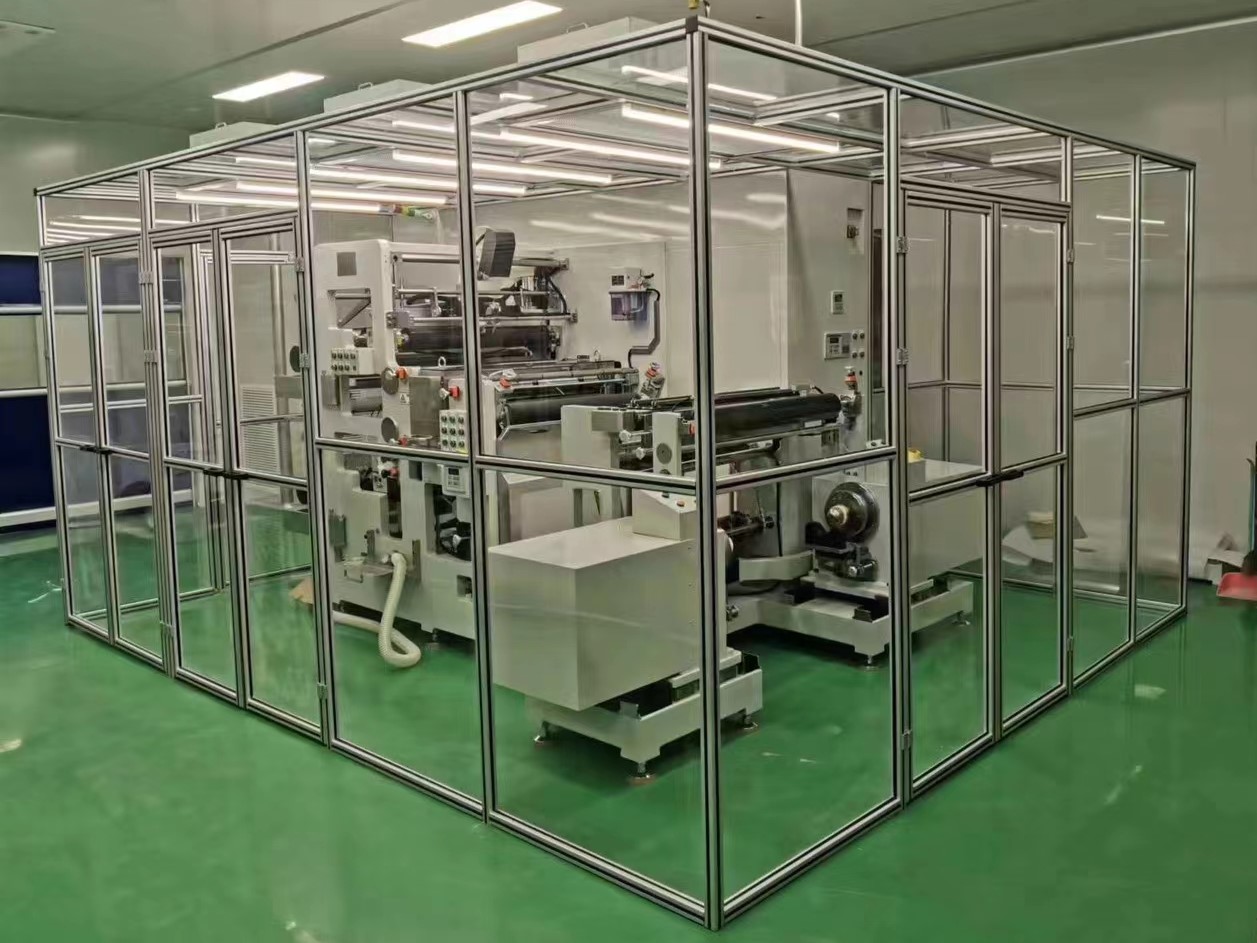

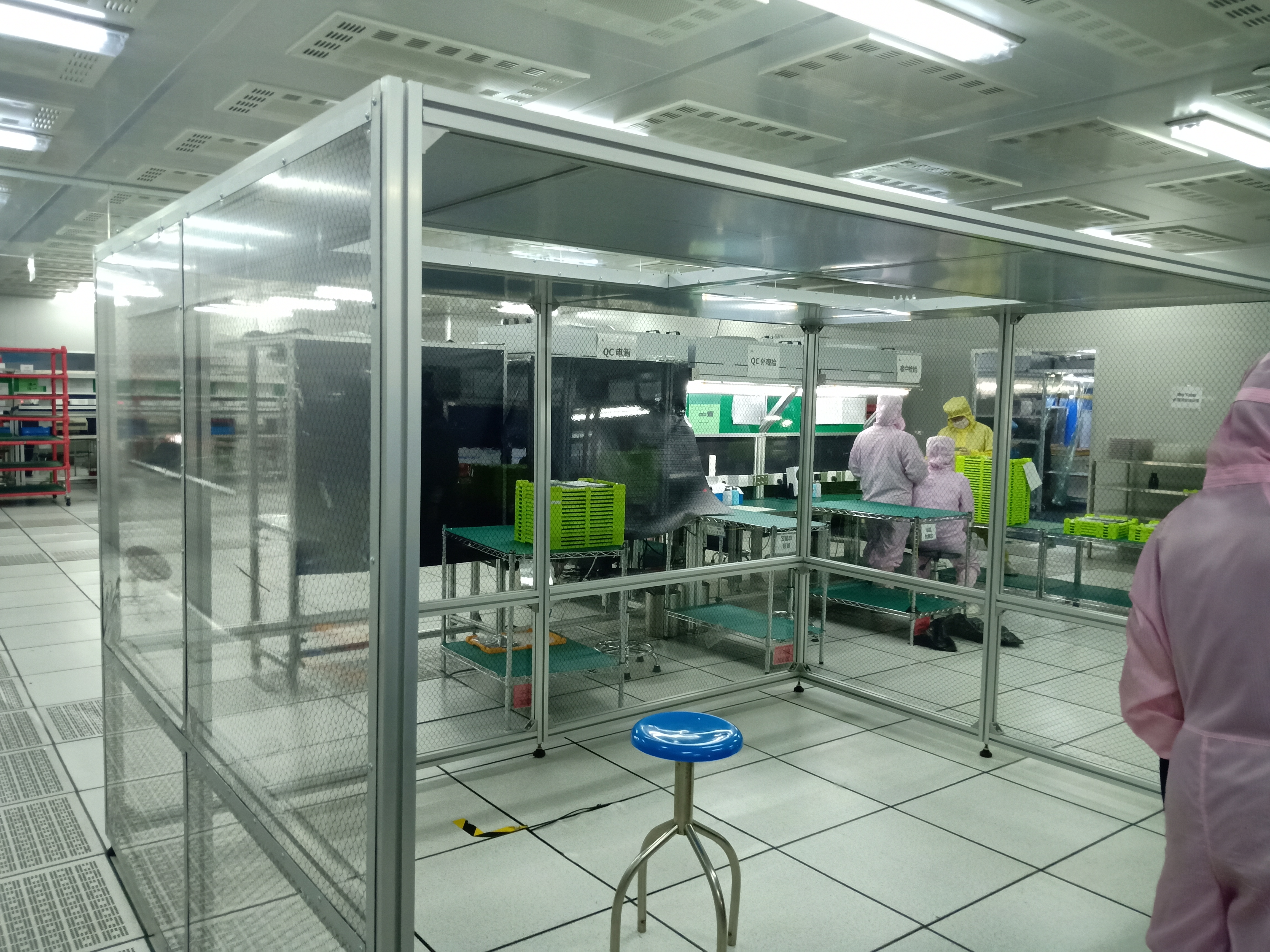

Clean booth is a kind of simple dust free clean room which can be set up easily and have different clean level and customized size required according to design requirement. It has flexible structure and short construction period, easy to prefabricate, assemble and use. It can be used in general clean room but have local high clean level environment to reduce cost. With bigger effective space compared to clean bench; With lower cost, fast construction and less floor height requirement compared to dust free clean room. Even it can be portable with bottom universal wheel. Ultra-thin FFU is specially designed, efficient and low noise. On the one hand, make sure enough height of static pressure box for FFU. Meanwhile, decrease its external height and increase its internal height at the maximum level to make sure work staff without sense of oppression.
Model |
SCT-CB2500 |
SCT-CB3500 |
SCT-CB4500 |
External Dimension(W*D*H)(mm) |
2600*2600*3000 |
3600*2600*3000 |
4600*2600*3000 |
Internal Dimension(W*D*H)(mm) |
2500*2500*2500 |
3500*2500*2500 |
4500*2500*2500 |
Power(kW) |
2.0 |
2.5 |
3.5 |
Air Cleanliness |
ISO 5/6/7/8(Optional) |
||
Air Velocity(m/s) |
0.45±20% |
||
Surrounding Partition |
PVC Cloth/Acrylic Glass(Optional) |
||
Support Rack |
Aluminum Profile/Stainless Steel/Powder Coated Steel Plate(Optional) |
||
Control Method |
Touch Screen Control Panel |
||
Power Supply |
AC220/110V, single phase, 50/60Hz(Optional) |
Remark: all kinds of clean room products can be customized as actual requirement.
Modular and frame structure design, easy to assemble;
Secondary disassembly available, high repeated value in use;
FFU quantity adjustable, meet with different clean level requirement;

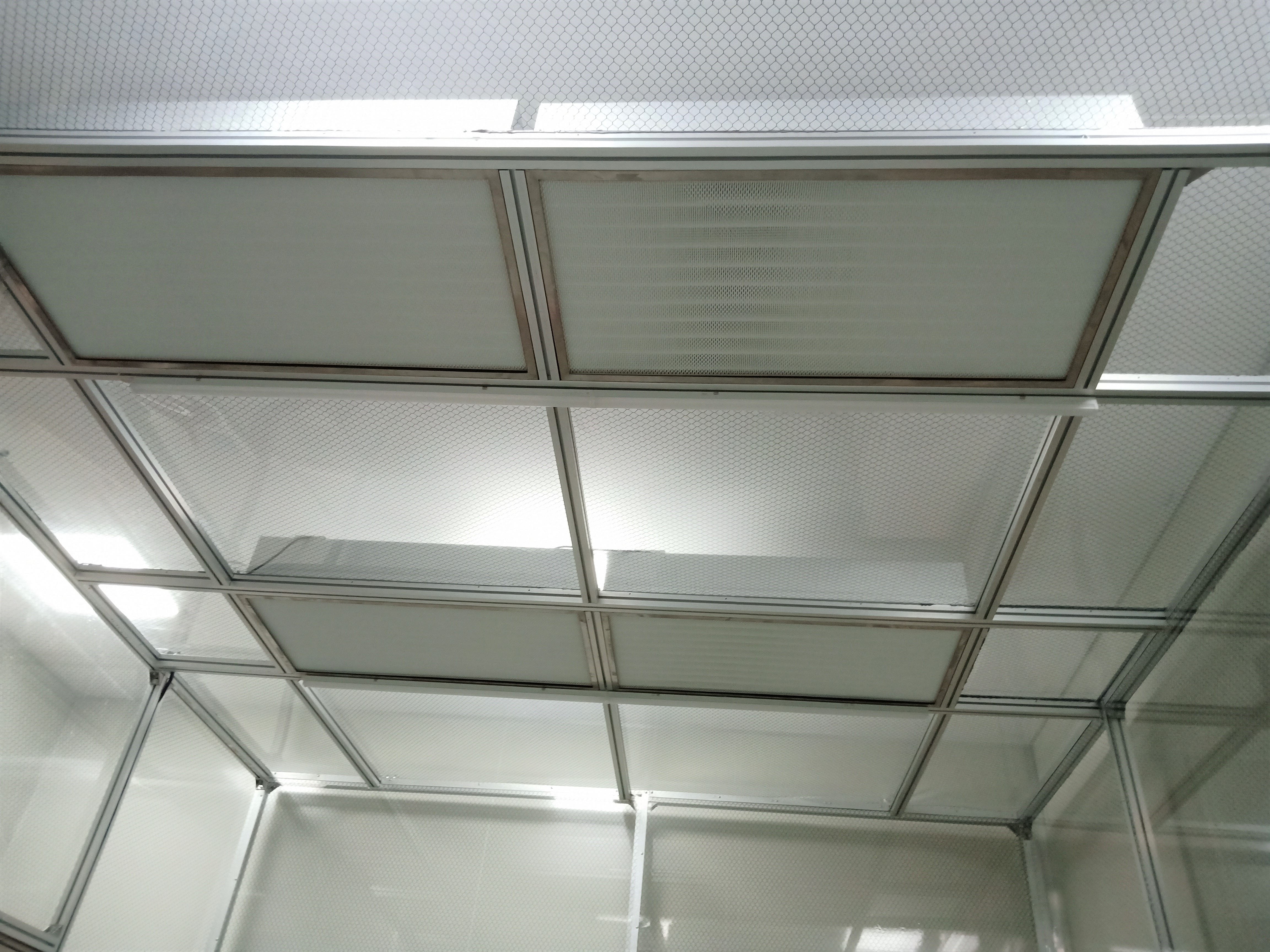

Efficient fan and long service life HEPA filter.
Widely used in pharmaceutical industry, cosmetic industry, precision machinery, etc
