Modular Clean Room Dynamic Static Pass Box

Short Description:

Pass box, as an auxiliary equipment in clean room, is mainly used to transfer small items between clean area and clean area, as well as between non clean area and clean area, in order to reduce the times of door openings in clean room and minimize pollution in clean area. The pass box is made of full stainless steel plate or external powder coated steel plate and internal stainless steel plate, which is flat and smooth. The two doors are interlocked with each other, effectively preventing cross contamination, equipped with electronic or mechanical interlock, and equipped with UV lamp or lighting lamp.

Internal Size: 500*500*500mm/600*600*600mm(Optional)

Type: static/dynamic(Optional)

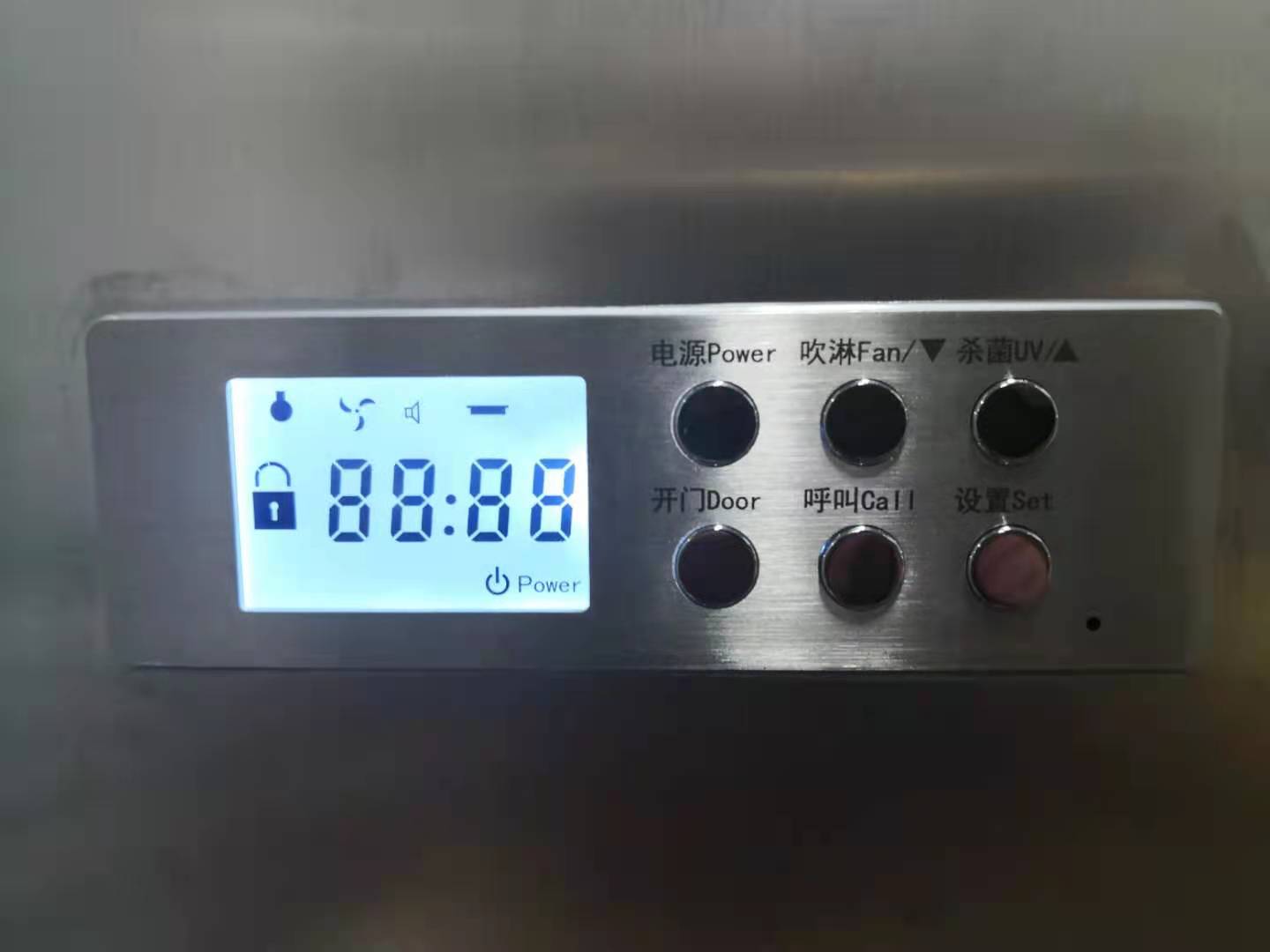

Interlock Type: mechanical interlock/electronic interlock(Optional)

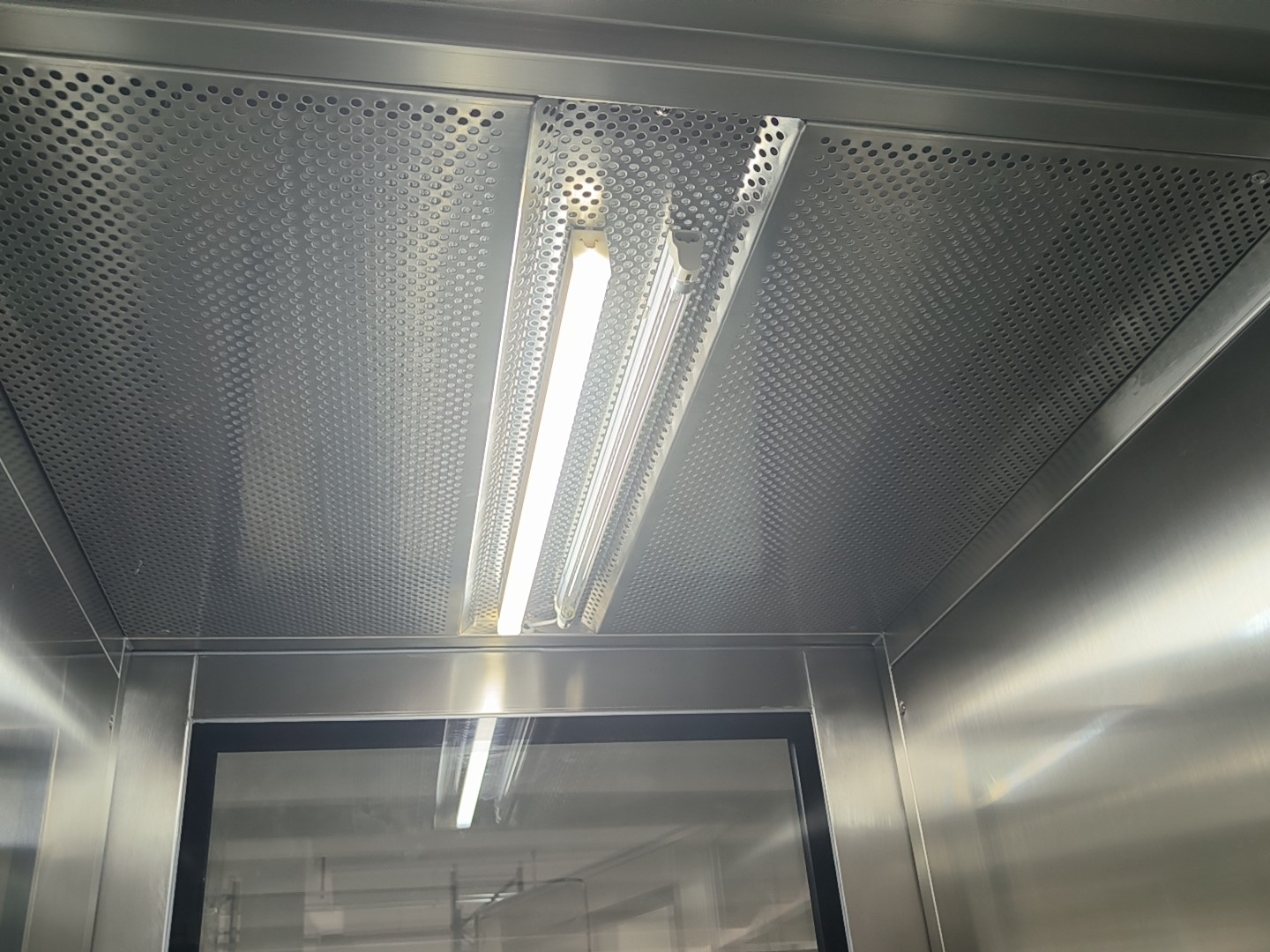

Lamp Type: UV lamp/lighting lamp(Optional)

Material: powder coated steel plate outside and SUS304 inside/full SUS304(Optional)


Product Detail

Product Tags

Product Description

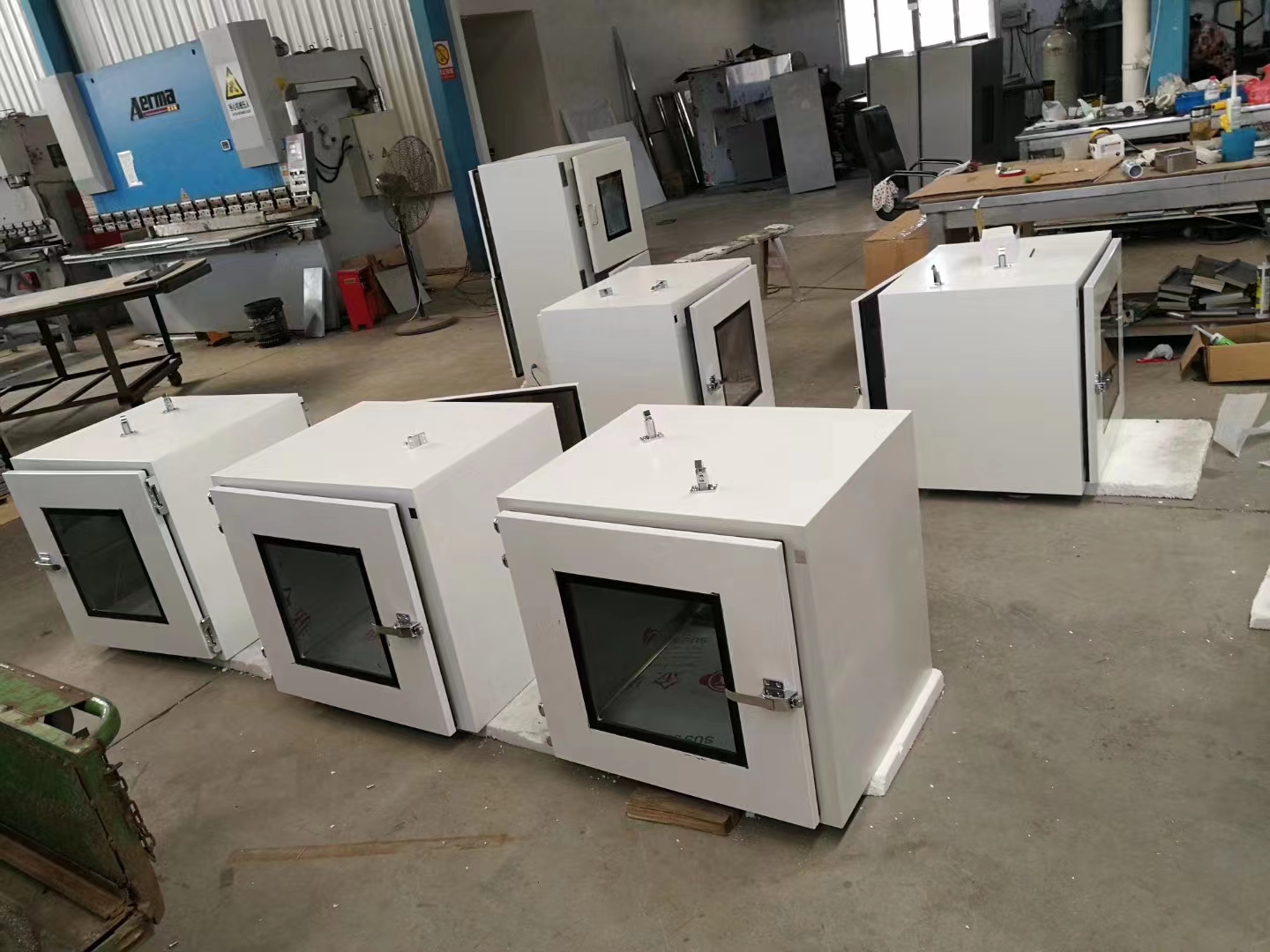

passbox
pass box

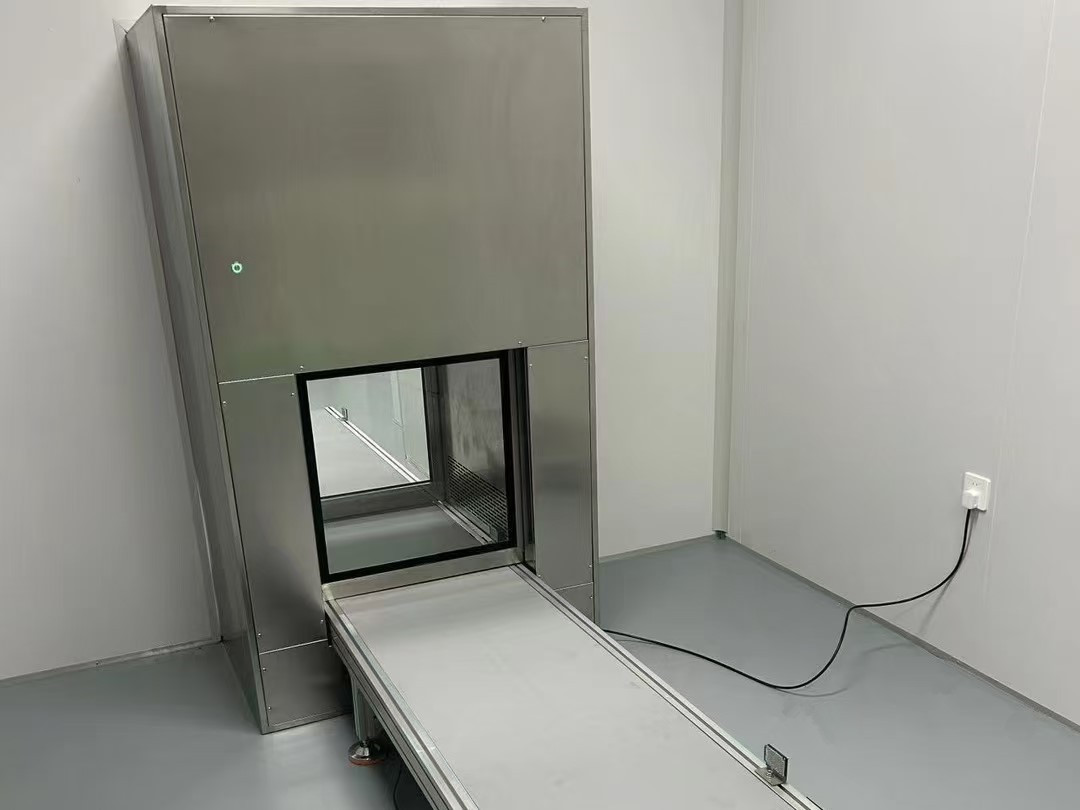

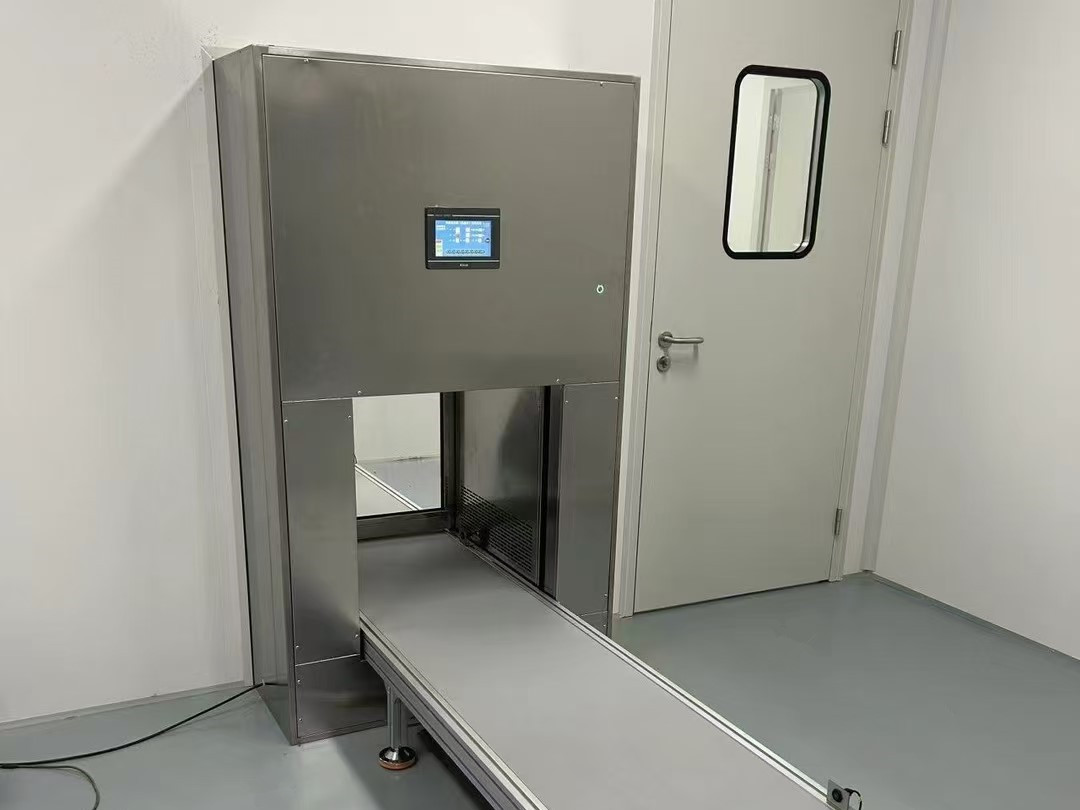

Pass box can be divided into static pass box, dynamic pass box, and air shower pass box according to their working principles. Various models of pass boxes can be made according to actual requirements. Optional accessories: interphone, UV lamp and other related functional accessories. The working surface of short-distance pass box is made of stainless steel plate, which is flat, smooth, and wear-resistant. The working surface of long-distance pass box adopts a roller conveyor, making it easy and convenient to transfer items. Both sides of the doors are equipped with mechanical interlock or electronic interlock to ensure both sides of the doors cannot be opened at the same time. We can customize various non-standard sizes and floor mounted pass box according to customer needs. The air velocity at air outlet can reach over 20 m/s. Adopting a deep pleat hepa filter, the filtration efficiency is 99.99%, ensuring the cleanliness level. Using EVA sealing material, with high sealing performance. Match with interphone available.

Technical Data Sheet

Model

SCT-PB-M555

SCT-PB-M666

SCT-PB-S555

SCT-PB-S666

SCT-PB-D555

SCT-PB-D666

External Dimension(W*D*H)(mm)

685*570*590

785*670*690

700*570*650

800*670*750

700*570*1050

800*670*1150

Internal Dimension(W*D*H)(mm)

500*500*500

600*600*600

500*500*500

600*600*600

500*500*500

600*600*600

Type

Static(without HEPA filter)

Dynamic(with HEPA filter)

Interlock Type

Mechanical Interlock

Electronic Interlock

Lamp

Lighting Lamp/UV Lamp(Optional)

Case Material

Powder Coated Steel Plate Outside and SUS304 Inside/Full SUS304(Optional)

Power Supply

AC220/110V, single phase, 50/60Hz(Optional)

Remark: all kinds of clean room products can be customized as actual requirement.

Product Features

Meet with GMP standard, flush with wall panel;

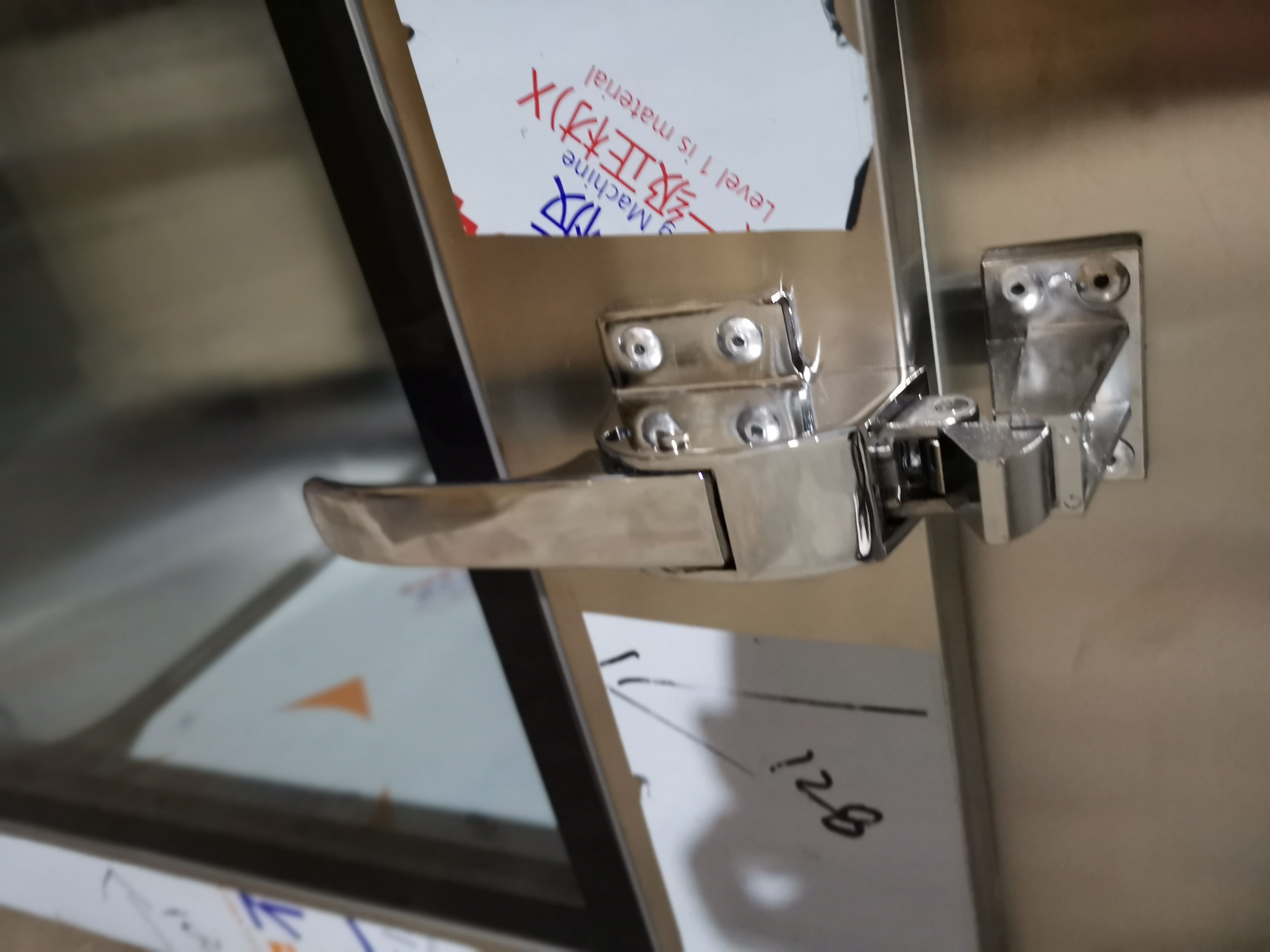

Reliable two door interlocked, easy to operate;

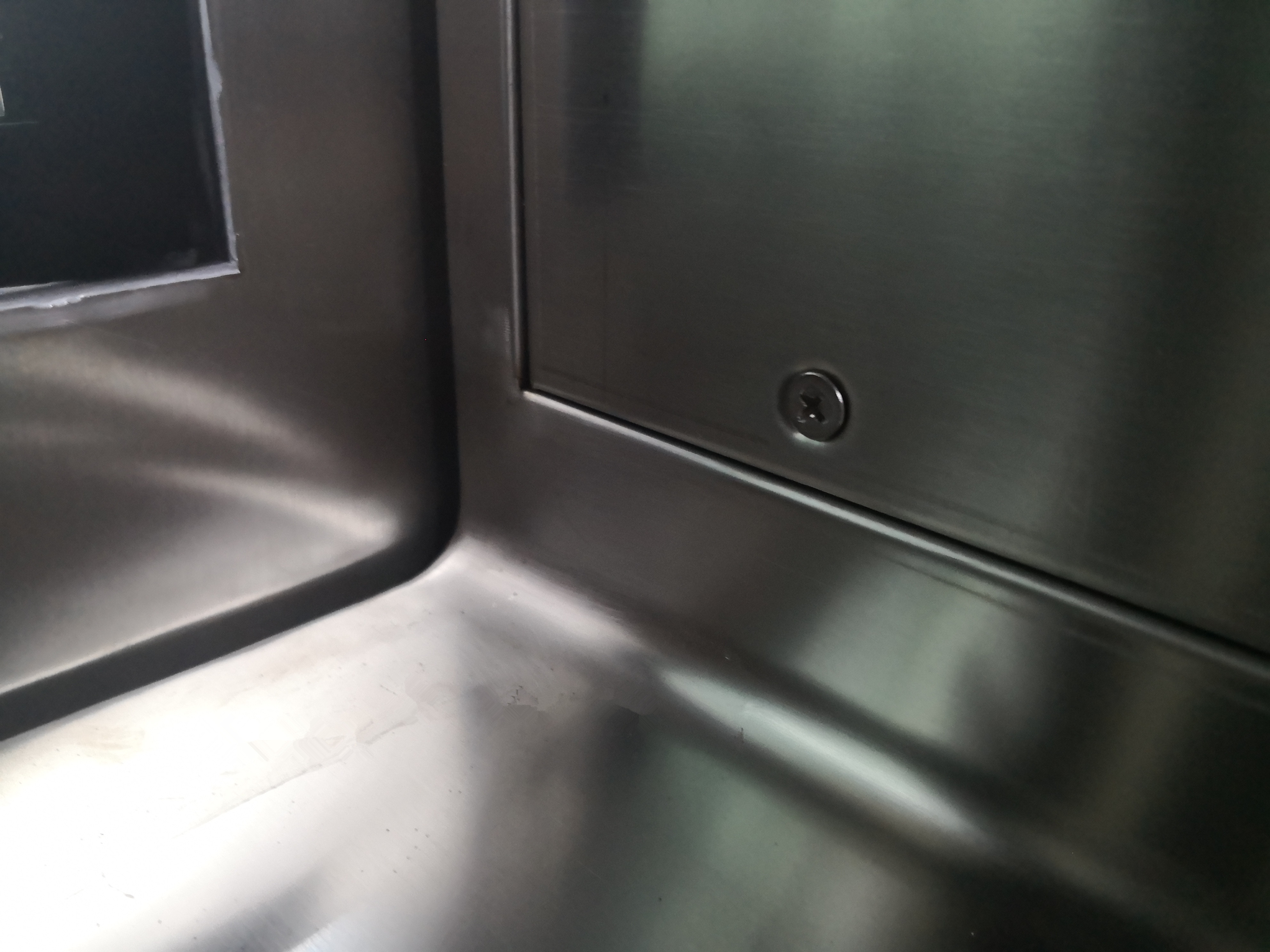

Internal arc design without dead angle, easy to clean;
Excellent sealing performance without leakage risk.

Application

Widely used in pharmaceutical industry, laboratory, electronic industry, food industry, etc.

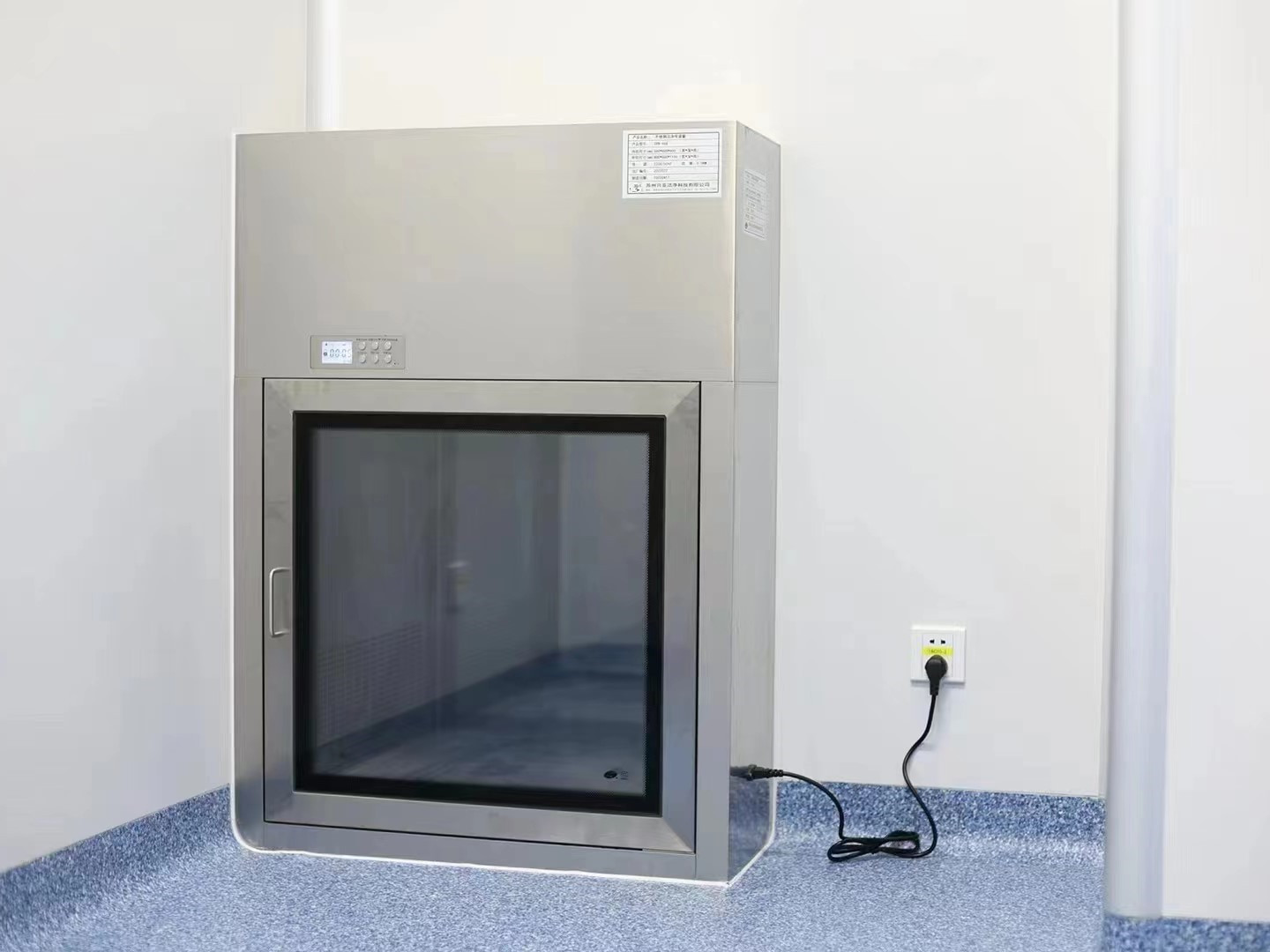

stainless steel pass box

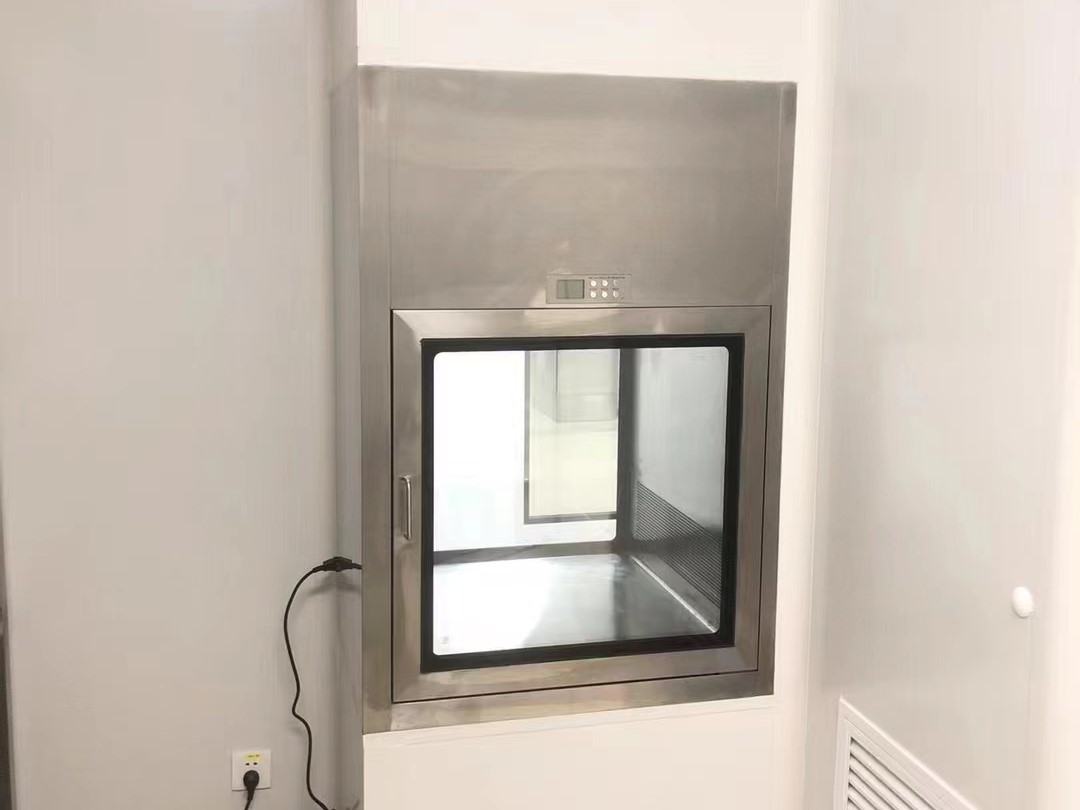

dynamic pass box
