GMP Standard Handmade Hollow Magnesium Sandwich Panel

Short Description:

Handmade magnesium sandwich panel is a kind of normal ceiling panel in clean room industry and it has great strength and long service life. It’s made of powder coated steel surface sheet, surrounded galvanized steel keel and infilled hollow glass magnesium core material. The glass magnesium is a kind of stable gel material, which is configured by magnesium oxide, magnesium chloride and water and then add into modifying agent.

Length: ≤3000mm(Customized)

Width: 980/1180mm(Optional)

Thickness: 50/75/100mm(Optional)

Fire Rate: level A

Loadbearing Capacity: 150kg/m2


Product Detail

Product Tags

Product Description

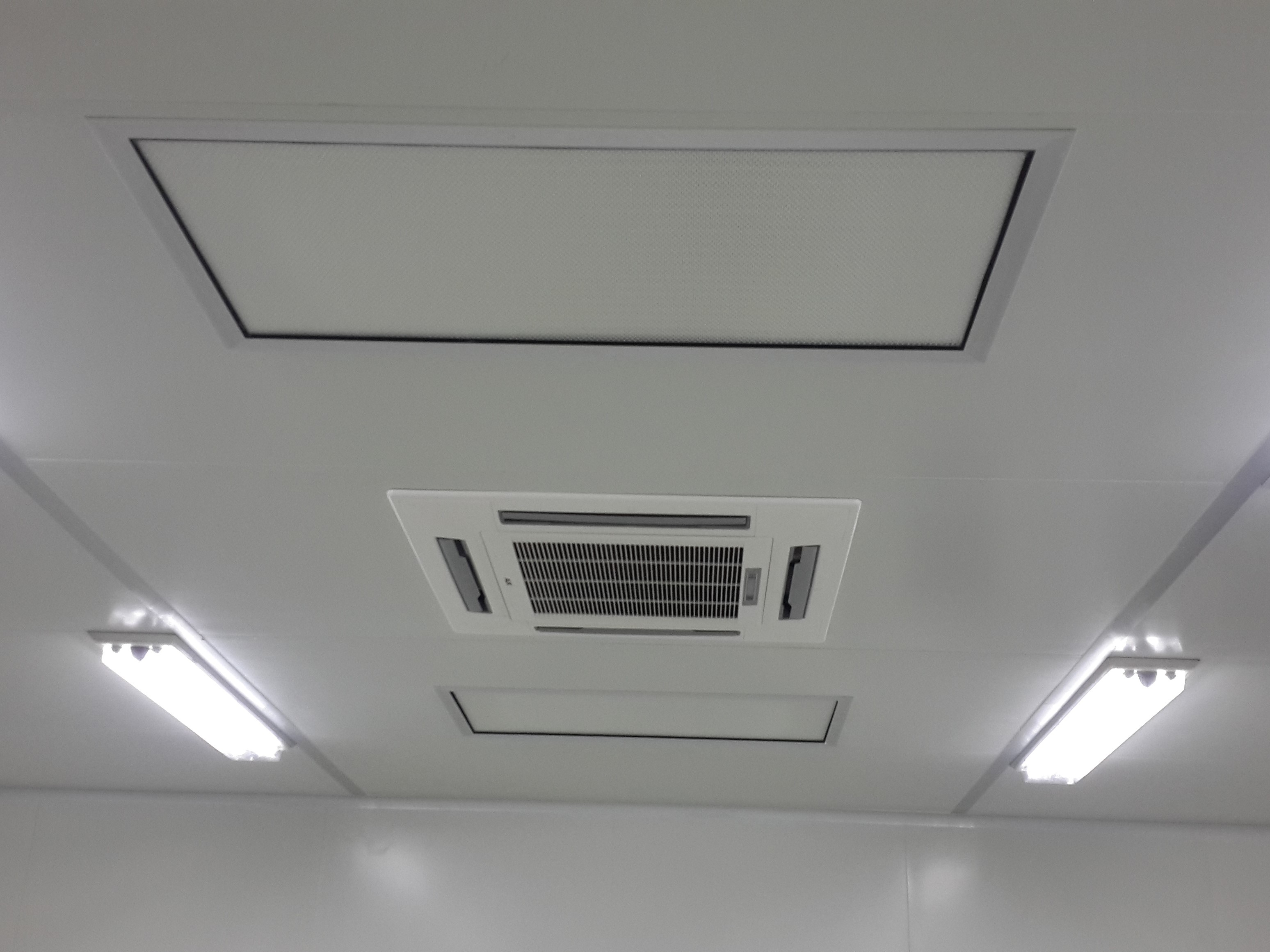

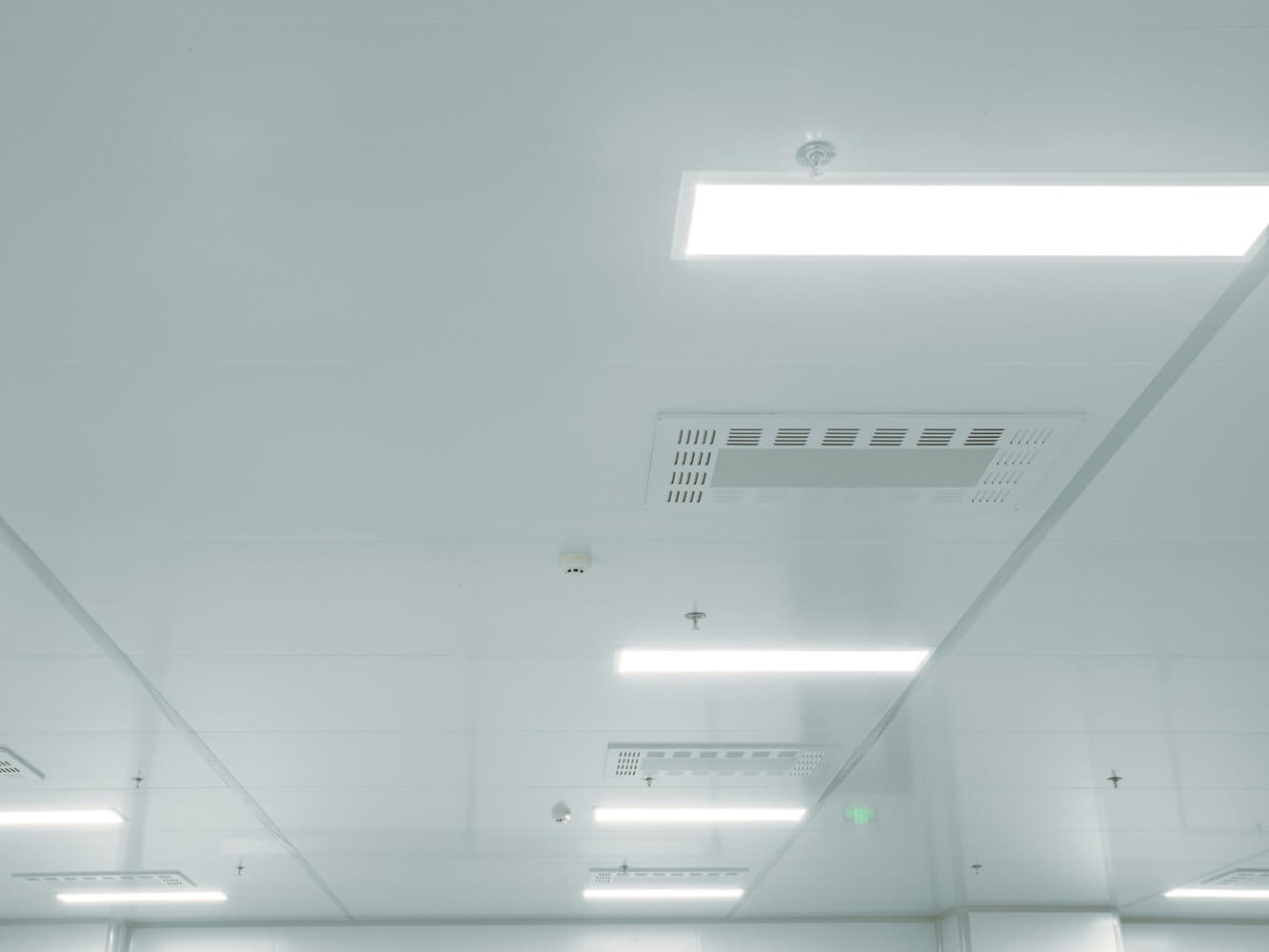

clean room ceiling
clean room ceiling panel

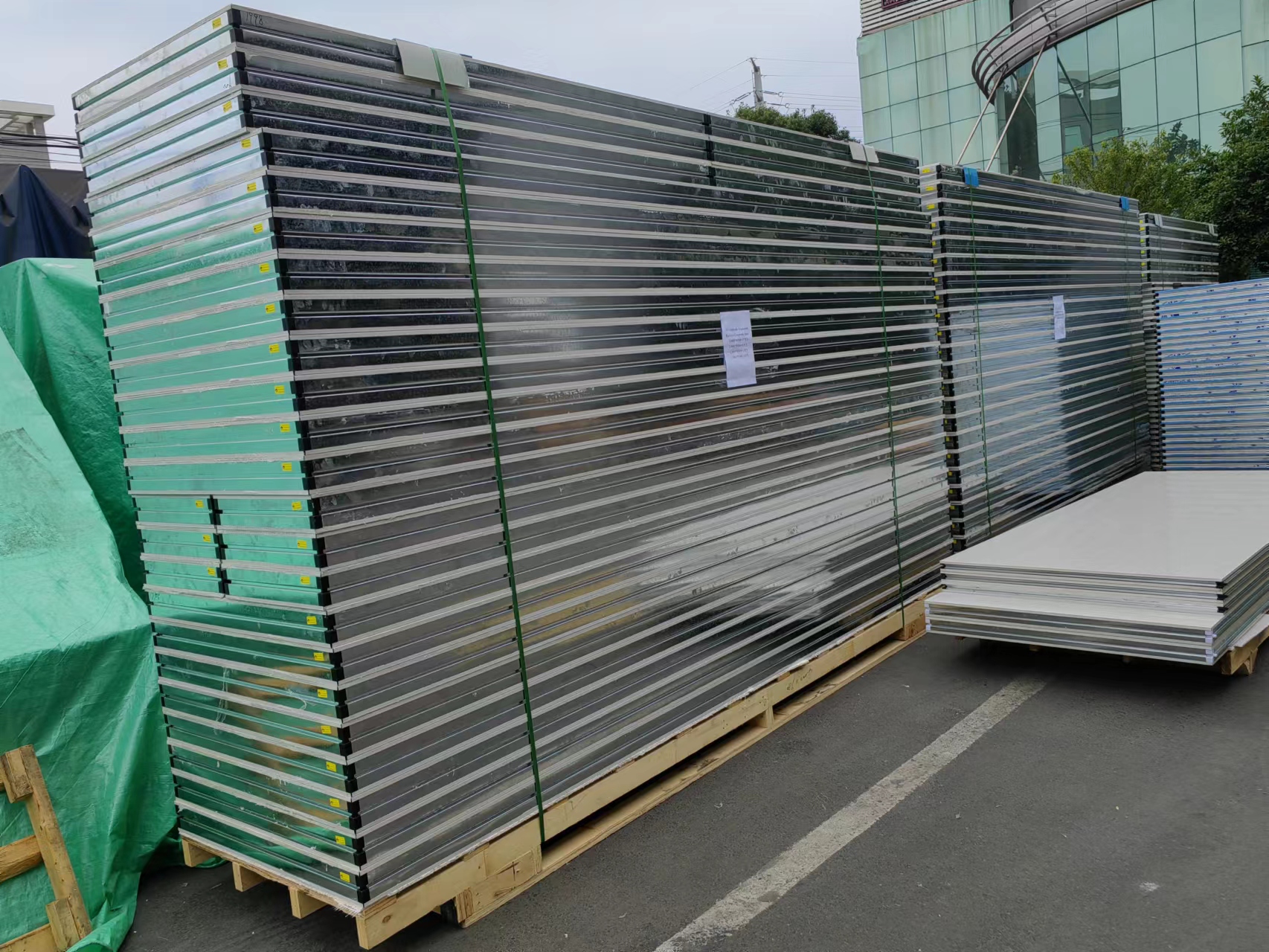

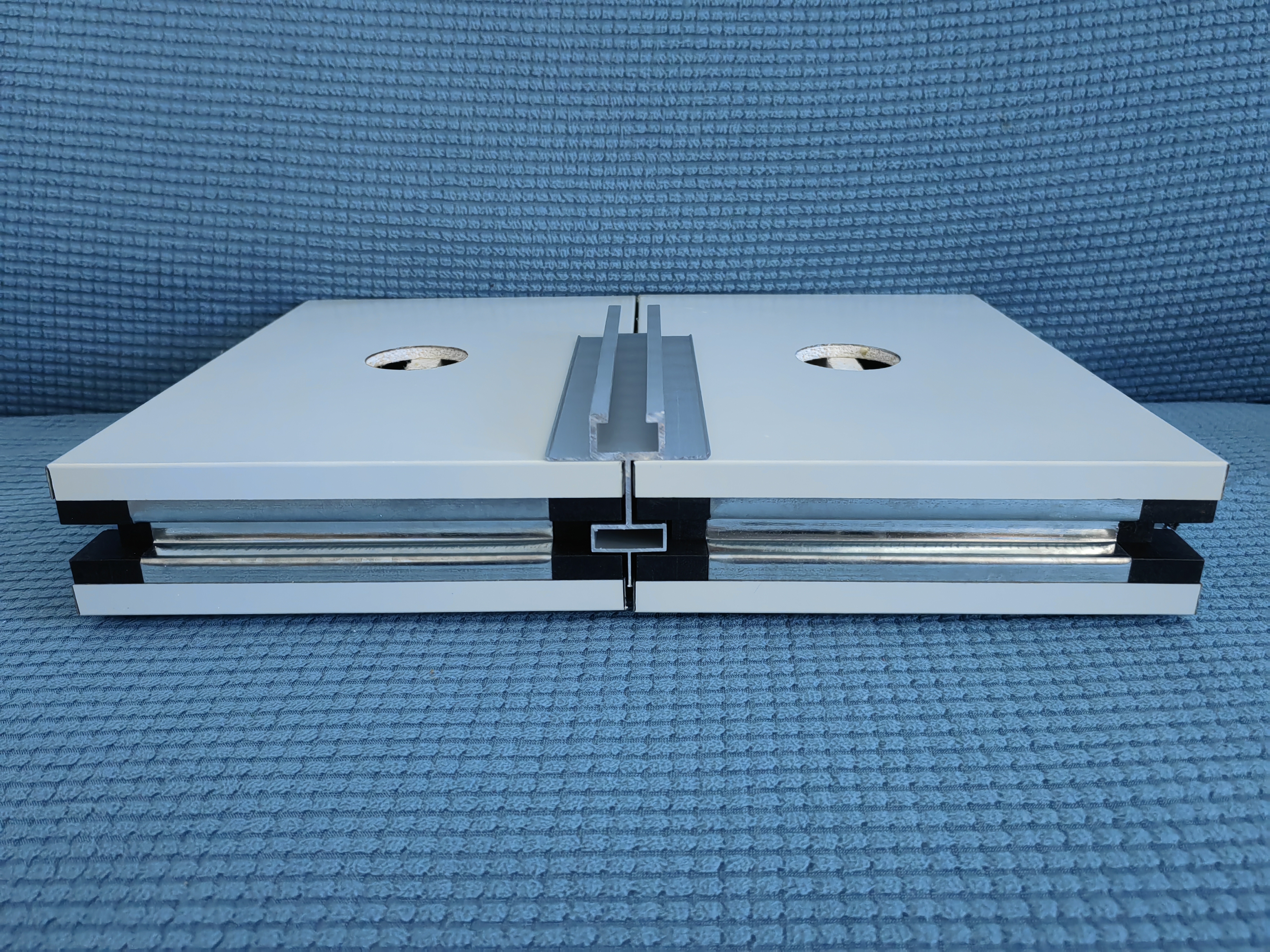

Handmade magnesium sandwich panel has color steel sheet as the surface layer, structural hollow magnesium board and strip as the core layer, with surrounded galvanized steel keel and special adhesive composite. It is processed via a series of procedures such as heating, pressing, glue curing, reinforcement, etc. Further more, it can be blocked at four sides and reinforced by mechanical pressing plate, so that the panel surface is more flat and higher strength. Compared to machine-made hollow magnesium panel, it has higher stability and better installation effect. With great strength performance, the opening can be made to install different components such as light, hepa filter, air conditioner, etc. The most popular color is grey white RAL 9002 and the other color in RAL also can be customized as required. Actually, non-standard panels of various specifications can be also customized according to design requirements.

Technical Data Sheet

Thickness

50/75/100mm(Optional)

Width

980/1180mm(Optional)

Length

≤3000mm(Customized)

Steel Sheet

Powder coated 0.5mm thickness

Weight

17 kg/m2

Fire Rate Class

A

Fire Rated Time

1.0 h

Loadbearing Capacity

150 kg

Remark: all kinds of clean room products can be customized as actual requirement.

Product Features

Strong strength, walkable, loadbearing, non-flammable;
Waterproof, shockproof, dust free, smooth, corrosion resistant;
Concealed suspension, easy to do construction and maintenance;
Modular structure system, easy to adjust and change.

Application

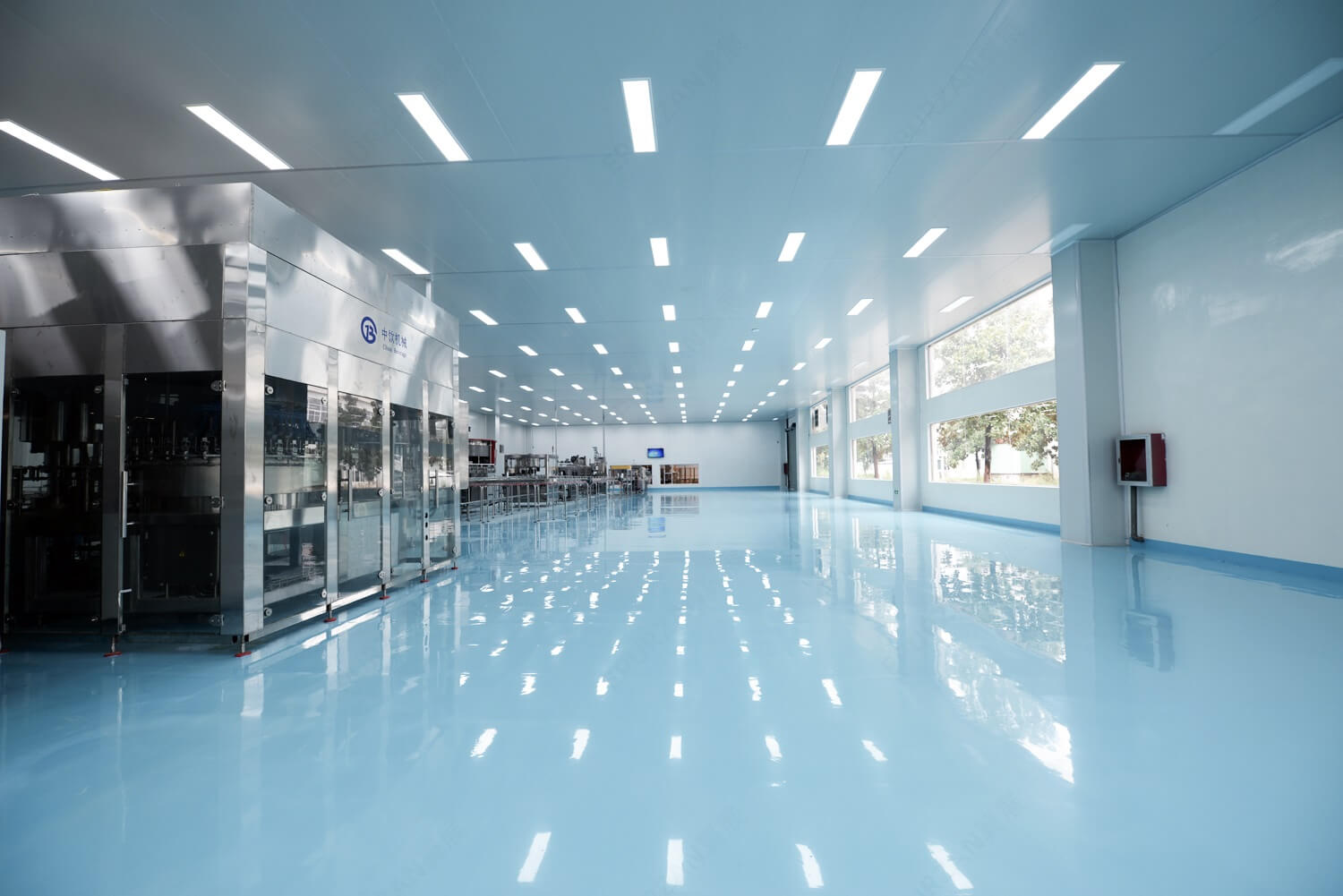

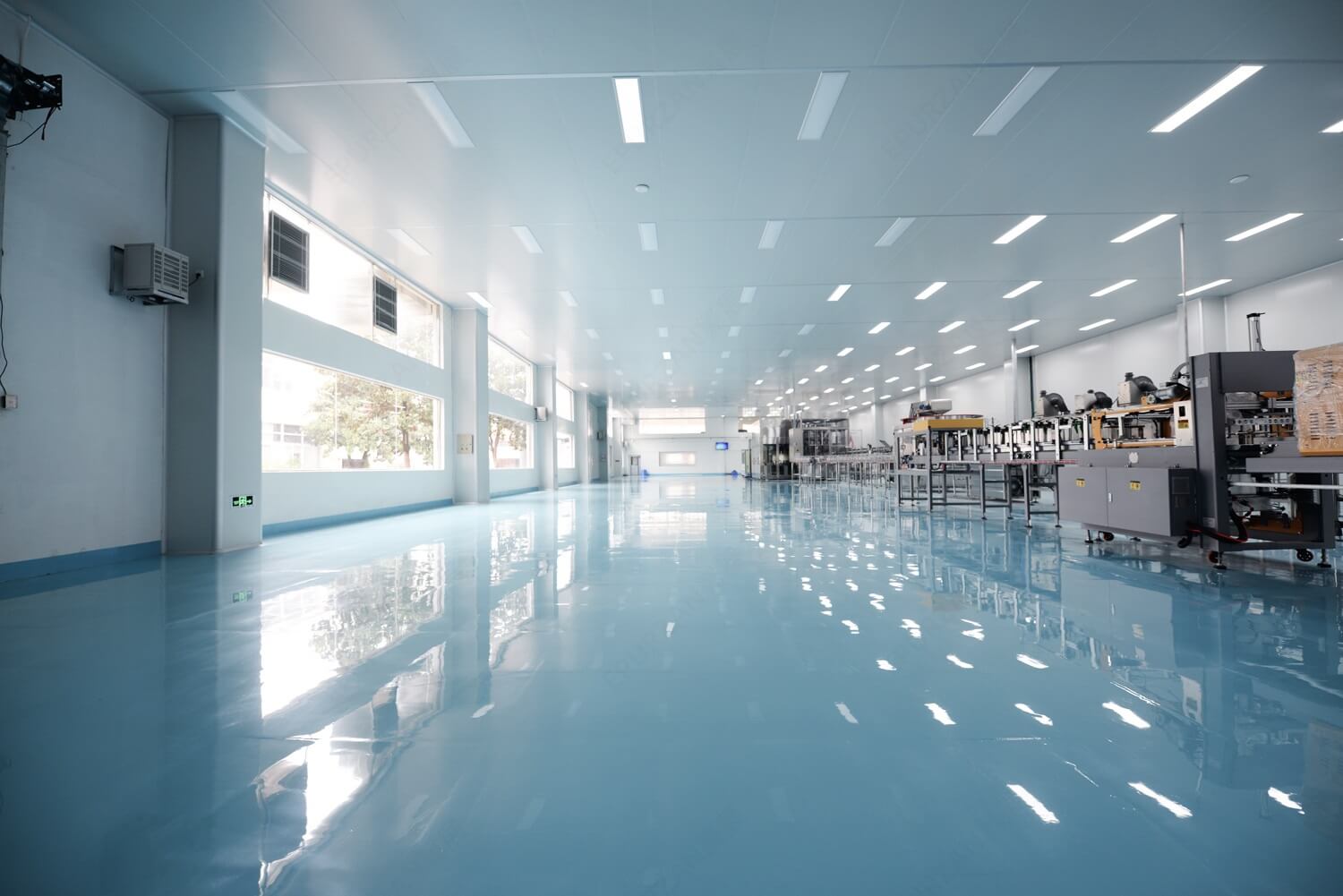

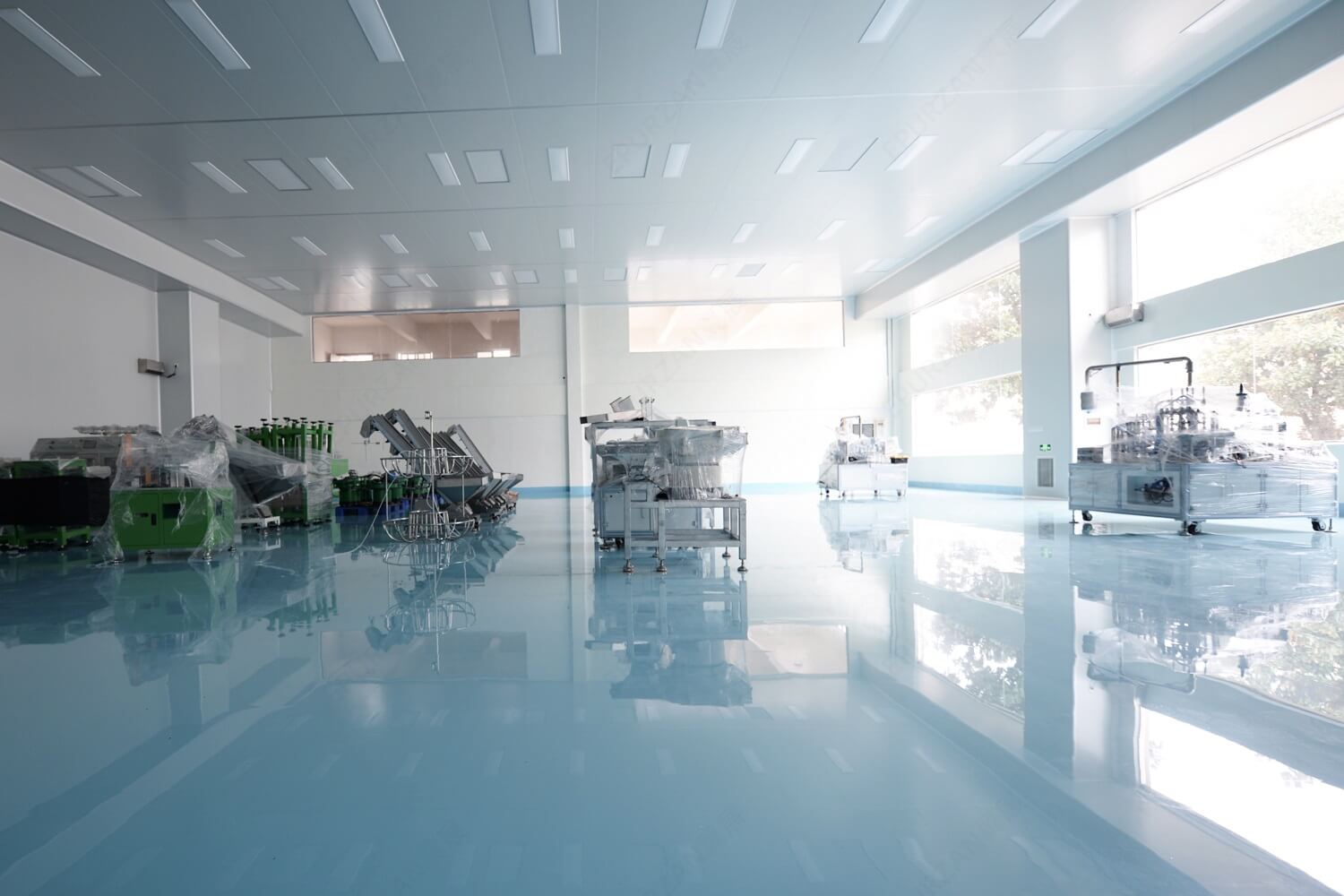

Widely used in pharmaceutical industry, medical operating room, laboratory, electronic industry, food industry, etc.

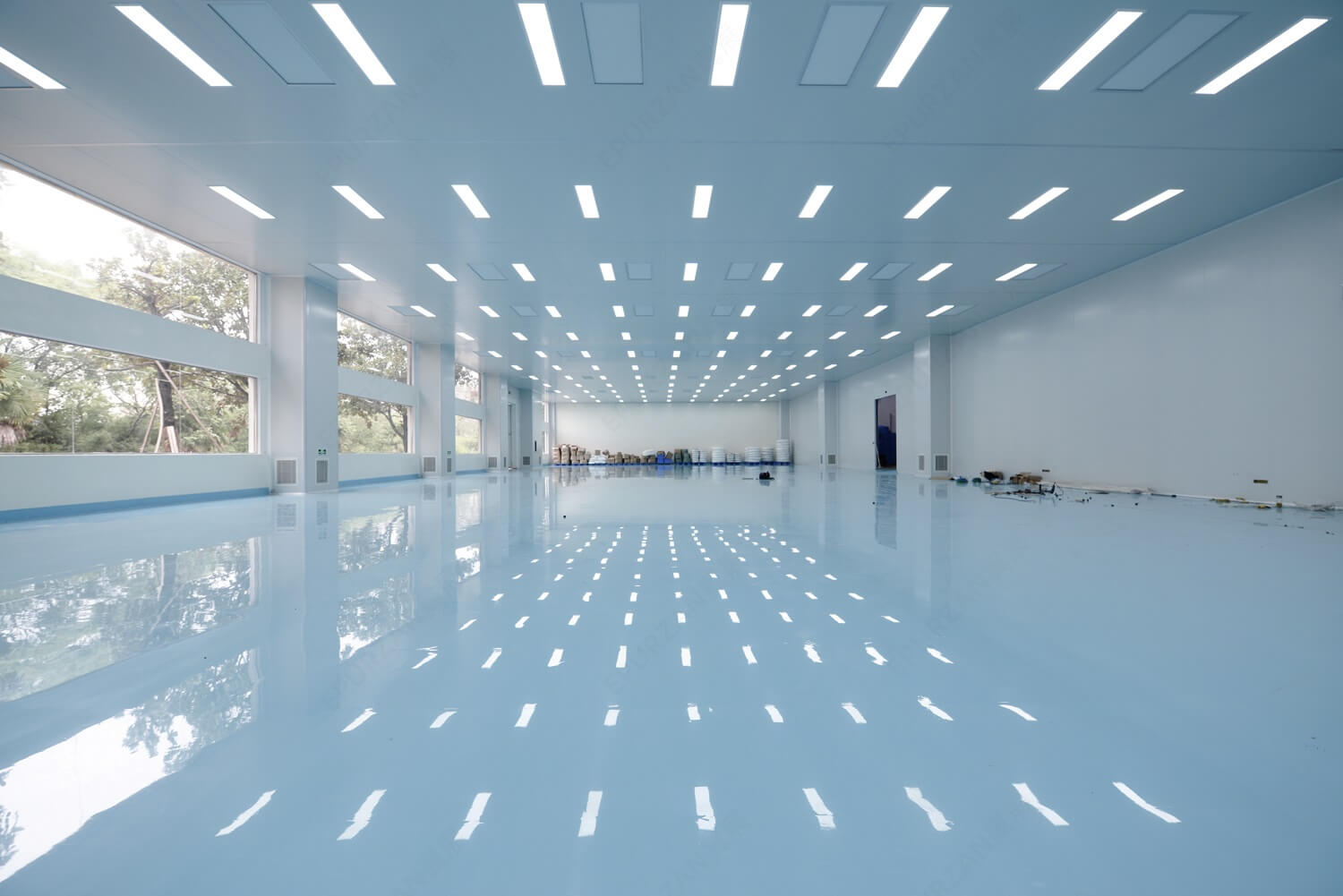

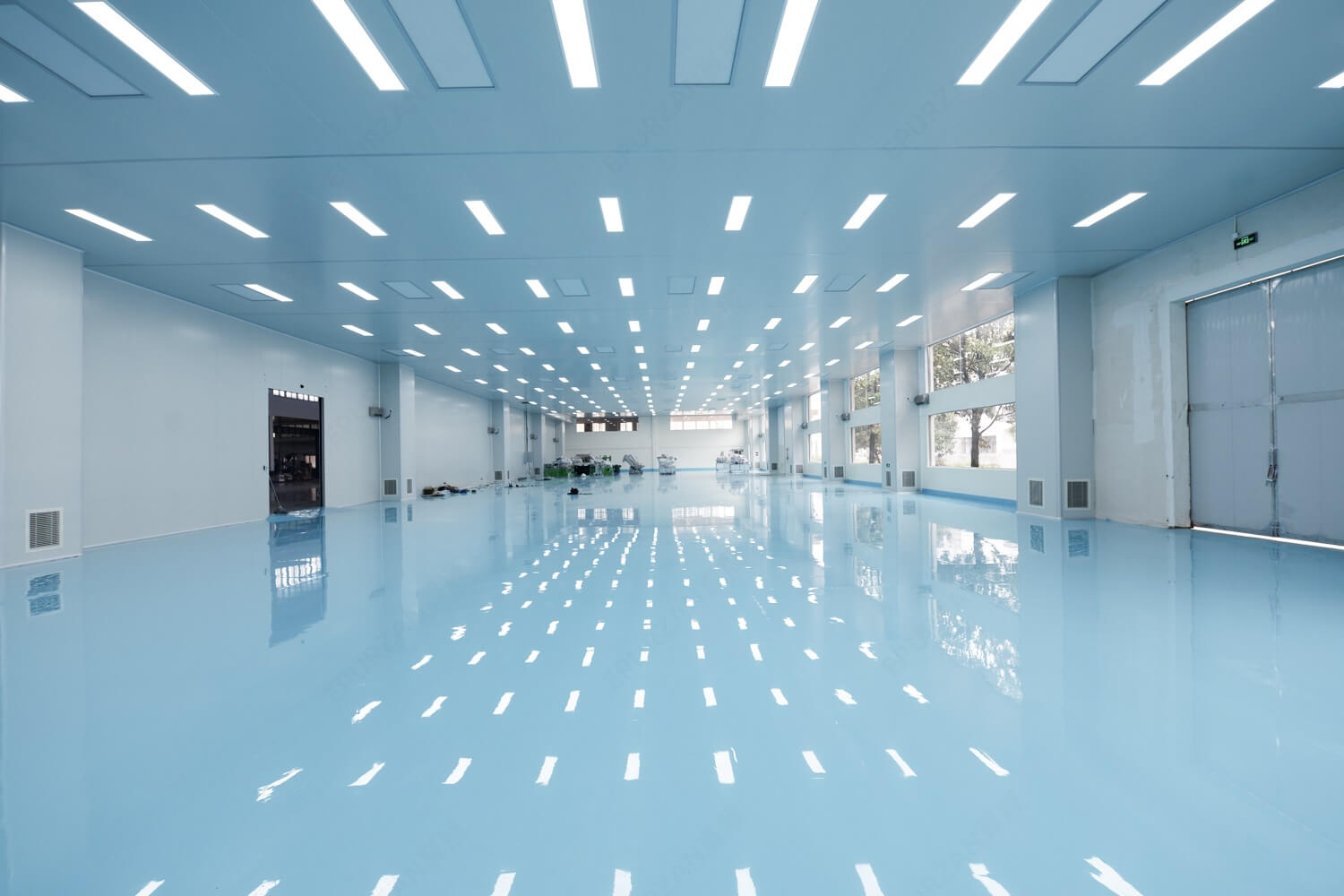

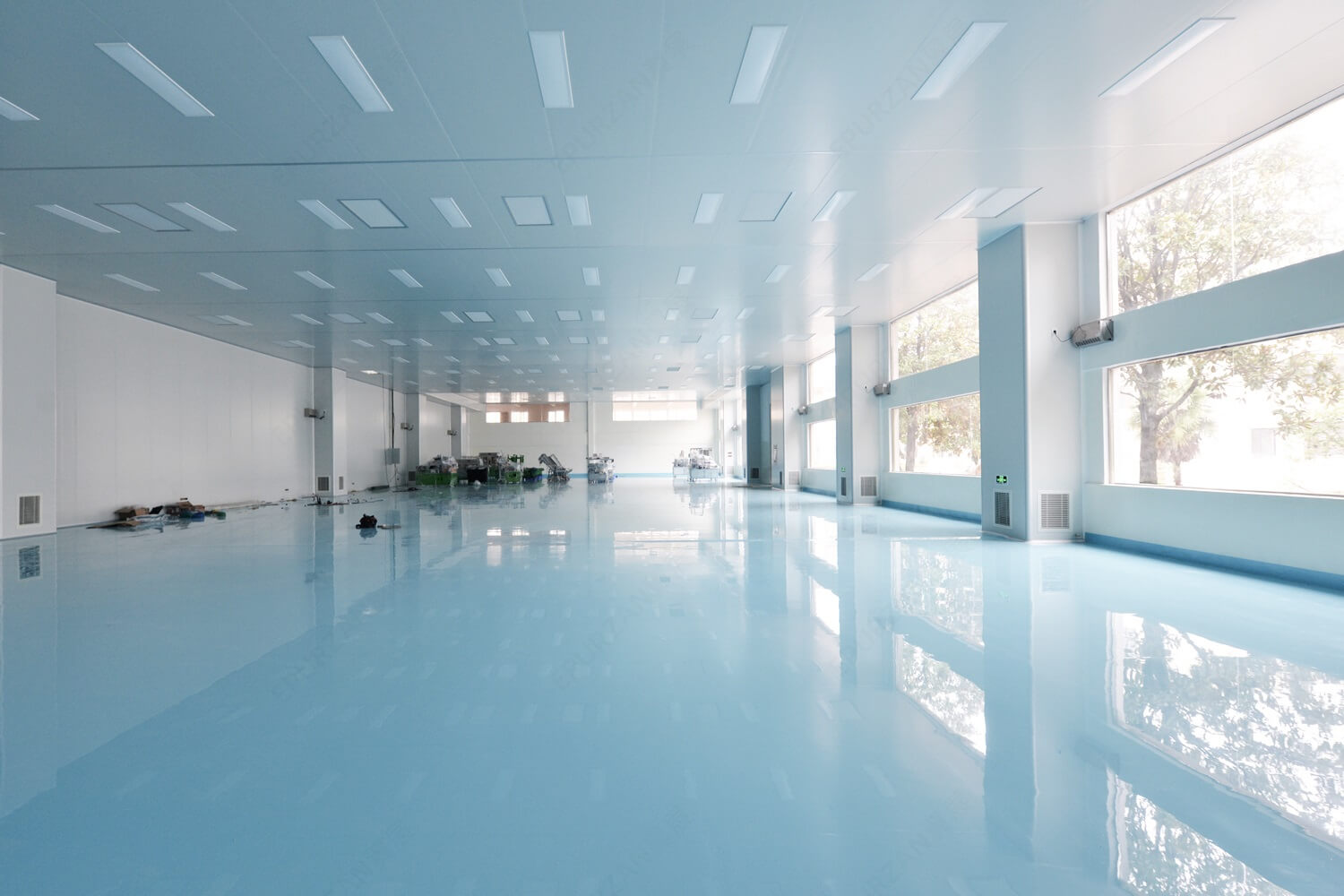

gmp clean room
iso class clean room
