GMP Standard Handmade Magnesium Rockwool Sandwich Panel

Short Description:

Handmade magnesium rockwool sandwich panel is a kind of normal ceiling panel in clean room industry and it has the best comprehensive performance such as fire prevention, noise reduction and strong strength, etc. It’s made of powder coated steel surface sheet, surrounded galvanized steel keel and infilled single/double person magnesium and middle rockwool core material. It is obvious to integrate the advantages of both rock wool sandwich panel and hollow magnesium sandwich panel.

Length: ≤3000mm(Customized)

Width: 980/1180mm(Optional)

Thickness: 50/75/100mm(Optional)

Fire Rate: level A

Noise Reduction: 30 dB


Product Detail

Product Tags

Product Description

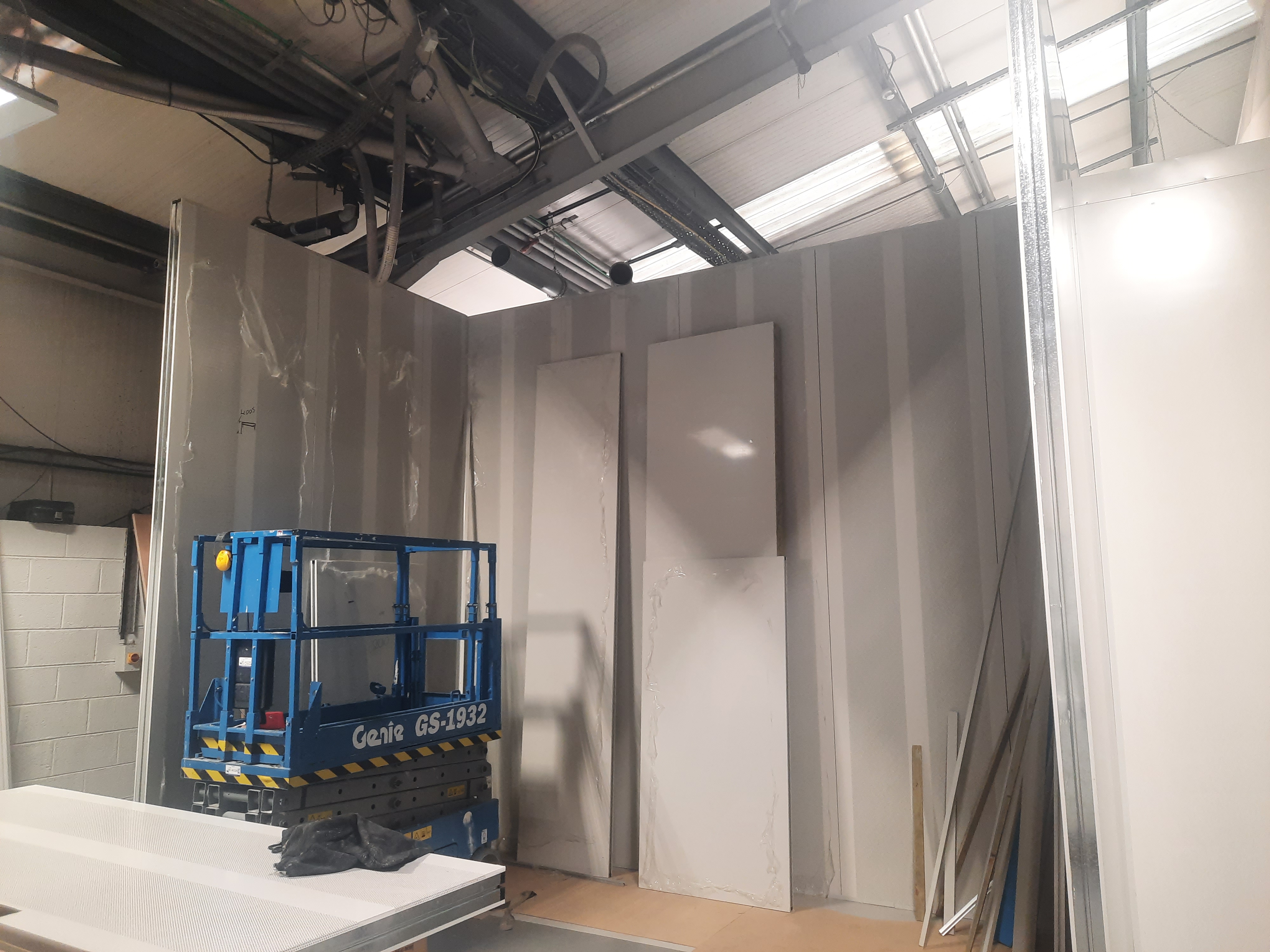

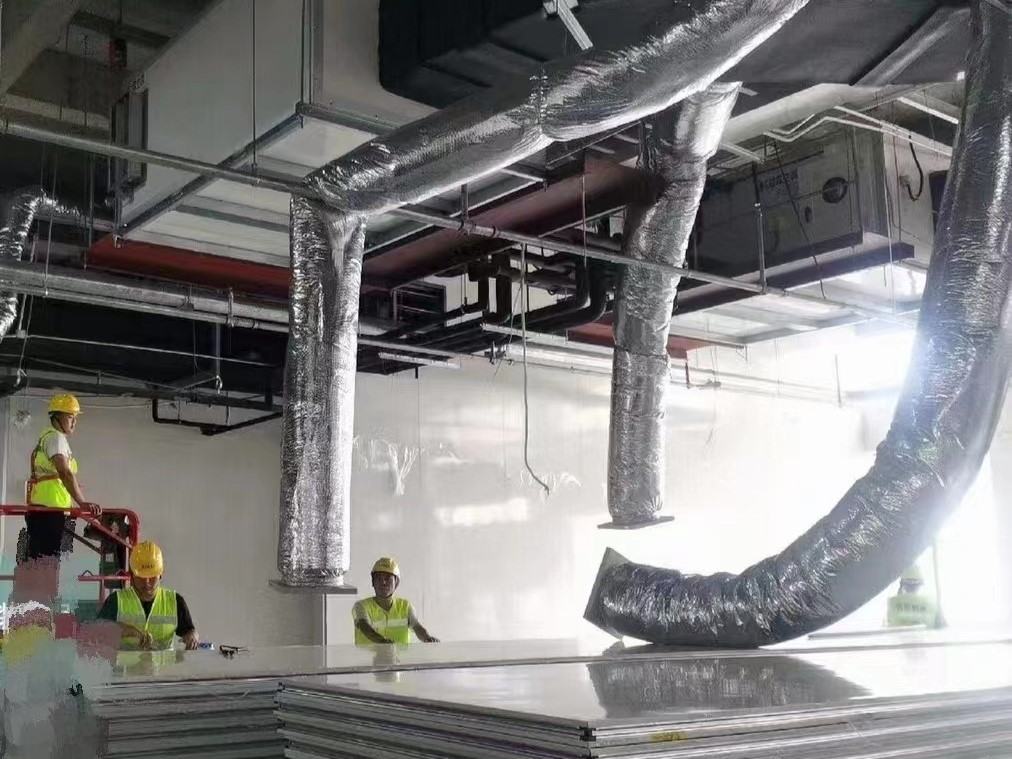

clean room partition

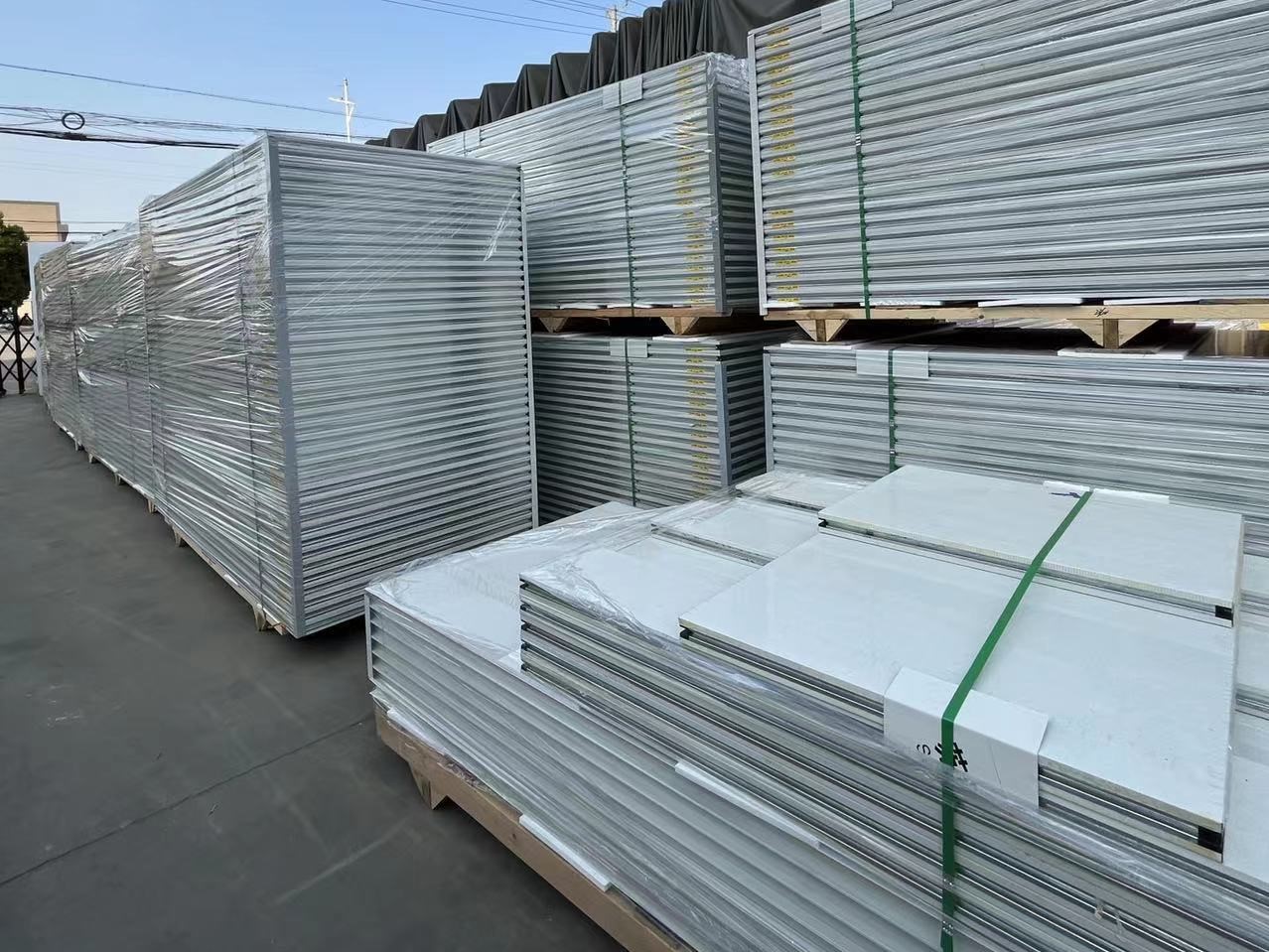

clean room wall

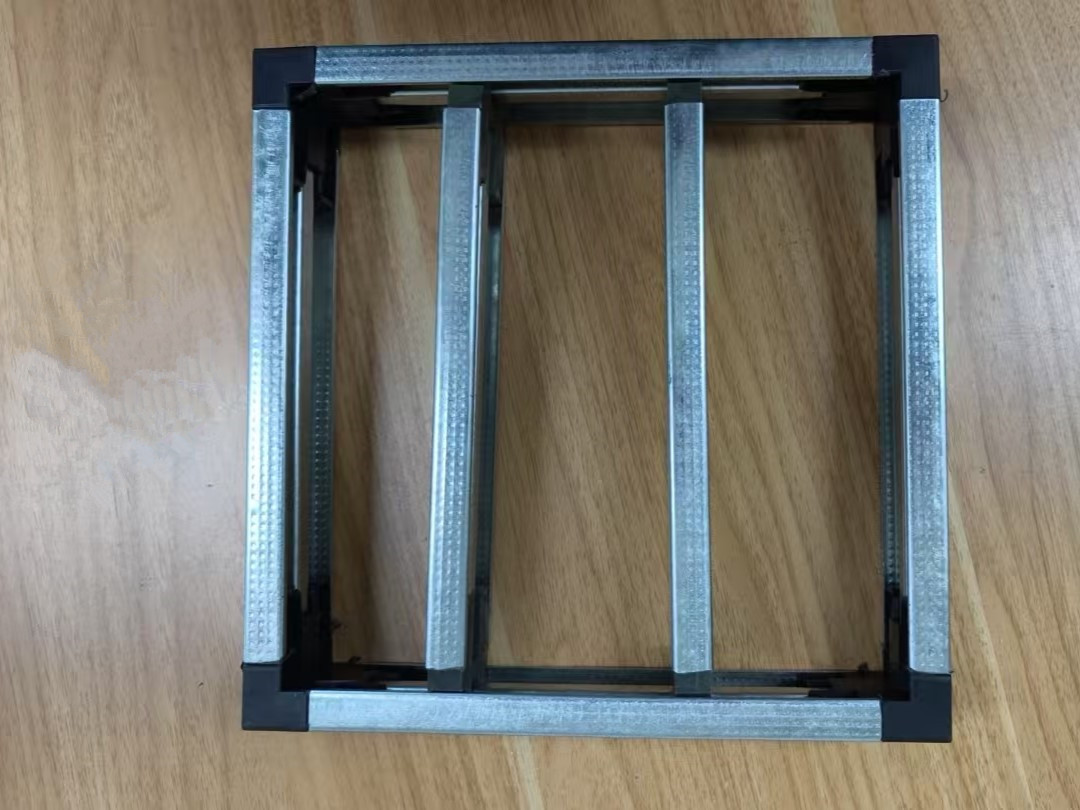

Handmade magnesium rockwool sandwich panel has color steel sheet as the surface layer, structural magnesium and rockwool as the core layer, with surrounded galvanized steel keel and special adhesive composite. It is processed via a series of procedures such as heating, pressing, glue curing, reinforcement, etc. Further more, it can be blocked at four sides and reinforced by mechanical pressing plate, so that the panel surface is more flat and higher strength. Compared to machine-made magnesium rockwool panel, it has higher stability and better installation effect. With great strength performance, the opening can be made to install different components such as light, hepa filter, air conditioner, etc. The most popular color is grey white RAL 9002 and the other color in RAL also can be customized as required. Actually, non-standard panels of various specifications can be also customized according to design requirements.

Technical Data Sheet

Thickness

50/75/100mm(Optional)

Width

980/1180mm(Optional)

Length

≤3000mm(Customized)

Steel Sheet

Powder coated 0.5mm thickness

Weight

22 kg/m2

Fire Rate Class

A

Fire Rated Time

1.0 h

Noise Reduction

30 dB

Remark: all kinds of clean room products can be customized as actual requirement.

Product Features

Fireproof, loadbearing, strong strength and hard texture;                                                                                                                                                              Walkable, sound and heat insulated, shockproof, dust free, smooth, corrosion resistant;
Prefabricated system, easy to install and maintenance;                                                                                                                                                              Modular structure, easy to adjust and change.

Application

Widely used in pharmaceutical industry, medical operation room, laboratory, electronic industry, food industry, etc.

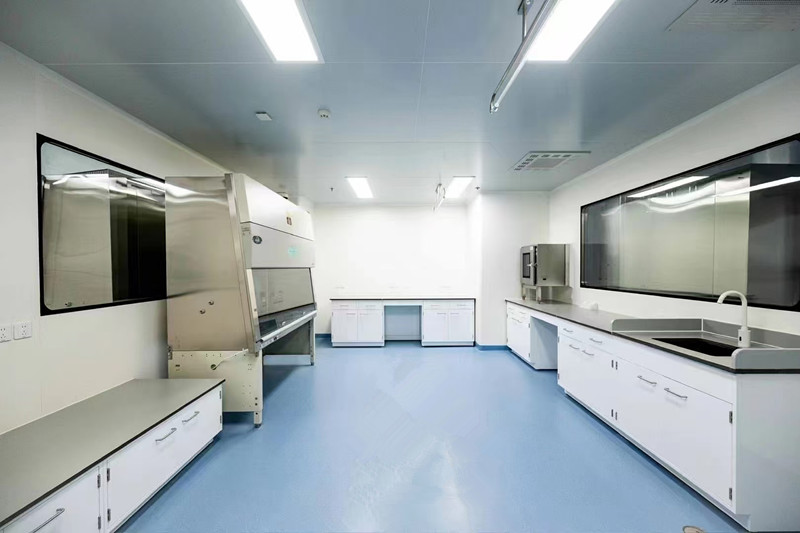

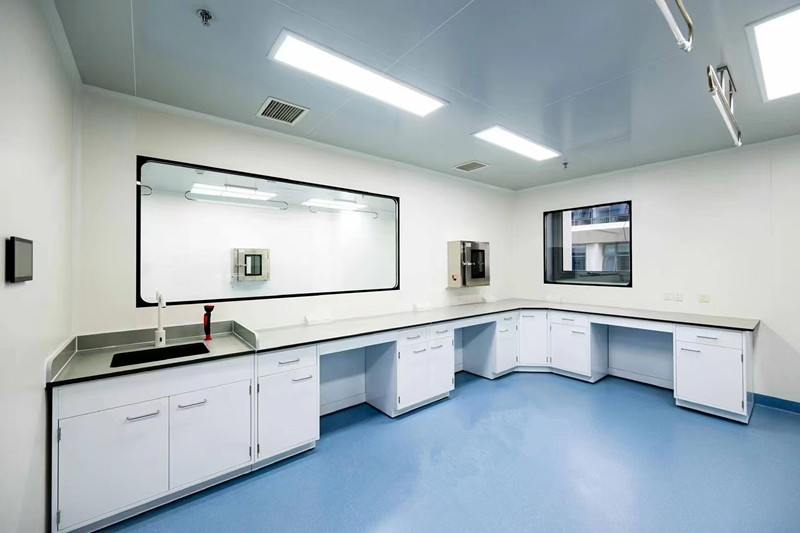

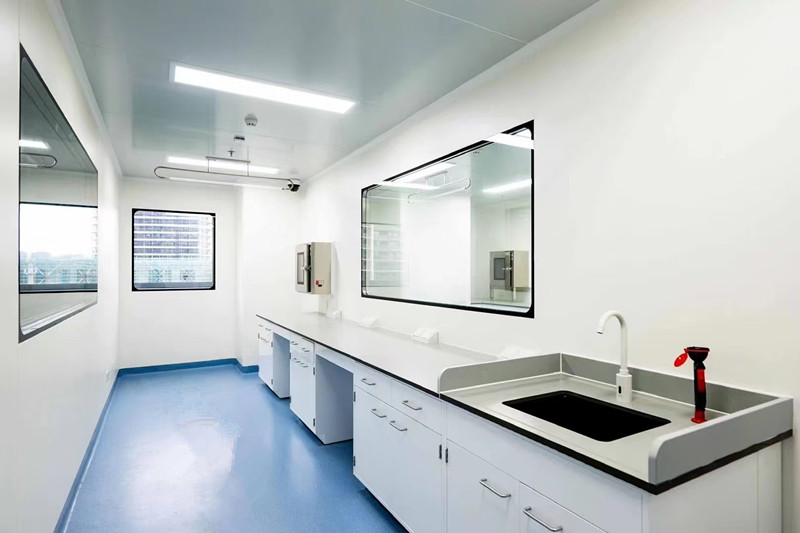

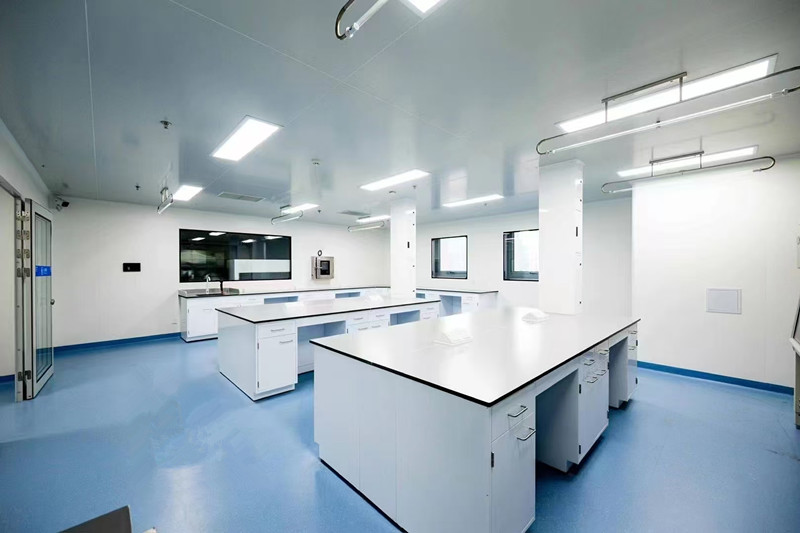

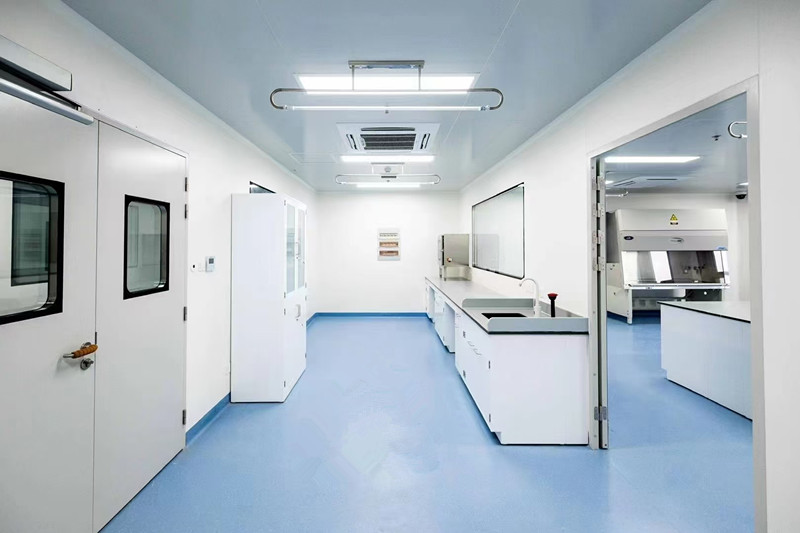

pharmaceutical clean room

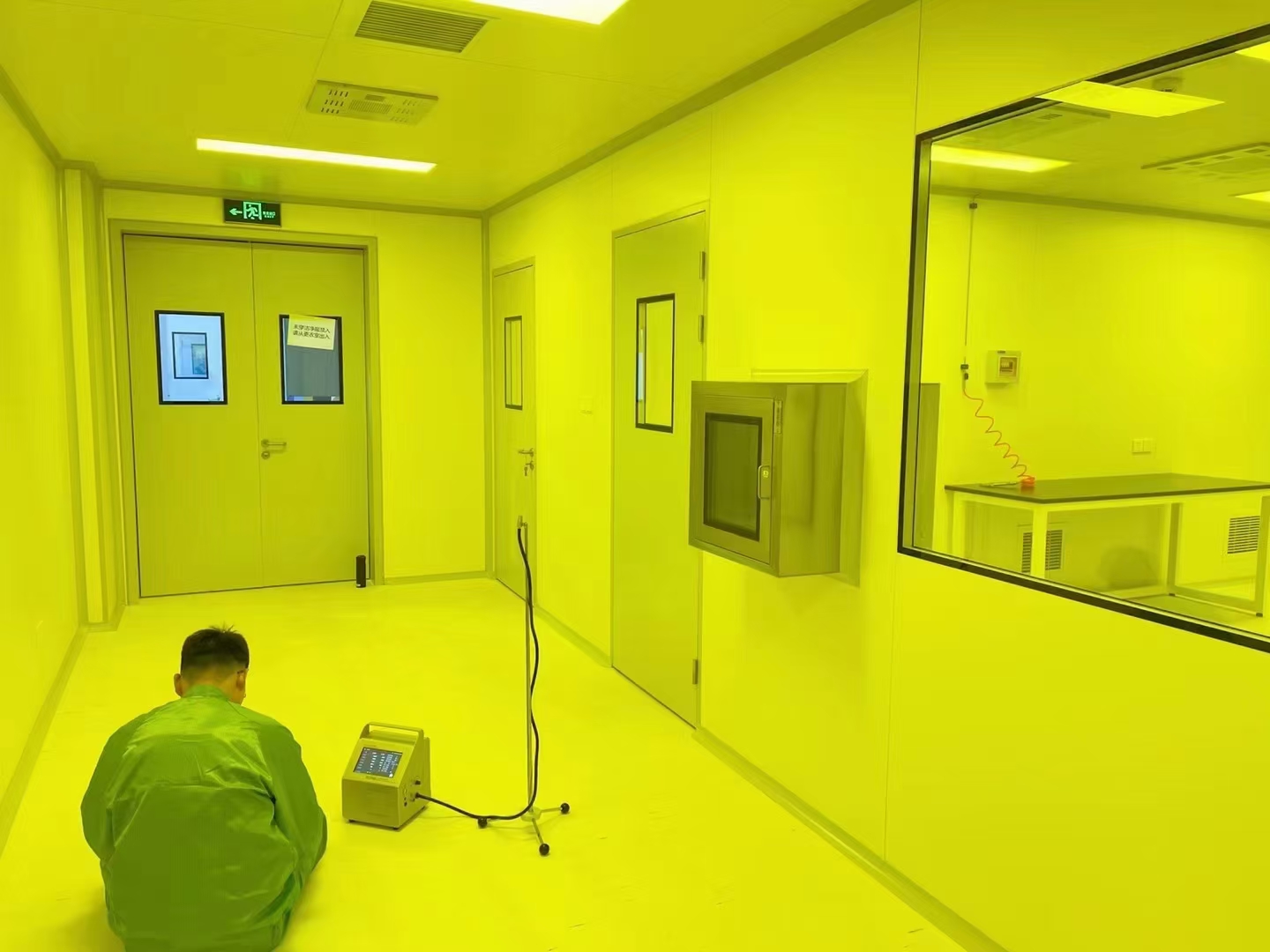

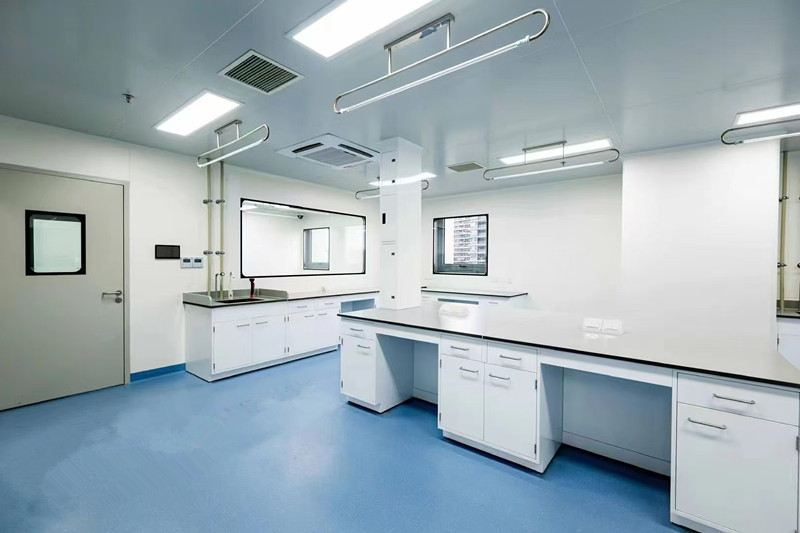

clean room project
