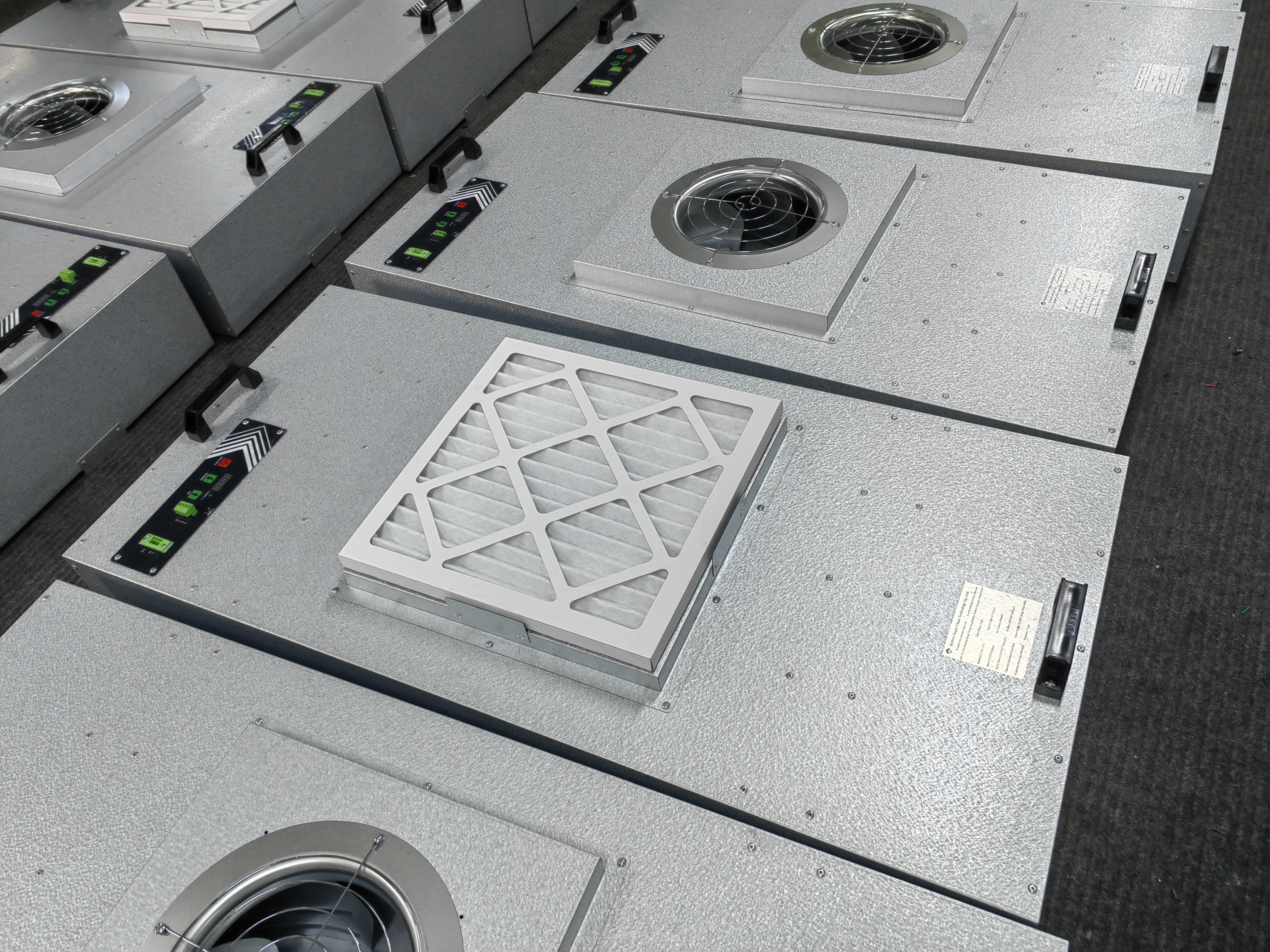

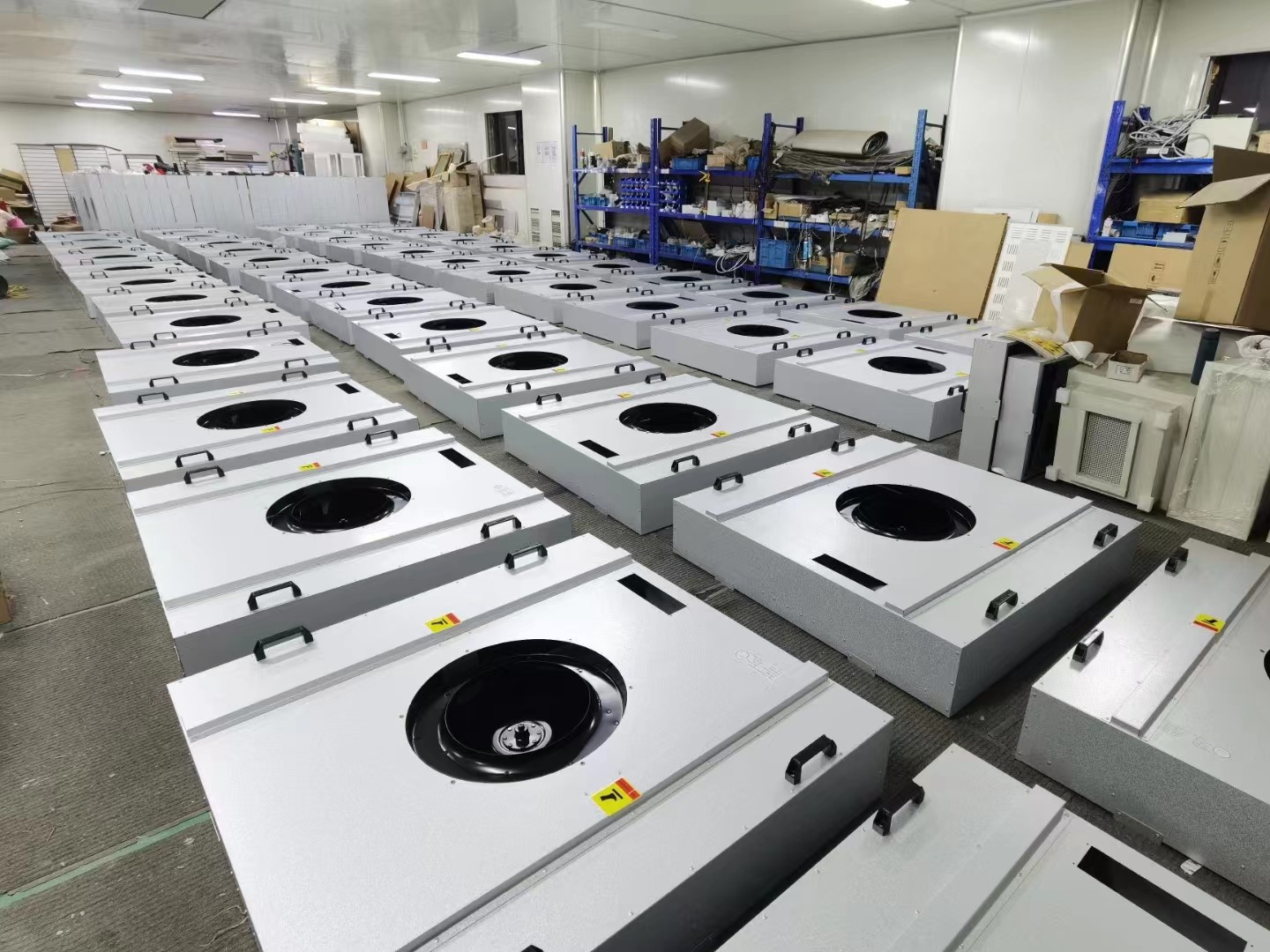

Fan filter unit can be connected in a modular manner, which is widely used in clean rooms, clean booth, clean production lines, assembled clean rooms and local class 100 clean room, etc. FFU is equipped with two levels of filtration including prefilter and hepa filter. The fan inhale air from the top of the FFU and filters it through primary and hepa filter. The clean air is sent out at a uniform speed of 0.45m/s±20% on the entire air outlet surface. Suitable for achieving high air cleanliness in various environments. It provides high-quality clean air for clean rooms and micro-environment with different sizes and cleanliness levels. In the renovation of new clean rooms and clean workshop buildings, the cleanliness level can be improved, noise and vibration can be reduced, and the cost can also be greatly reduced. It is easy to install and maintain, and is an ideal clean equipment for dust free clean room.
Model |
SCT-FFU-2'*2' |
SCT-FFU-2'*4' |
SCT-FFU-4'*4' |
Dimension(W*D*H)mm |
575*575*300 |
1175*575*300 |
1175*1175*350 |
HEPA Filter(mm) |
570*570*70, H14 |
1170*570*70, H14 |
1170*1170*70, H14 |
Air Volume(m3/h) |
500 |
1000 |
2000 |
Primary Filter(mm) |
395*395*10, G4(Optional) |
||
Air Velocity(m/s) |
0.45±20% |
||
Control Mode |
3 Gear Manual Switch/Stepless Speed Control(Optional) |
||
Case Material |
Galvanized Steel Plate/Full SUS304(Optional) |
||
Power Supply |
AC220/110V, Single Phase, 50/60Hz(Optional) |
Remark: all kinds of clean room products can be customized as actual requirement.
Lightweight and strong structure, easy to install;
Uniform air velocity and stable running;
AC and EC fan optional;
Remote control and group control available.
Widely used in mushroom, laboratory, electronic industry, food industry, cosmetic industry, etc.
