CE Standard Clean Room Gel Seal Laminar Flow Hood

Short Description:

Laminar flow hood is a kind of clean equipment to provide local clean environment, which can be flexibly installed at top side of process point that require high cleanliness. It can be used individually and also can be integrated into tie-shaped clean area together. It is mainly comprised of stainless steel or powder coated steel case, centrifugal fan, primary filter, damping layer, lamp, etc. This unit can be both suspended and supported by rack.

Air cleanliness: ISO 5(class 100)

Air Velocity: 0.45±20%m/s

Material: powder coated steel plate/full SUS304

Control Method: VFD control


Product Detail

Product Tags

Product Description

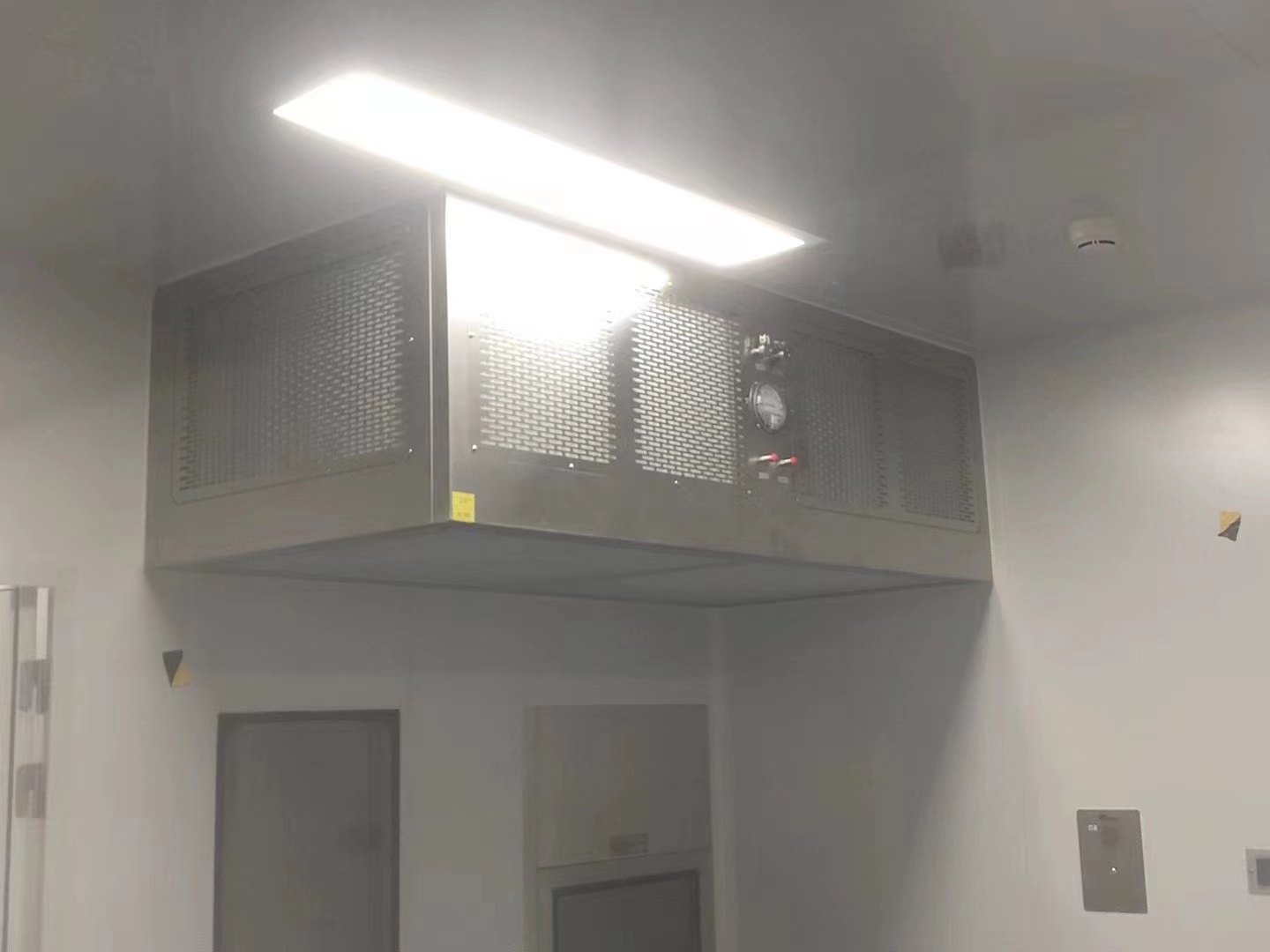

laminar flow hood

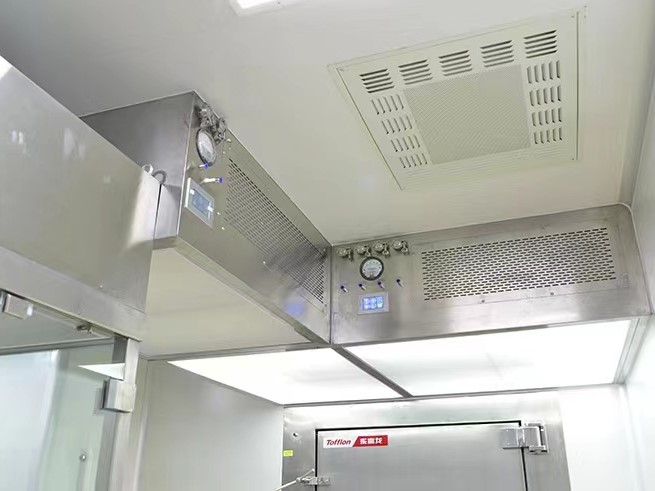

laminar air flow hood

Laminar flow hood is a kind of air clean equipment that can provide a local clean environment. It does not have a return air section and is directly discharged into the clean room. It can shield and isolate operators from the product, avoiding product contamination. When the laminar flow hood is working, air is sucked in from the top air duct or side return air plate, filtered by a hepa filter, and sent to the working area. The air below the laminar flow hood is kept at a positive pressure to prevent dust particles from entering the working area in order to protect the internal environment from pollution. It is also a flexible purification unit that can be combined to form a large isolation purification belt and can be shared by multiple units.

Technical Data Sheet

Model

SCT-LFH1200

SCT-LFH1800

SCT-LFH2400

External Dimension(W*D)(mm)

1360*750

1360*1055

1360*1360

Internal Dimension(W*D)(mm)

1220*610

1220*915

1220*1220

Air Flow(m3/h)

1200

1800

2400

HEPA Filter

610*610*90mm, 2 PCS

915*610*90mm, 2 PCS

1220*610*90mm, 2 PCS

Air Cleanliness

ISO 5(Class 100)

Air Velocity(m/s)

0.45±20%

Case Material

Stainless Steel/Powder Coated Steel Plate(Optional)

Control Method

VFD Control

Power Supply

AC220/110V, single phase, 50/60Hz(Optional)

Remark: all kinds of clean room products can be customized as actual requirement.

Product Features

Standard and customized size optional;
Stable and reliable operation;
Uniform and average air velocity;
Efficient motor and long service life HEPA filter;
Explosion-proof ffu available.

Application

Widely used in pharmaceutical industry, laboratory, food industry, electronic industry, etc.

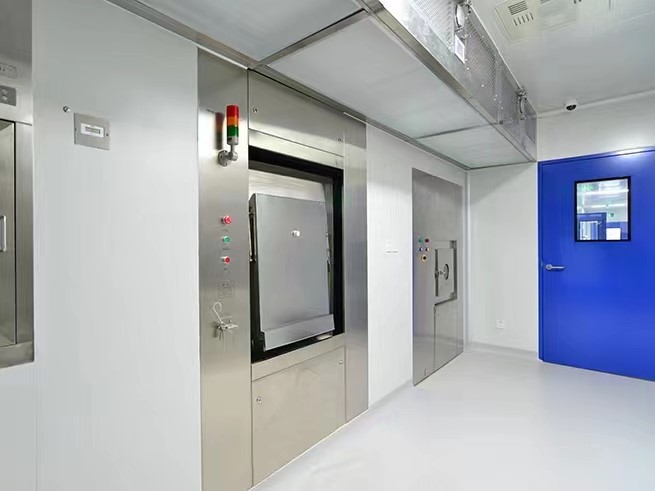

vertical laminar flow hood

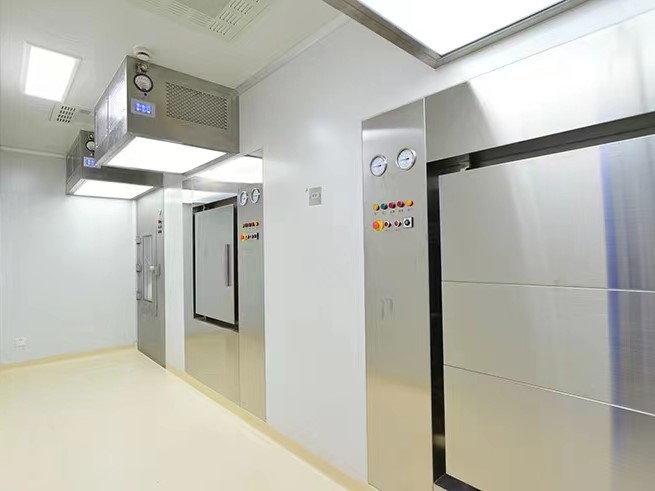

clean room hood
