CE Standard Vertical Flow Clean Bench

Short Description:

Vertical flow clean bench is a kind of general-purpose clean equipment that supplies local high cleanliness work environment. It consists of the body case, HEPA filter, air supply fan unit, SUS304 work bench and control panel etc. The body case is made of thin steel plate and its surface is powder coated.

MOQ: 1 set

Supply Ability: 1000 set per month

Price Term: EXW, FOB, CFR, CIF, DDU, etc

Port of Loading: Shanghai or any port in China

Package: PP film and wooden case or as required


Product Detail

Product Tags

Product Description

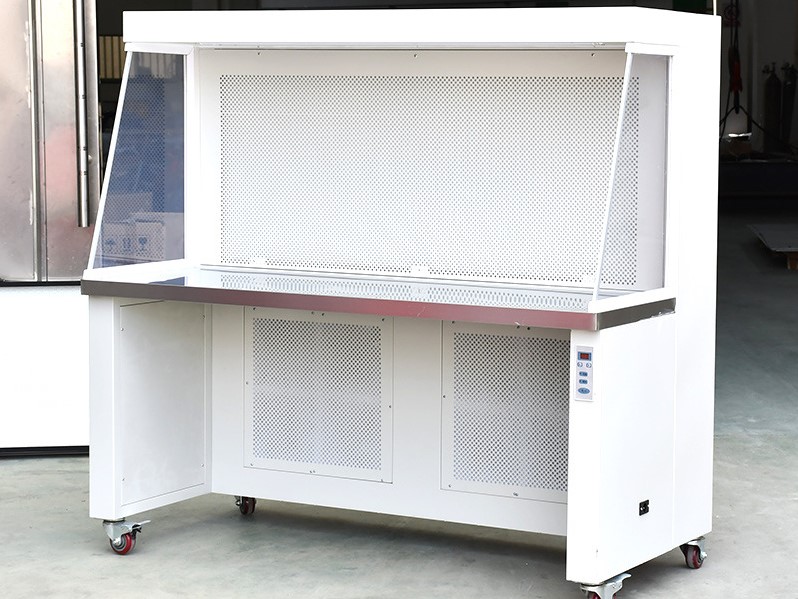

laminar air flow cabinet
laminar flow cabinet

The vertical flow clean bench has good effect in improving process condition and enhancing product quality and finished products rate. The case is made of 1.2mm cold rolled steel plate via folding, welding, assembly, etc. Its internal and external surface is powder coated after handled by anti-rust, and its SUS304 work table is assembled after being folded. The fan system can adjust air volume by 3 gear high-medium-low touch button to achieve uniform air velocity at ideal status. The front door use double 5mm tempered glass design, which can casually slide up and down with a position limit. Enclosed working area can avoid outside air to enter inside and also avoid operation unpleasant odor to do harm on people body. The bottom universal wheel make it easier to move and position.

Technical Data Sheet

Model

SCT-CB-V1000

SCT-CB-V1500

Type

Vertical Flow

Applicable Person

1

2

External Dimension(W*D*H)(mm)

1000*750*1620

1500*750*1620

Internal Dimension(W*D*H)(mm)

860*700*520

1340*700*520

Power(W)

370

750

Air Cleanliness

ISO 5(Class 100)

Air Velocity(m/s)

0.45±20%

Material

Power Coated Steel Plate Case and SUS304 Work Table/Full SUS304(Optional)

Power Supply

AC220/110V, single phase, 50/60Hz(Optional)

Remark: all kinds of clean room products can be customized as actual requirement.

Product Features

High-quality anti-corrosion SUS304 work bench;
Intelligent microcomputer controller, easy to operate;
Uniform air velocity and low noise, comfortable to work;
Equipped with efficient UV lamp and energy-saving lighting lamp.

Application

Widely used laboratory, mushroom, electronic industry, sterile packing, etc

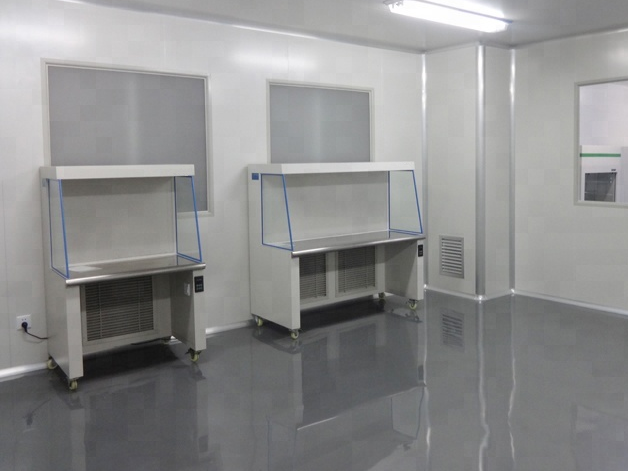

clean bench

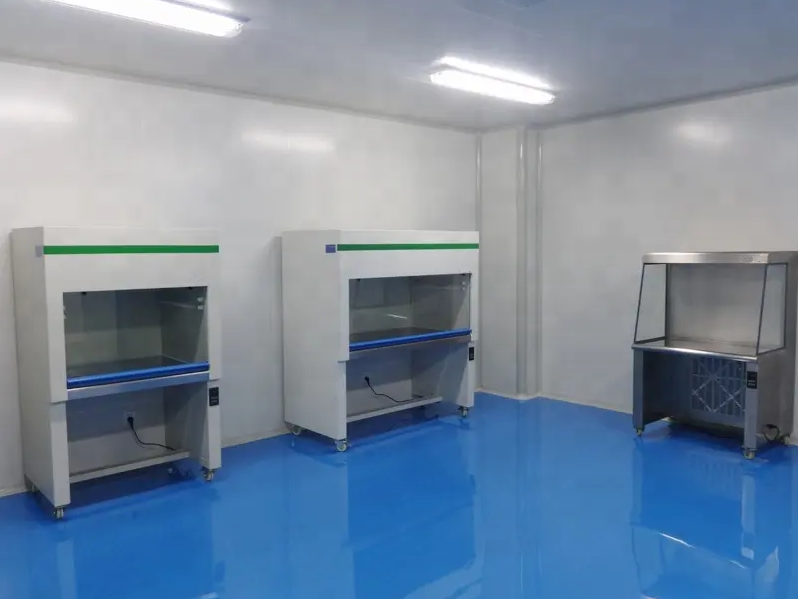

laminar flow clean bench
